Problem with NtDirect.dll since updating to 8.0.27.0 64-bit

[Galatea]

When running the program NTDirect.exe from Ninja8API.zip from here

https://ninjatrader.com/support/forum/forum/ninjatrader-8/strategy-development/100199-orders-are-not-displayed-in-chart#post793626

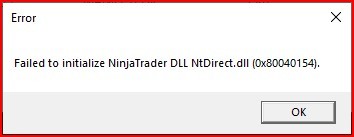

Get this error



Running NinjaTraderClient.exe from the same zip file runs fine.

The NtDirect.dll from previous version of Ninja worked fine.

Help please.

Thanks,
Jim

[NinjaTrader_BrandonH]

Hello Galatea,

Thanks for your post.

Currently, the NtDirect.dll is not working on the API. This has been reported to the Development team and they are looking into this matter.

Instead of using the NtDirect.dll you could use the NinjaTrader.Client.dll from the forum post linked below which does work without issue.

https://ninjatrader.com/support/forum/forum/ninjatrader-8/strategy-development/100199-orders-are-not-displayed-in-chart?p=793626#post793626

Please let me know if I may assist further.

[Galatea]

Has the NtDirect.dll been fixed yet? If so how do I get it?
Thanks

[NinjaTrader_BrandonH]

Hello Galatea,

Thanks for your note.

A fix for this issue has not been implemented yet. I have just been informed that this will be implemented in the next major NinjaTrader version release, R28 (8.0.28.0).

We do not have an estimated time for when the R28 will be released. That said, when this is implemented you will find information about the fix in the Release Notes section of the help guide.

Release Notes: https://ninjatrader.com/support/help...ease_notes.htm

Let me know if you have further questions.

[Jdmtrader]

Is there a way to downgrade to a previous version of NT8 to avoid the DLL issue until the fix is issued?

[NinjaTrader_BrandonH]

Hello Jdmtrader,

Thanks for your note.

You may follow the steps below to downgrade to the previous version of NinjaTrader.

• If possible, copy your license key from the Control Center > Help > License Key.
• Close all running applications.
• Navigate to your Documents folder > Right click on the 'NinjaTrader 8' folder > Rename > rename the folder to 'NinjaTrader 8 OLD'. DO NOT delete this folder.
• Uninstall NinjaTrader within Windows Control Panel.
• Reboot your PC.
• Once these steps are completed, download and install NT8 from the link below. The previous version will be found under the 'Prior Releases' section of the download page.
  • http://ninjatrader.com/PlatformDirect
• Once reinstalled, you will now have 2 NinjaTrader folders in your Documents, the old one and the new one. Open two file explorer windows and open the new one in one and the old one in another.
• Drag the following items from the old folder to the new one (folders should automatically merge)
  • Config.xml and UI.xml
  • Workspaces folder (if it asks to overwrite the _Workspaces.xml file, say yes)
  • Templates folder (if it asks to overwrite anything, say no)
  • db folder (you can overwrite any files in here)
  • bin folder (do not overwrite ANY duplicate files).
• After dragging the above items from the old folder to the new one, open the Config.xml file, locate the line in the file that says <DbType>SQLite</DbType>, change this line to <DbType>MsSqlCe</DbType>, and save the file.
• Once complete, open NinjaTrader. You may get a few initial errors. Open a NinjaScript Editor and run a compile, then, if no additional errors are received, restart NinjaTrader and try again to import the strategy.

Let me know if I can be of further assistance.

[Jdmtrader]

I am having a developer write a script to bridge orders that are created in Metatrader5 and send them to NT8 via ATM. She is having difficulty getting it to work and claims NTDirect.DLL is not 64-bit but is 32 bit. Can you confirm whether this DLL is 32 or 64 bit?

[NinjaTrader_BrandonH]

Hello Jdmtrader,

Thanks for your note.

The NTDirect.dll found in the Windows/SysWOW64 folder is unmanaged and does not target any specific .NET version or bit architecture.

It can be used with 64-bit applications and an unsupported example of using the NTDirect.dll for a 64-bit application could be found on the forum thread below.

https://ninjatrader.com/support/foru...626#post793626

The managed NinjaTrader.Client.dll has both 32-bit and 64-bit versions that target .NET 4.8 in NinjaTrader 8.0.26.1. This information could be found in the forum thread linked above.

Please let me know if I may assist further.

[Jdmtrader]

My developer said, the 64 bit isn't the kind MetaTrader5 needs. The DLL files are not 64 bit versions. Their mention of 64 bit is referring to parameter and character assignments. Is this true?

[NinjaTrader_BrandonH]

Hello Jdmtrader,

Thanks for your note.

As stated in my previous reply, the NTDirect.dll doesn't target a specific bit architecture (64-bit or 32-bit).

This could be used for 64-bit applications or 32-bit applications. That said, if the developer needs to use a 64-bit specific API, they could use the NinjaTrader.Client.dll (64-bit) noted in the forum thread linked in post # 8. Note that NinjaTrader.Client.dll targets .NET 4.8.

Please let me know if I may assist further.

[Jdmtrader]

My developer said that not targeting a 64-bit architecture specifically by NTDirect.DLL prohibits MetaTrader 5 from communicating with NT8, since NT8 expects unmanaged or native code through this DLL. And, the NinjaTrader.Client.dll referred to as being 64-bit is targeted at .NET programs, not native code. MT5 don't work directly with .NET code, so it can't see it as 64-bit or 32-bit. It is seen as managed code. This is my situation. If anyone could please help me find another way to make this work.

[NinjaTrader_BrandonH]

Hello Jdmtrader,

Thanks for your note.

Our Development team is currently looking into the matter regarding NTDirect.dll and we will provide more information as soon as it is available.

Thank you for your patience.

[Galatea]

Has this issue with NtDirect.dll been fixed in version 8.1.1.0?

[NinjaTrader_BrandonH]

Hello Galatea,

Thanks for your note.

The NTDirect.dll has not been fixed yet for NinjaTrader 8 version 8.1.1.0.

When a fix is implemented for this you will find a note about it in the Release Notes section of the help guide.

Release Notes: https://ninjatrader.com/support/help...ease_notes.htm

Please let me know if I may further assist you.
