I have written a simple indicator works same as OBV, but with multicolor view and some addons
I want to connect high/low pivots on OBV indicator together, if new high pivot is higher than previous high pivot it should connect by green line if lower connect by red line
here is indicator code

        private int prevSWH = -1;
        private int prevSWL = -1;

        protected override void OnStateChange()
        {
            if (State == State.SetDefaults)
            {
                Description                                    = @"TheMavisV3.0";
                Name                                        = "MavisNT";
                Calculate                                    = Calculate.OnEachTick;
                IsOverlay                                    = false;
                DisplayInDataBox                            = true;
                DrawOnPricePanel                            = true;
                DrawHorizontalGridLines                        = true;
                DrawVerticalGridLines                        = true;
                PaintPriceMarkers                            = true;
                ScaleJustification                            = NinjaTrader.Gui.Chart.ScaleJustification.Right;
                //Disable this property if your indicator requires custom values that cumulate with each new market data event.
                //See Help Guide for additional information.
                IsSuspendedWhileInactive                    = true;
                AddPlot(Brushes.Transparent, "OBV");
                AddPlot(Brushes.Black, "OBV_UP");
                AddPlot(Brushes.Magenta, "OBV_DN");
                AddPlot(new Stroke(Brushes.Green, DashStyleHelper.Solid, 2), PlotStyle.TriangleDown, "SWH_UP");
                AddPlot(Brushes.Red, "SWH_DN");
                AddPlot(Brushes.Green, "SWL_UP");
                AddPlot(Brushes.Red, "SWL_DN");
                Plots[1].Width=2;
                Plots[2].Width=2;
            }
            else if (State == State.Configure)
            {
            }
        }
​
        protected override void OnBarUpdate()
        {
            //Add your custom indicator logic here.
            double volume0 = Instrument.MasterInstrument.InstrumentType == InstrumentType.CryptoCurrency ? Core.Globals.ToCryptocurrencyVolume((long)Volume[0]) : Volume[0];
            if (CurrentBar == 0)
            {
                OBV[0]=volume0;
                OBV_UP[0]=volume0;
                OBV_DN[0]=volume0;
                SWH_UP[0]=0;
                SWH_DN[0]=0;
                SWL_UP[0]=0;
                SWL_DN[0]=0;
                prevSWH=-1;
                prevSWL=-1;
            }
            else
            {
                if ((High[0]-Open[0])>(Open[0]-Low[0])) OBV[0]=OBV[1]+volume0;
                else if ((High[0]-Open[0])<(Open[0]-Low[0])) OBV[0]=OBV[1]-volume0;
                else OBV[0]=OBV[1];
                OBV_UP[0]=OBV[0];
                OBV_DN[0]=OBV[0];
                if (IsRising(OBV))
                {
                    PlotBrushes[1][0]=Brushes.Black;
                    PlotBrushes[2][0]=Brushes.Transparent;
                }
                else if (IsFalling(OBV))
                {
                    PlotBrushes[1][0]=Brushes.Transparent;
                    PlotBrushes[2][0]=Brushes.Magenta;
                }
                else
                {
                    PlotBrushes[1][0]=PlotBrushes[1][1];
                    PlotBrushes[2][0]=PlotBrushes[2][1];
                }
                if (CurrentBar>3)
                {
                    if (OBV[2]>OBV[3] && OBV[2]>OBV[1] && prevSWH!=CurrentBar-2)
                    {
                        if (prevSWH!=-1 && OBV[2]>=OBV[CurrentBar-prevSWH])
                        {
                            SWH_UP[2]=OBV[2];
                            SWH_UP[CurrentBar-prevSWH]=OBV[CurrentBar-prevSWH];
                        }
                        else if (prevSWH!=-1 && OBV[2]<=OBV[CurrentBar-prevSWH])
                        {
                            SWH_DN[2]=OBV[2];
                            SWH_DN[CurrentBar-prevSWH]=OBV[CurrentBar-prevSWH];
                        }
                        prevSWH = CurrentBar-2;
                    }
                }
            }
        }
​

normally I expect I can do it with line plot style, when I choose plot style as Dot, i can see green dots on pivots like image below, but when I choose plot style as line, no line is drawing, I noticed lines only draw when indicator values are on consecutive candles, but lines are not drawing at all when we have buffers filled with some candles between two pivot points



image below show how indicator looks like when I choose Line style for that plot (there is no line drawn)

this is part of coed that handles detecting pivots and filling related data series

                if (CurrentBar>3)
                {
                    if (OBV[2]>OBV[3] && OBV[2]>OBV[1] && prevSWH!=CurrentBar-2)
                    {
                        if (prevSWH!=-1 && OBV[2]>=OBV[CurrentBar-prevSWH])
                        {
                            SWH_UP[2]=OBV[2];
                            SWH_UP[CurrentBar-prevSWH]=OBV[CurrentBar-prevSWH];
                        }
                        else if (prevSWH!=-1 && OBV[2]<=OBV[CurrentBar-prevSWH])
                        {
                            SWH_DN[2]=OBV[2];
                            SWH_DN[CurrentBar-prevSWH]=OBV[CurrentBar-prevSWH];
                        }
                        prevSWH = CurrentBar-2;
                    }
                }
​

[NinjaTrader_ChelseaB]

Hello tidicofx,

This is correct, with plot style line a line will only be drawn between two segments if there are two segments that are consecutive.

If not all bars are being set a value, to see the line you could choose set the value to the previous bars value to ensure every bar has a value.
Below is a link to an example that does something similar.

https://ninjatrader.com/support/forum/forum/ninjatrader-8/indicator-development/105828-indicator-accessing-multiple-time-frame?p=820196#post820196

[tidicofx]

I try to make it more simple

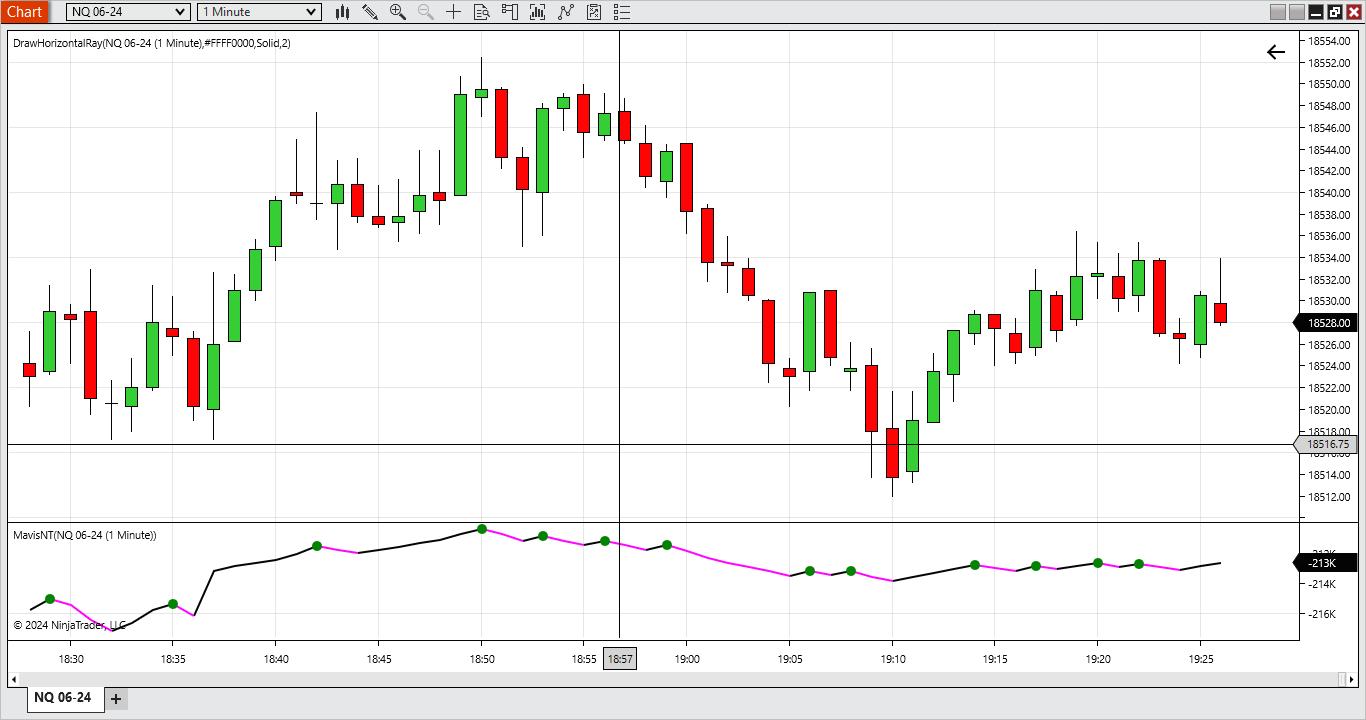

suppose I have written an Indicator that marks pivots on indicator like image below

now I need to add new plot that connect these dots together with line
how this new plot can be? I have tried with line style but it does not work
here is my code

        private int prevSWH = -1;
        private int prevSWL = -1;

        protected override void OnStateChange()
        {
            if (State == State.SetDefaults)
            {
                Description                                    = @"TheMavisV3.0";
                Name                                        = "MavisNT";
                Calculate                                    = Calculate.OnEachTick;
                IsOverlay                                    = false;
                DisplayInDataBox                            = true;
                DrawOnPricePanel                            = true;
                DrawHorizontalGridLines                        = true;
                DrawVerticalGridLines                        = true;
                PaintPriceMarkers                            = true;
                ScaleJustification                            = NinjaTrader.Gui.Chart.ScaleJustification.Right;
                //Disable this property if your indicator requires custom values that cumulate with each new market data event.
                //See Help Guide for additional information.
                IsSuspendedWhileInactive                    = true;
                AddPlot(Brushes.Transparent, "OBV");
                AddPlot(Brushes.Black, "OBV_UP");
                AddPlot(Brushes.Magenta, "OBV_DN");
                AddPlot(new Stroke(Brushes.Green, DashStyleHelper.Solid, 4), PlotStyle.Dot, "SWH");
                AddPlot(new Stroke(Brushes.Green, DashStyleHelper.Solid, 1), PlotStyle.Line, "SWH_Line");
                AddPlot(Brushes.Green, "SWL_UP");
                AddPlot(Brushes.Red, "SWL_DN");
                Plots[1].Width=2;
                Plots[2].Width=2;
            }
            else if (State == State.Configure)
            {
            }
        }

        protected override void OnBarUpdate()
        {
            //Add your custom indicator logic here.
            double volume0 = Instrument.MasterInstrument.InstrumentType == InstrumentType.CryptoCurrency ? Core.Globals.ToCryptocurrencyVolume((long)Volume[0]) : Volume[0];
            if (CurrentBar == 0)
            {
                OBV[0]=volume0;
                OBV_UP[0]=volume0;
                OBV_DN[0]=volume0;
                SWH[0]=0;
                SWH_Line[0]=0;
                SWL_UP[0]=0;
                SWL_DN[0]=0;
                prevSWH=-1;
                prevSWL=-1;
            }
            else
            {
                if ((High[0]-Open[0])>(Open[0]-Low[0])) OBV[0]=OBV[1]+volume0;
                else if ((High[0]-Open[0])<(Open[0]-Low[0])) OBV[0]=OBV[1]-volume0;
                else OBV[0]=OBV[1];
                OBV_UP[0]=OBV[0];
                OBV_DN[0]=OBV[0];
                if (IsRising(OBV))
                {
                    PlotBrushes[1][0]=Brushes.Black;
                    PlotBrushes[2][0]=Brushes.Transparent;
                }
                else if (IsFalling(OBV))
                {
                    PlotBrushes[1][0]=Brushes.Transparent;
                    PlotBrushes[2][0]=Brushes.Magenta;
                }
                else
                {
                    PlotBrushes[1][0]=PlotBrushes[1][1];
                    PlotBrushes[2][0]=PlotBrushes[2][1];
                }
                if (CurrentBar>3)
                {
                    if (OBV[2]>OBV[3] && OBV[2]>OBV[1] && prevSWH!=CurrentBar-2)
                    {
                        SWH[2]=OBV[2];
                        SWH_Line[2]=OBV[2];
                        prevSWH = CurrentBar-2;
                    }
                }
            }
        }
​

[tidicofx]

Hello tidicofx,

This is correct, with plot style line a line will only be drawn between two segments if there are two segments that are consecutive.

If not all bars are being set a value, to see the line you could choose set the value to the previous bars value to ensure every bar has a value.
Below is a link to an example that does something similar.
https://ninjatrader.com/support/foru...196#post820196

sorry I missed your message
let me study your link
thanks

[tidicofx]

ok, I look at your link, it does not seem to be what I am going to do

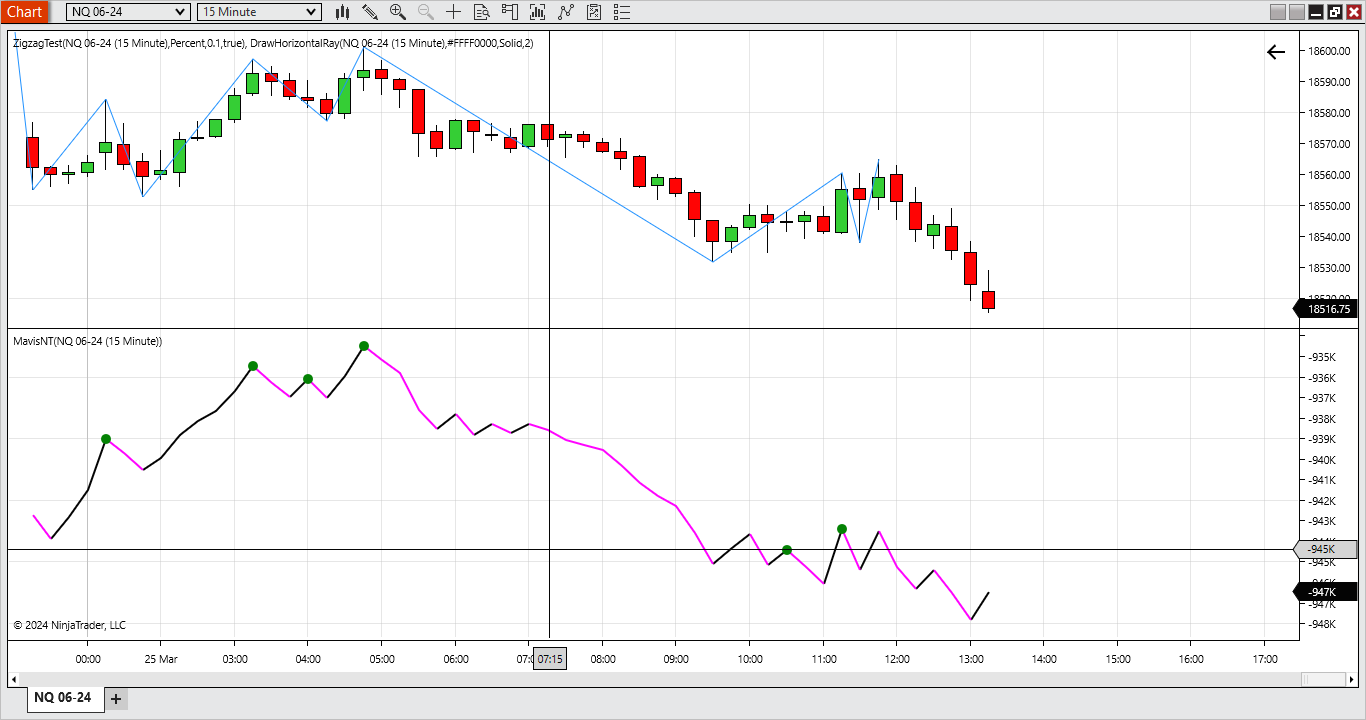

I believe this is what happening in zigzag indicator, as you see zigzag indicator has lines connecting different candles together with some candles between with no value
I have studied zigzag indicator code, but I dont see any difference between that code and what I did
what you suggested "to see the line you could choose set the value to the previous bars value to ensure every bar has a value" makes chart look like this that is different from what I need

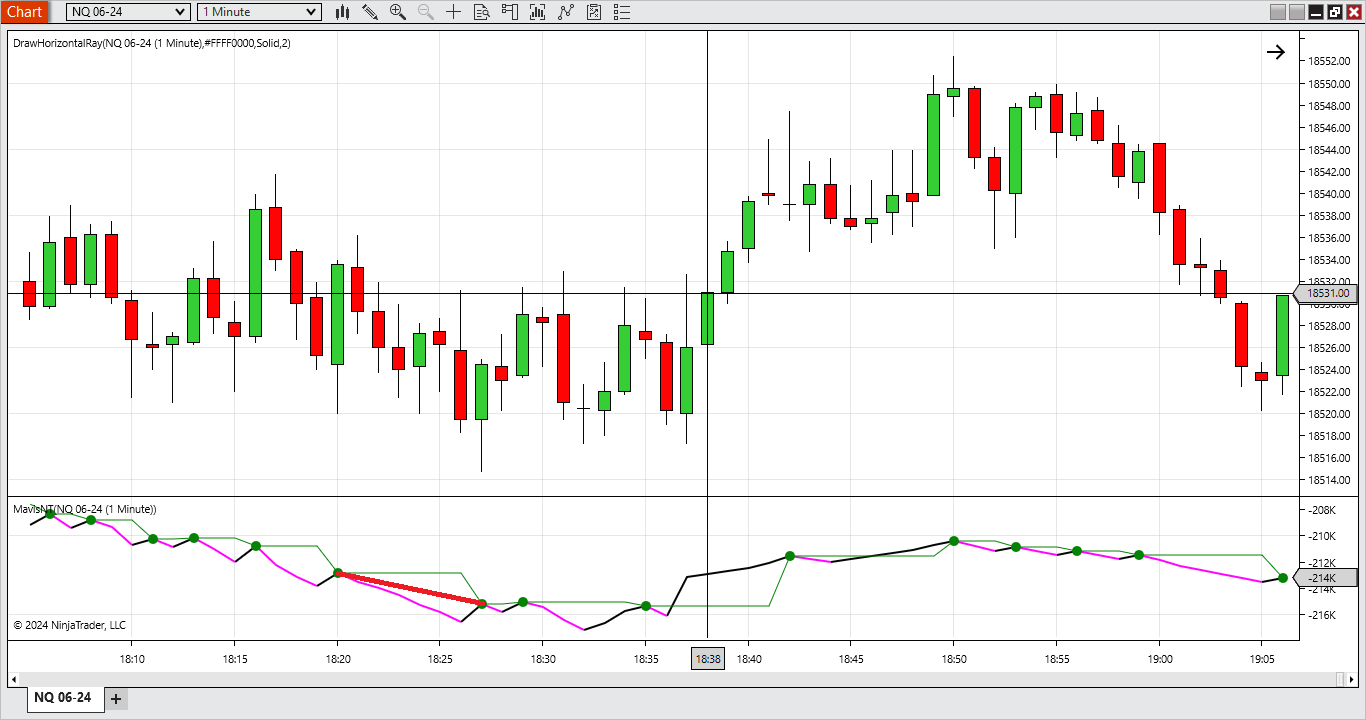

look at green lines, i dont want it to look that way, I have drawn a straight red line myself, that is how I want to connect dots, same way zigzag is working

[NinjaTrader_ChelseaB]

Hello tidicofx,

Some value needs to be set on the bars where no value is being set.

Setting to the previous bars value does cause a stair step.
If you want a diagonal line you would need to calculate a value such as start price plus (start price - end price) / number of bars.

Or you could custom render lines or a geometry path in OnRender().

https://ninjatrader.com/support/helpGuides/nt8/rendering.htm

https://ninjatrader.com/support/helpGuides/nt8/sharpdx_direct2d1_rendertarget_drawgeometry.htm
https://ninjatrader.com/support/helpGuides/nt8/sharpdx_direct2d1_rendertarget_drawline.htm

[tidicofx]

Hello tidicofx,

Some value needs to be set on the bars where no value is being set.

Setting to the previous bars value does cause a stair step.
If you want a diagonal line you would need to calculate a value such as start price plus (start price - end price) / number of bars.

Or you could custom render lines or a geometry path in OnRender().

https://ninjatrader.com/support/helpGuides/nt8/rendering.htm

https://ninjatrader.com/support/helpGuides/nt8/sharpdx_direct2d1_rendertarget_drawgeometry.htm
https://ninjatrader.com/support/helpGuides/nt8/sharpdx_direct2d1_rendertarget_drawline.htm

thanks you for quick reply
Ok, I got the restriction, anyway I think this is not good that this option is not in NT as default option (possibility to connect lines from different candles (not consecutive)), in other platforms it is a basic option
as you suggested I think best solution is to calculate intermediate values from start and end candle values and fill values accordingly
