Murrey Math Lines - Can't use Extended Lines

[zivvv]

Hi

I've developed a Murrey Math lines indicator.
It is working fine but I want it to show me the most relevant MML (not historical) and show them as extended horizontal lines.
However I can't do it.
Something with the way I try to draw the lines does not work
Draw.ExtendedLine(this, "MMLExtLine" + j, CurrentBar - 1, Values[j][1], CurrentBar + 20, Values[j][1], Plots[j].Brush);

using System;
using NinjaTrader.Cbi;
using NinjaTrader.Gui.Tools;
using NinjaTrader.NinjaScript;
using NinjaTrader.Data;
using NinjaTrader.Gui.Chart;
using System.Windows.Media;
using NinjaTrader.NinjaScript.DrawingTools;

namespace NinjaTrader.NinjaScript.Indicators
{
    public class MML : Indicator
    {
        private double FrameMultiplier { get; set; } // Made this private for encapsulation
        private int FrameSize { get; set; }          // Made this private for encapsulation


        protected override void OnStateChange()
        {
            if (State == State.SetDefaults)
            {
                Description = @"Draws Murrey Math Lines.";
                Name = "MML";
                IsOverlay = true; // To display on the main chart

                FrameMultiplier = 1.5;
                FrameSize = 64;

                AddPlot(Brushes.Silver, "+3/8 - Imminent Bearish reversal");
                AddPlot(Brushes.Red, "+2/8 Extreme Overshot");
                AddPlot(Brushes.Red, "+1/8 Overshot");
                AddPlot(Brushes.Aqua, "8/8 Ultimate resistance");
                AddPlot(Brushes.Orange, "7/8 Weak stop ^ Reverse");
                AddPlot(Brushes.Fuchsia, "6/8 Strong pivot reverse");
                AddPlot(Brushes.Green, "5/8 Top of trading range");
                AddPlot(Brushes.Aqua, "4/8 Major S/R");
                AddPlot(Brushes.Green, "3/8 Bottom of trading range");
                AddPlot(Brushes.Fuchsia, "2/8 Strong pivot reverse");
                AddPlot(Brushes.Orange, "1/8 Weak Stop Reverse");
                AddPlot(Brushes.Aqua, "0/8 Ultimate support");
                AddPlot(Brushes.Green, "-1/8 Oversold");
                AddPlot(Brushes.Green, "-2/8 Extreme Oversold");
                AddPlot(Brushes.Silver, "-3/8 Imminent Bullish reversal");
            }
            else if (State == State.Configure)
            {
                 // Currently Empty - can add configuration code if needed later
            }
        }

        protected override void OnBarUpdate()
{
    if (CurrentBar < FrameSize) return; // Ensure there's enough data

    double highestHigh = High[HighestBar(High, FrameSize)];
    double lowestLow = Low[LowestBar(Low, FrameSize)];

    double range = highestHigh - lowestLow;
    double step = range / 8.0;

    // Set current values only for the latest bar based on the calculations
    Values[0][0] = highestHigh + 3 * step;
    Values[1][0] = highestHigh + 2 * step;
    Values[2][0] = highestHigh + step;
    Values[3][0] = highestHigh;
    Values[4][0] = highestHigh - step;
    Values[5][0] = highestHigh - 2 * step;
    Values[6][0] = highestHigh - 3 * step;
    Values[7][0] = highestHigh - 4 * step;
    Values[8][0] = lowestLow + 3 * step;
    Values[9][0] = lowestLow + 2 * step;
    Values[10][0] = lowestLow + step;
    Values[11][0] = lowestLow;
    Values[12][0] = lowestLow - step;
    Values[13][0] = lowestLow - 2 * step;
    Values[14][0] = lowestLow - 3 * step;

    // If it's the last bar on the chart, draw the extended line to the right for all MML
    if (Bars.IsLastBarOfSession)
    {
        for (int j = 0; j <= 14; j++)
        {
            // Draw an extended line using the current bar's date and the corresponding MML value
            // Using the plot's brush for color
            Draw.ExtendedLine(this, "MMLExtLine" + j, CurrentBar - 1, Values[j][1], CurrentBar + 20, Values[j][1], Plots[j].Brush);
        }
    }

    // Clear previous values from the second last bar onward
    for (int j = 0; j <= 14; j++)
    {
        Values[j][2] = double.NaN;
    }
}




    }
}

#region NinjaScript generated code. Neither change nor remove.

namespace NinjaTrader.NinjaScript.Indicators
{
    public partial class Indicator : NinjaTrader.Gui.NinjaScript.IndicatorRenderBase
    {
        private MML[] cacheMML;
        public MML MML()
        {
            return MML(Input);
        }

        public MML MML(ISeries<double> input)
        {
            if (cacheMML != null)
                for (int idx = 0; idx < cacheMML.Length; idx++)
                    if (cacheMML[idx] != null &&  cacheMML[idx].EqualsInput(input))
                        return cacheMML[idx];
            return CacheIndicator<MML>(new MML(), input, ref cacheMML);
        }
    }
}

namespace NinjaTrader.NinjaScript.MarketAnalyzerColumns
{
    public partial class MarketAnalyzerColumn : MarketAnalyzerColumnBase
    {
        public Indicators.MML MML()
        {
            return indicator.MML(Input);
        }

        public Indicators.MML MML(ISeries<double> input )
        {
            return indicator.MML(input);
        }
    }
}

namespace NinjaTrader.NinjaScript.Strategies
{
    public partial class Strategy : NinjaTrader.Gui.NinjaScript.StrategyRenderBase
    {
        public Indicators.MML MML()
        {
            return indicator.MML(Input);
        }

        public Indicators.MML MML(ISeries<double> input )
        {
            return indicator.MML(input);
        }
    }
}

#endregion
​

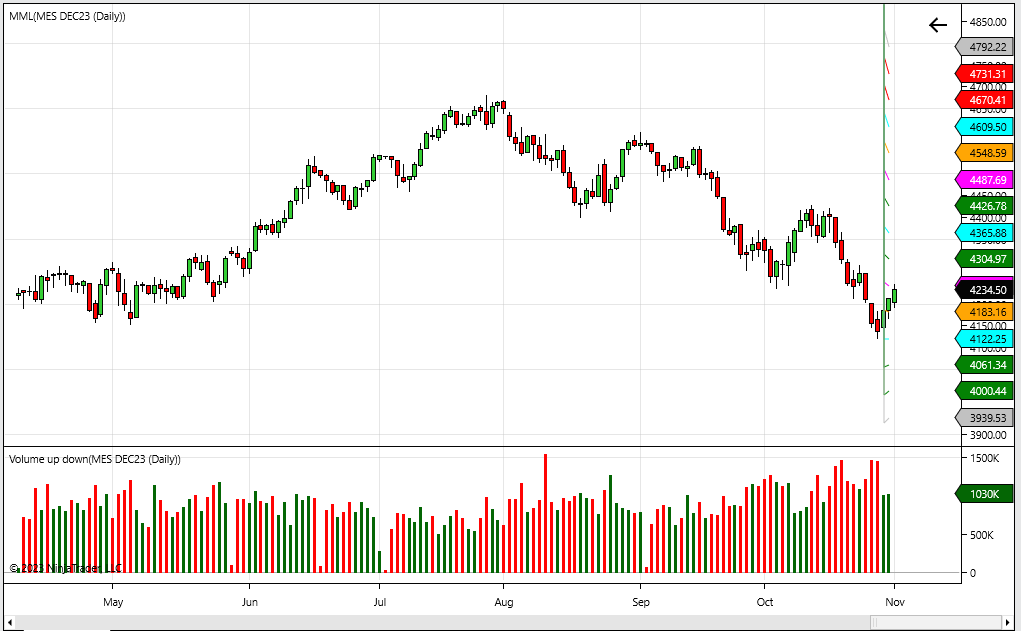

As can be seen it is working (btw if you like to see historical MML you can remove the loop that clears old historical data).

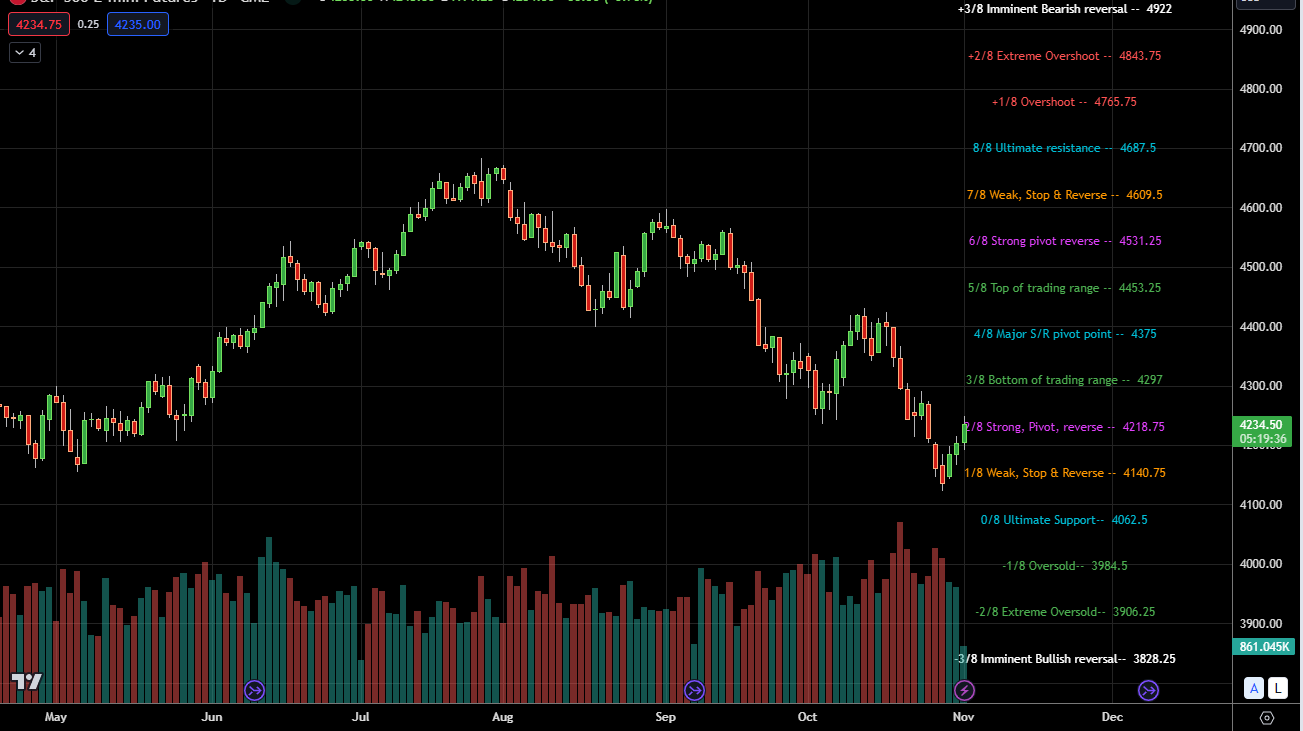

The idea is to do it like TradingView indicator



Meaning the MML will extend to the right and also show their text and value.
How can I do it?

Thank you

[NinjaTrader_Emily]

Hello zivvv,

Thank you for your post.

Is an Extended Line the proper tool for what you are looking to achieve? It seems you are using the same startY and endY value of 'Values[j][1]' - if you want a line that stays at the same y value and extends in both directions, you could use a horizontal line object:

https://ninjatrader.com/support/helpGuides/nt8/draw_horizontalline.htm

As for a label with text and the value, you could consider using the custom labeled lines drawing tool, which also includes NinjaScript overloads to draw the lines programmatically. This script is publicly available on our NinjaTrader Ecosystem website:

• https://ninjatraderecosystem.com/use...-drawing-tool/

Here is a basic guideline of how to import NinjaScript add-ons in NinjaTrader 8:

Note — To import NinjaScripts you will need the original .zip file.

To Import:

1. Download the NinjaScripts to your desktop, keep them in the compressed .zip file.
2. From the Control Center window select the menu Tools > Import > NinjaScript Add-on...
3. Select the downloaded .zip file
4. NinjaTrader will then confirm if the import has been successful.

Critical - Specifically for some NinjaScripts, it will prompt that you are running newer versions of @SMA, @EMA, etc. and ask if you want to replace, press 'No'

Once installed, you may add the indicator to a chart by:

• Right-click your chart > Indicators... > Select the Indicator from the 'Available' list on the left > Add > OK

Here is a short video demonstration of the import process:

• Install a 3rd Party Indicator or App

Please let me know if I can be of further assistance.

The NinjaTrader Ecosystem website is for educational and informational purposes only and should not be considered a solicitation to buy or sell a futures contract or make any other type of investment decision. The add-ons listed on this website are not to be considered a recommendation and it is the reader's responsibility to evaluate any product, service, or company. NinjaTrader Ecosystem LLC is not responsible for the accuracy or content of any product, service or company linked to on this website.

[zivvv]

Thank you

But this didn't help much.
I've tried all the combinations possible with
Draw.ExtendedLine(this, "MMLExtLine" + j, CurrentBar - 1, Values[j][1], CurrentBar + 20, Values[j][10], Plots[j].Brush);

It still stays the same

I've also tried
Draw.HorizontalLine(this, "MMLExtLine" + j, Values[j][1], Plots[j].Brush, DashStyleHelper.Solid, 2, true);

It does produce an horizontal line but it does not extend to the right as I want.

[NinjaTrader_Emily]

Hello zivvv,

Thank you for your reply.

Drawing tools have limitations, especially when attempting to extend/draw into the future. In order to have more control over how the lines and labels are displayed on your chart, you could also consider using OnRender() to custom render the information onto your chart. For more details, please see the following links:

• https://ninjatrader.com/support/help..._rendering.htm
• https://ninjatrader.com/support/help...8/onrender.htm

There is also an indicator called "Sample custom render" that comes with NinjaTrader by default. You could review this indicator to see how it achieves custom rendering and the source code is available in the NinjaScript Editor as a learning resource.

Please let us know if we may be of further assistance.
