Auto Draw Horizontal Lines (2 different colors) based on CSV or txt file

[NinjaTrader_Emily]

Hello fripi,

Thank you for your screenshot.

The current errors seem to be a matter of syntax. The method should use .Freeze() and you are missing the parenthesis. The example in the help guide is as follows:

// initiate new solid color brush which has an alpha (transparency) value of 100
myBrush = new SolidColorBrush(Color.FromArgb(100, 56, 120, 153));
myBrush.Freeze();

Draw.Line(this, "tag1", true, 10, 1000, 0, 1001, myBrush, DashStyleHelper.Dot, 2);​

Please add () to your use of Freeze in lines 63 and 64 and this should resolve the errors. The .Freeze() method is a general C# concept and is not specific to NinjaTrader. More information may be found at the following publicly available link:

https://learn.microsoft.com/en-us/dotnet/api/system.windows.freezable.freeze?view=netframework-4.8&redirectedfrom=MSDN#System_Windows_Freezable_Freeze

Please let us know if we may be of further assistance.

[fripi]

OMG ok sorry missed that, no errors anymore and output changed :

Indicator 'RGBPriceLines': Error on calling 'OnStateChange' method: The calling thread cannot access this object because a different thread owns it.
​

I tried some Print and it stops at

_resColor.Freeze();
                _resColor2.Freeze();​

[NinjaTrader_Emily]

OMG ok sorry missed that, no errors anymore and output changed :

Indicator 'RGBPriceLines': Error on calling 'OnStateChange' method: The calling thread cannot access this object because a different thread owns it.
​

I tried some Print and it stops at

_resColor.Freeze();
_resColor2.Freeze();​

I see now that the error happens even when using the snippet I previously provided; I apologize for the inconvenience. The following updated snippet should work, and I have also edited my post number 10 previously on this thread to include this updated snippet:

private Brush _myColor;
private Brush _myColor2;
​
protected override void OnStateChange()
{

else if (State == State.DataLoaded)
{
_myColor = new SolidColorBrush(Color.FromArgb(80, 255, 70, 0));
_myColor2 = new SolidColorBrush(Color.FromArgb(50, 255, 70, 0));​​
​ _myColor.Freeze();
_myColor2.Freeze();​
}
}​

Thanks again for your time and patience.

[fripi]

That works great !
I just added the reading of a second file to add my support lines, maybe not the most elegant code but it works !

Now is it possible to trace those lines on all charts of the same instrument ? I read something about isGlobal but when I try to add any more arguments to my Draw.HorizontalLine it says "no overload for method 'HorizontalLine' takes 8 arguments"

[NinjaTrader_Emily]

That works great !
I just added the reading of a second file to add my support lines, maybe not the most elegant code but it works !

Now is it possible to trace those lines on all charts of the same instrument ? I read something about isGlobal but when I try to add any more arguments to my Draw.HorizontalLine it says "no overload for method 'HorizontalLine' takes 8 arguments"

In order to draw a global horizontal line, you must use the syntax on this page that contains the bool isGlobal:

https://ninjatrader.com/support/helpGuides/nt8/draw_horizontalline.htm

Then, if you want to programmatically set the colors still, you will actually need to set the stroke for the object in the same way as the snippet on this page, which saves the line to a variable when it is drawn and then changes the stroke for the myLine object:

https://ninjatrader.com/support/helpGuides/nt8/horizontalline.htm

Thank you for your time and patience.

[fripi]

Well everything was going really well until I update NT to 8.1.2.0...
When loading it told me I had to recompile some thing, as I only had 1 personnal code I knew it was this one, and now I got 4 errors, all the same :

Unexpected character " CS1056

for line 67 and 71, which are :

 _resColor2 = new SolidColorBrush(Color.FromArgb(140, 255, 70, 0));​​
 _supColor2 = new SolidColorBrush(Color.FromArgb(140, 30, 144, 255));​​
​

full code part

if (State == State.DataLoaded)
            {
                _resColor = new SolidColorBrush(Color.FromArgb(180, 255, 70, 0));
                _resColor2 = new SolidColorBrush(Color.FromArgb(140, 255, 70, 0));​​
                _resColor.Freeze();
                _resColor2.Freeze();
                _supColor = new SolidColorBrush(Color.FromArgb(180, 30, 144, 255));
                _supColor2 = new SolidColorBrush(Color.FromArgb(140, 30, 144, 255));​​
                _supColor.Freeze();
                _supColor2.Freeze();
            }​

[NinjaTrader_Emily]

Hello fripi,

Thank you for your reply.

Do you have any extra spaces before or after the text in each line? Did you copy and paste any of those lines? If so, I suggest deleting and re-typing each line and compile after each line that you re-write to check for errors again. This is a general error and doesn't seem related to any of your logic; it is related to syntax and an unexpected character somewhere in your script. The latest version of NinjaTrader updated the compiler to use Roslyn and can now use C# up to version 8 as noted in the release notes here:

https://ninjatrader.com/support/helpGuides/nt8/8_1_2_0.htm

Please let us know if we may be of further assistance.

[fripi]

Thank you,

by copying the code to sublimeText i discovered invisible characters <0x200b>

[fripi]

Hi for those interested, this is my last version, it displays levels I have saved in txt files and displays horizontal lines at the given prices.
So if I restart or for any reason lose my workspace it's saved elsewhere.

To do so it reads 2 documents: "resistances.txt" and "supports.txt" which are placed in "drive:\Documents\NinjaTrader 8"
Colors, line width, transparency... are fixed in the code, I don't know yet how to make that configurable, so if you want to change that you'll need to do so in Ninja Script Editor.
Actually supports are blue and resistance orange, see screenshot.

In the txt file there MUST be a space after the price and one price per line.
You can also add the mention (major) after this space if it's an important level, the line will be thicker and and plain, otherwise it's dashed.

[JusticeKing]

Hi for those interested, this is my last version, it displays levels I have saved in txt files and displays horizontal lines at the given prices.
So if I restart or for any reason lose my workspace it's saved elsewhere.

To do so it reads 2 documents: "resistances.txt" and "supports.txt" which are placed in "drive:\Documents\NinjaTrader 8"
Colors, line width, transparency... are fixed in the code, I don't know yet how to make that configurable, so if you want to change that you'll need to do so in Ninja Script Editor.
Actually supports are blue and resistance orange, see screenshot.

In the txt file there MUST be a space after the price and one price per line.
You can also add the mention (major) after this space if it's an important level, the line will be thicker and and plain, otherwise it's dashed.

Awesome work!!! Would there be a way to add labels or text per price line?

[fripi]

Awesome work!!! Would there be a way to add labels or text per price line?

I suppose it could be done, but a generic text like the price itself, but I must look into that when I got time, I'm discovering the ninjascript in my free time.
I found an indicator which adds the price to drawned lines, maybe if you load it after it could work:

https://ninjatraderecosystem.com/user-app-share-download/labeled-horizontal-lines/

I will try to understand how it's done to add the functionality

I would like to:

• make colors configurable in the indicator properties
• also line opacity property
• also line width property
• checkbox property to add or not the price text above the line
• add zones with "region highlight y" so in the txt file if on one line I write : "4400 4405 (major)" it could mark a zone and not just a line

[fripi]

So I found this other indicator that draws the price tag above or below horizontal lines, I would like to extend it to RegionHighlightY, so I tried this

if(thisObject is NinjaTrader.NinjaScript.DrawingTools.RegionHighlightY)
{
l2 = thisObject as NinjaTrader.NinjaScript.DrawingTools.RegionHighlightY;

SharpDX.DirectWrite.TextLayout textLayout2 =
new SharpDX.DirectWrite.TextLayout(NinjaTrader.Core.Gl obals.DirectWriteFactory,
l2.StartAnchor.Price.ToString(_priceFormat), textFormat2, 400, textFormat1.FontSize);

SharpDX.Vector2 lowerTextPoint = new SharpDX.Vector2(ChartPanel.W - textLayout2.Metrics.Width - 5,
ChartPanel.Y + ((float)l1.StartAnchor.GetPoint(chartControl, ChartPanel, chartScale).Y)-(float)textLayout2.Metrics.Height);
RenderTarget.DrawTextLayout(lowerTextPoint, textLayout2, textBrushDx, SharpDX.Direct2D1.DrawTextOptions.NoSnap);
}

I got no error but it doesn't do anything, as I copied the code of the HorizontalLine and just changed the type of drawing maybe I miss some arguments as there are 2 Y ?

Another point is that the indicator seems to refresh a lot, and I just want it to do his stuff once at the loading of the chart after another indicator was loaded, so I suppose that I need to change the "onRender" to something else ?

protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
        {
            base.OnRender(chartControl, chartScale);​

[NinjaTrader_Emily]

So I found this other indicator that draws the price tag above or below horizontal lines, I would like to extend it to RegionHighlightY, so I tried this

if(thisObject is NinjaTrader.NinjaScript.DrawingTools.RegionHighlightY)
{
l2 = thisObject as NinjaTrader.NinjaScript.DrawingTools.RegionHighlightY;

SharpDX.DirectWrite.TextLayout textLayout2 =
new SharpDX.DirectWrite.TextLayout(NinjaTrader.Core.Gl obals.DirectWriteFactory,
l2.StartAnchor.Price.ToString(_priceFormat), textFormat2, 400, textFormat1.FontSize);

SharpDX.Vector2 lowerTextPoint = new SharpDX.Vector2(ChartPanel.W - textLayout2.Metrics.Width - 5,
ChartPanel.Y + ((float)l1.StartAnchor.GetPoint(chartControl, ChartPanel, chartScale).Y)-(float)textLayout2.Metrics.Height);
RenderTarget.DrawTextLayout(lowerTextPoint, textLayout2, textBrushDx, SharpDX.Direct2D1.DrawTextOptions.NoSnap);
}

I got no error but it doesn't do anything, as I copied the code of the HorizontalLine and just changed the type of drawing maybe I miss some arguments as there are 2 Y ?

Another point is that the indicator seems to refresh a lot, and I just want it to do his stuff once at the loading of the chart after another indicator was loaded, so I suppose that I need to change the "onRender" to something else ?

protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
{
base.OnRender(chartControl, chartScale);​

You mentioned you got no error but it wasn't doing anything; do you see any errors on the Log tab of the Control Center? If you look in the Drawing Tools menu (right-click chart > hover over Drawing Tools > select Drawing Objects from the bottom of the list) when the indicator is applied, do you see any region highlight y objects on the list?

When it comes to OnRender() it is expected that it refreshes frequently. What do you mean by wanting to only do this once when the chart loads? Are you wanting to have one object drawn on the chart that doesn't change and stays in the same place on the chart? For more details on custom rendering and OnRender();

• https://ninjatrader.com/support/help..._rendering.htm
• https://ninjatrader.com/support/help...8/onrender.htm

I look forward to your reply.

[fripi]

You mentioned you got no error but it wasn't doing anything; do you see any errors on the Log tab of the Control Center? If you look in the Drawing Tools menu (right-click chart > hover over Drawing Tools > select Drawing Objects from the bottom of the list) when the indicator is applied, do you see any region highlight y objects on the list?

When it comes to OnRender() it is expected that it refreshes frequently. What do you mean by wanting to only do this once when the chart loads? Are you wanting to have one object drawn on the chart that doesn't change and stays in the same place on the chart? For more details on custom rendering and OnRender();

• https://ninjatrader.com/support/help..._rendering.htm
• https://ninjatrader.com/support/help...8/onrender.htm

I look forward to your reply.

I did a Print(l2.StartAnchor.Price) and my output log gives me the first value of all zones, but nothing comes on the display

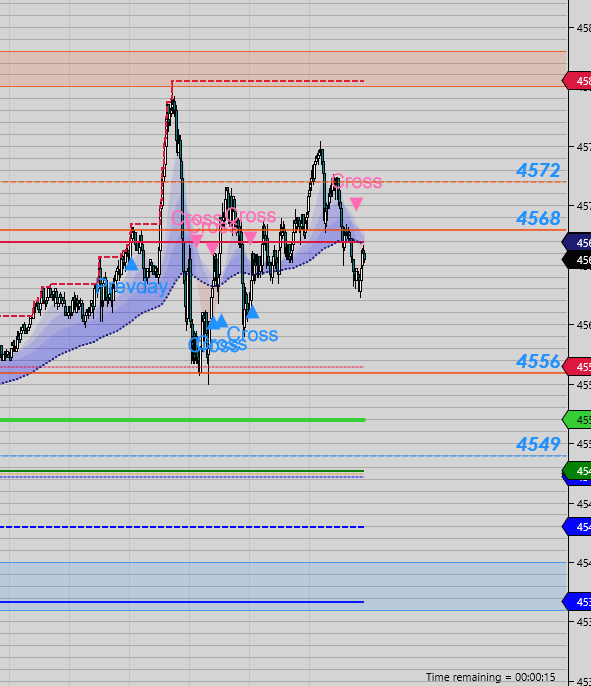

I have a text file where I write down every day the levels and zones that seems important to me, and my indicator loads those levels and draws Horizontal lines or RegionHighlightY, that just needs to be done at the loading 1 time. Orange and blue lines on bellows screenshot.
Then I found a the indicator here https://ninjatraderecosystem.com/use...izontal-lines/ and it labels all horizontal lines, but those lines never moves in a session for me.
The blue labels right to the lines on my screenshot, but nothing on the zones...
So I want to adapt the indicator to also mark the zones and just put the labels once at loading, no need of looping with the onRender

[NinjaTrader_Emily]

Hello fripi,

Thank you for your reply.

As an alternative to rendering the labeled region in OnRender() within your script, you could consider using the Labeled Lines Drawing Tool script that is also publicly available on our NinjaTrader Ecosystem website:

• https://ninjatraderecosystem.com/use...-drawing-tool/

Per the update on 10/08/2019, NinjaScript overloads were added and can be used by calling DrawLL.<insert type of line here>(). The intelliprompt should pop up and guide you through the required arguments for the method signatures. This group of drawing tools does not include a region highlight y tool, though you could use it as a guideline to also add this type of labeled tool if you'd like and then in your script, you could DrawLL.LabeledRegionHighlightY() (for example if you add this) and only call it once since the region does not need to be updated after the indicator initially loads.


Please let me know if I can be of further assistance.
