transparent color to see the bars

[punkiy2111]

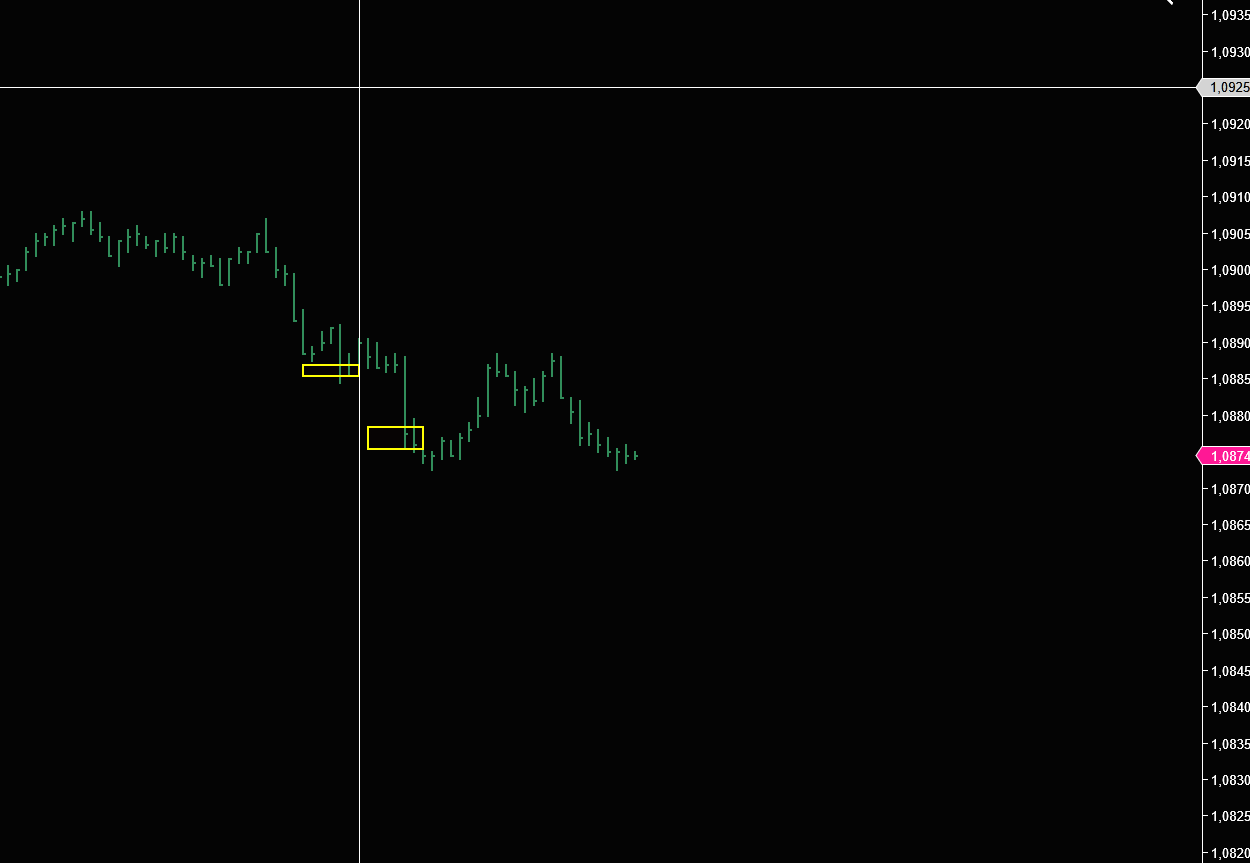

Hello, I have an indicator that when it meets a few parameters it draws me a yellow rectangle, the problem I have is that on many occasions I cannot see the bars because it is a deep color that covers these bars, as I could do so that this color is transparent? Please indicate in the simplest way since I am not a programmer, thanks.

[NinjaTrader_ChelseaB]

Hello punkiy2111,

The Draw.Rectangle() method has a parameter for the areaOpacity but not the outline opacity.

https://ninjatrader.com/support/helpGuides/nt8/draw_rectangle.htm

To set the opacity of the outline, a Brush will need to be created that has the .Opacity set on it.

https://ninjatrader.com/support/forum/forum/ninjatrader-8/indicator-development/78506-nt8-color-to-brush-conversion-with-opacity?p=784408#post784408

For example:

Brush myBrush = Brushes.Yellow.Clone();
myBrush.Opacity = .2;
myBrush.Freeze();
Draw.Rectangle(this, "myRect", 5, High[0], 0, Low[0], myBrush);

[punkiy2111]

And ellipse??

[NinjaTrader_ChelseaB]

Hello punkiy2111,

Below is a link to the help guide on Draw.Ellipse().

https://ninjatrader.com/support/helpGuides/nt8/draw_ellipse.htm
