DrawRegion not responding to code logic

[saroj]

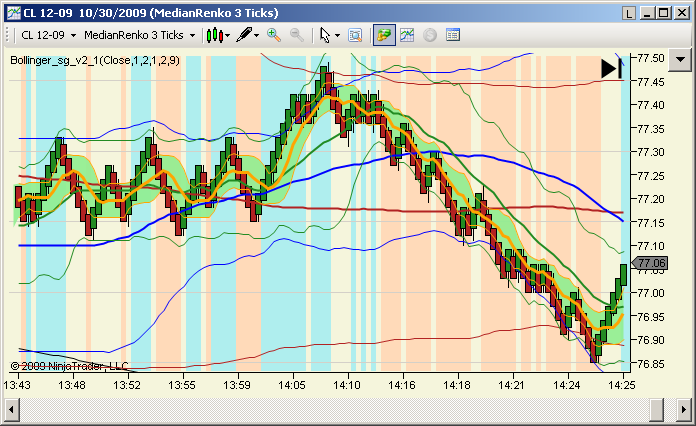

In the attached chart, I want the DrawRegion between the Gold lines BB 8/.8 to change based on the conditions in the code. They don't. To check the logic, I add BackColor (just for troubleshooting) which shows that the logic is correct.

How do I accomplish this?

Here is the code in question: (I've also attached the entire indicator in case you need it)

// fill the bands with color and allow for custom opacity level

if (
(Close[0] > UpperBB8[0] && SMA(8)[0] > SMA(20)[0]) ||
(Close[0] > SMA(8)[0] && Rising(SMA(20)))
)
{
DrawRegion("BB8", CurrentBar, 0, UpperBB8, LowerBB8, Color.Empty, longColor, OpacityBB8);
BackColor = Color.PaleTurquoise;
}

else if (
(Close[0] < LowerBB8[0] && SMA(8)[0] < SMA(20)[0]) ||
(Close[0] < SMA(8)[0] && Falling(SMA(20)))
)
{
BackColor = Color.PeachPuff;
DrawRegion("BB8", CurrentBar, 0, UpperBB8, LowerBB8, Color.Empty, shortColor, OpacityBB8);
}
else {
BackColor = Color.Transparent;
DrawRegion("BB8", CurrentBar, 0, UpperBB8, LowerBB8, Color.Empty, Color.Empty, 0);
}

[Note: This is a messy way to paste in the code, but I don't know how to do it in its own window like I see in other posts... How do I do that? ]

[saroj]

Follow-on question to first post

given how many times I reference items in various DataSeries, would it improve performance significantly if I created double variables to hold these values to use in the logic code?

[NinjaTrader_Ben]

Hello,

Have you seen this referenced showing how to do it:

http://www.ninjatrader-support2.com/vb/showthread.php?t=4331

[saroj]

Hello,

Have you seen this referenced showing how to do it:
http://www.ninjatrader-support2.com/...ead.php?t=4331

Ben, thanks for the link... turns out it was the final "else" and some anomaly of region painting that was causing the problems... however I'm so much a beginner at this NS/C3 stuff that I have spent hours today trying to understand why/how NT Josh made the coding decisions he did... I had started with a Bollinger Band region drawing example posted by Bertrand which uses very different constructs.

All in a day's work I guess.

[NinjaTrader_Ben]

Hello,

Yes, coding can be tedious, but once you get the logic down it gets faster and can even be fun.

[oldhiker]

Over the last few days, I have made several attempts to find a good example of DrawRegion, and at last I have found it.

Have you seen this referenced showing how to do it:
http://www.ninjatrader-support2.com/...ead.php?t=4331

Thank you for the link to the sample code and equally important is an example of what the code will produce.
Now I have one less hurdle to clear.

[saroj]

Here's my latest code (NT 7)

... for the Bollinger Band draw region example.

http://screencast.com/t/0YergW2e2

[oldhiker]

Hello saroj,
Thank you very much for the update. I have had only a brief look at the code and the sample output, but I can see where I will be able to learn several different ideas and the sample code snippets.
