strategy only plot the last 2 arrows

[sysmatrix]

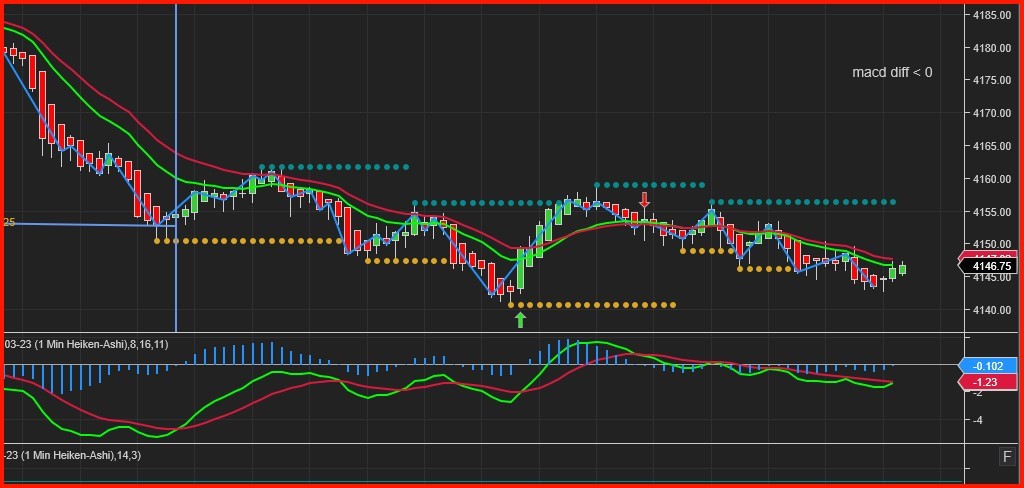

attached the screenshot.


this codes only plot two arrows. the logic look okay. but I want it to be able to plot on the chart across all trading hours. Why it only plots two arrows ?



protected override void OnBarUpdate()
{
if (BarsInProgress != 0)
return;

if (CurrentBars[0] < 1)
return;

// Set 1
if (MACD1.Diff[0] > 0)
{
Draw.Text(this, @"plotMACDBuySell Text_1", @"macd diff > 0", 0, (Close[0] + 30) );
MacdAboveZero = true;
}

// Set 2
if (MACD1.Diff[0] < 0)
{
Draw.Text(this, @"plotMACDBuySell Text_1", @"macd diff < 0", 0, (Close[0] + 30) );
MacdBelowZero = true;
}

// Set 3
if ((MacdBelowZero == true)
&& (CrossAbove(MACD2.Default, MACD2.Avg, 1)))
{
Draw.ArrowUp(this, @"plotMACDBuySell Arrow up_1", true, 0, (Low[0] + (-12 * TickSize)) , Brushes.Lime);
MacdBuy = true;
}

// Set 4
if ((CrossBelow(MACD2.Default, MACD2.Avg, 1))
&& (MacdAboveZero == true))
{
Draw.ArrowDown(this, @"plotMACDBuySell Arrow down_1", true, 0, High[0], Brushes.Red);
MacdSell = true;
}

}

[NinjaTrader_Jesse]

Hello sysmatrix,

To have many drawing objects they need a unique name. You can do something like the following:

Draw.ArrowUp(this, @"plotMACDBuySell Arrow up_1" + CurrentBar, true, 0, (Low[0] + (-12 * TickSize)) , Brushes.Lime);
Draw.ArrowDown(this, @"plotMACDBuySell Arrow down_1" + CurrentBar, true, 0, High[0], Brushes.Red);

Adding CurrentBar to the string will give you a unique name per bar so you can have multiple objects. When you re use a tag that just updates the existing object on the chart to the new values.

[sysmatrix]

Thank you Josse. It works perfectly.
