Access to Box Size and Reversal values for Point & Figure charts

[ours_solaire]

Hi,

My strategy uses Point & Figure (PNF) charts and I need read-only access to the various properties of the PNF DataSeries as set up on the chart that the strategy is running on.

I have tried looking in ChartBars.Properties etc.. but I can't find where these PNF properties are located, in particular the Box Size and Reversal values are what I'm after.

Any help appreciated!

[NinjaTrader_ChelseaB]

Hello ours_solaire,

BoxSize - BarsArray[0].BarsPeriod.Value
Reversal - BarsArray[0].BarsPeriod.Value2

This can be found in the PointAndFigure script
SetPropertyName("Value", Custom.Resource.NinjaScriptBarsTypePointAndFigureB oxSize);
SetPropertyName("Value2", Custom.Resource.NinjaScriptBarsTypePointAndFigureR eversal);

[gdshan]

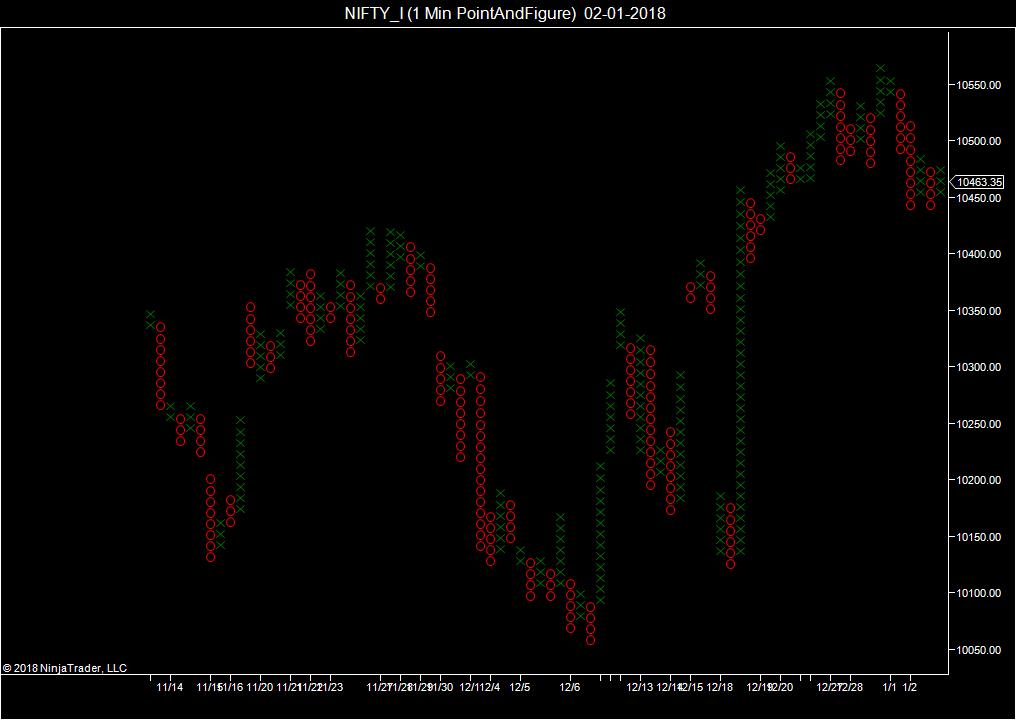

I am using NT7.0.1000.37 version. When I try to plot P&F chart for Nifty Futures, I get disjointed Xs and Os as can be seen in the attachment. This instrument is defined as NIFTY_I and is linked to the NSE session. Please help me in finding the root cause of this issue.

[NinjaTrader_ChelseaB]

Hello gdshan,

This may be due to gaps in the data.

Are there also gaps on a 1 minute chart?

[gdshan]

Hi Chelsea

Gaps in data would indeed be there between days. However, P&F chart is supposed to fill it with either Xs or Os accordingly as its a gap up or gap down. In my case, chart simply plots like any time based chart. Hence wanted to check if I am missing any setup.

[NinjaTrader_ChelseaB]

Hello gdshan,

With all bars including point and figure, a new bar will form at the start of a new session and this will not be connected with the last bar of the previous session.

This means there can be a gap there if the price at the close of one session is different than the open of the next session.
