Customizing Slate Light Skin - Can't set Strategy Analyzer background

[Shai Samuel]

Hi,

I was looking for a Gray based Skin with Gray background and couldn't find one. I copied Slate Light skin and changed the background values of most of the screens.

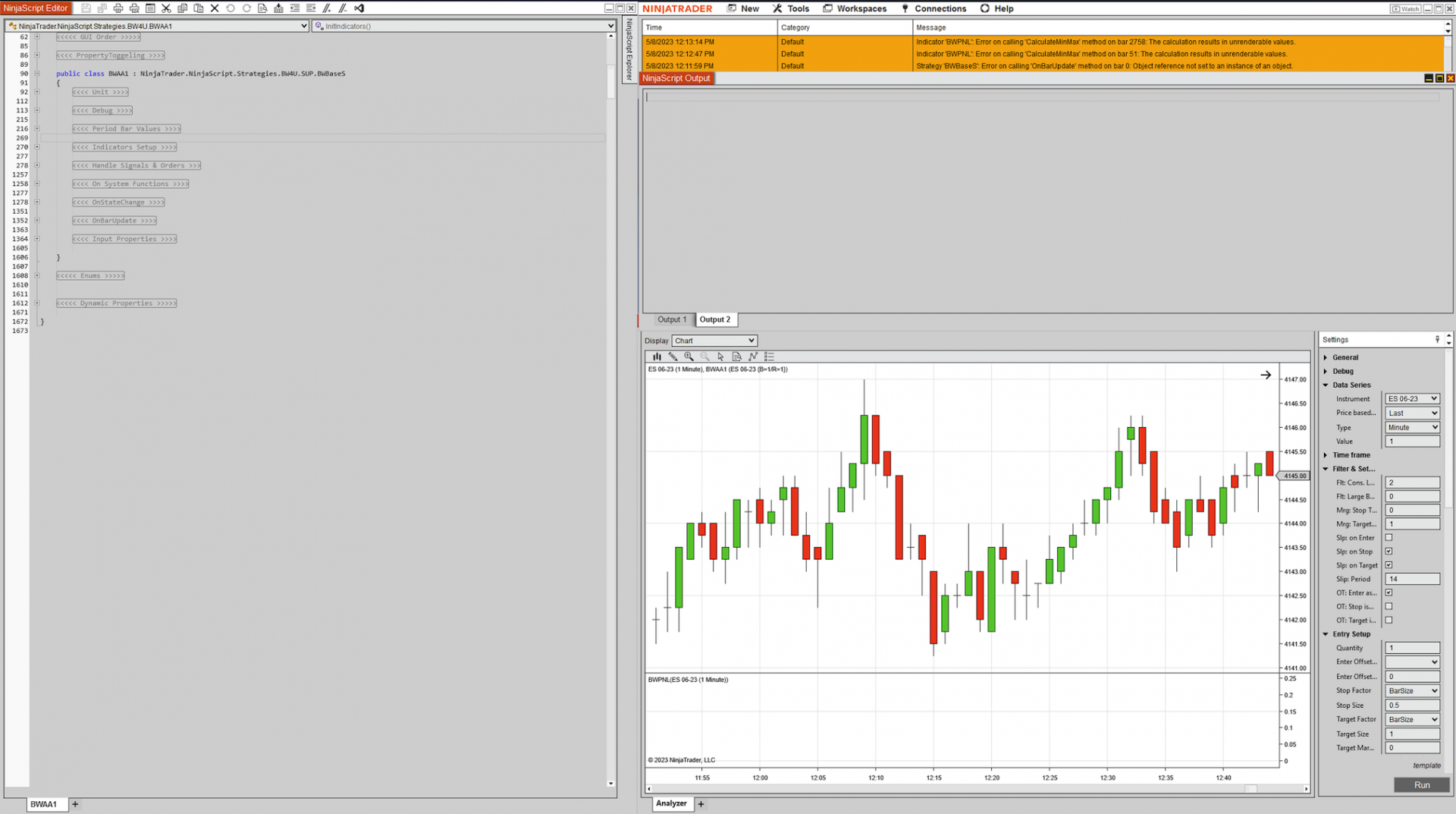

1. Somehow, changing BrowserChartBackground doesn't change the screen color and it stays White.

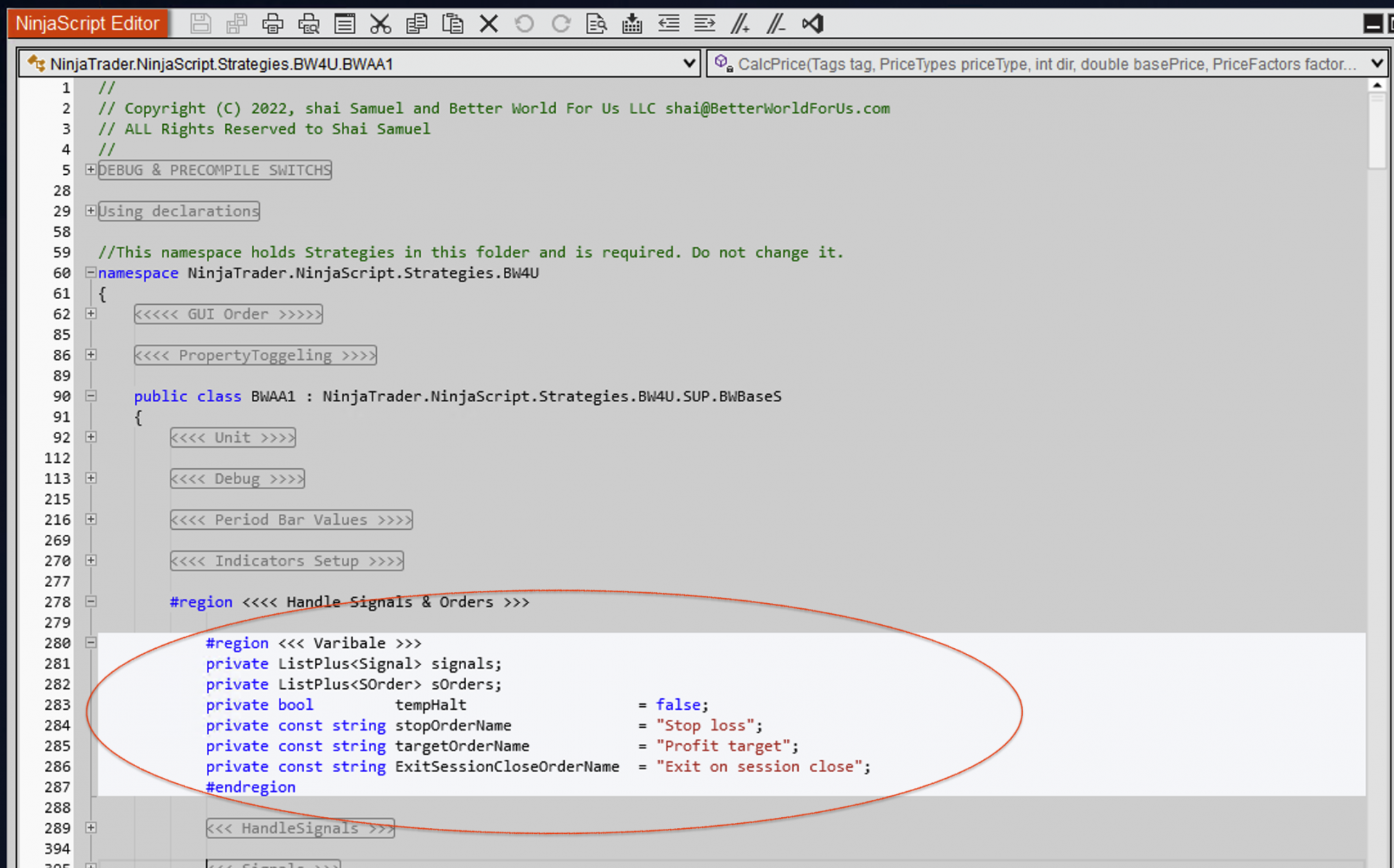

2. I can't find what controls the color of the area marked with the red circle in image #2, shown when the mouse goes over a region.

Any ideas?

Image Home


Image Forum

[NinjaTrader_BrandonH]

Hello Shai Samuel,

Thanks for your post.

When you mention you want to change the Strategy Analyzer background, are you referring to the background of the Chart window in the Chart Display of the Strategy Analyzer?

If so, you could change the color of the ChartControl.ChartBackground property around line 30 in the ChartControl.xml file located in the Documents\NinjaTrader 8\templates\Skins\Slate Light folder.

To change the collapsible region background color on the NinjaScript Editor window, you could modify the color of the "NinjaScriptEditorCollapsibleRegionBackground" property around line 889 in the Blueprint.xml file located in the Documents\NinjaTrader 8\templates\Skins\Slate Light folder.

Creating your own skin: https://ninjatrader.com/support/help...r_own_skin.htm
