marker size

[stasha]

Dear NT8 support

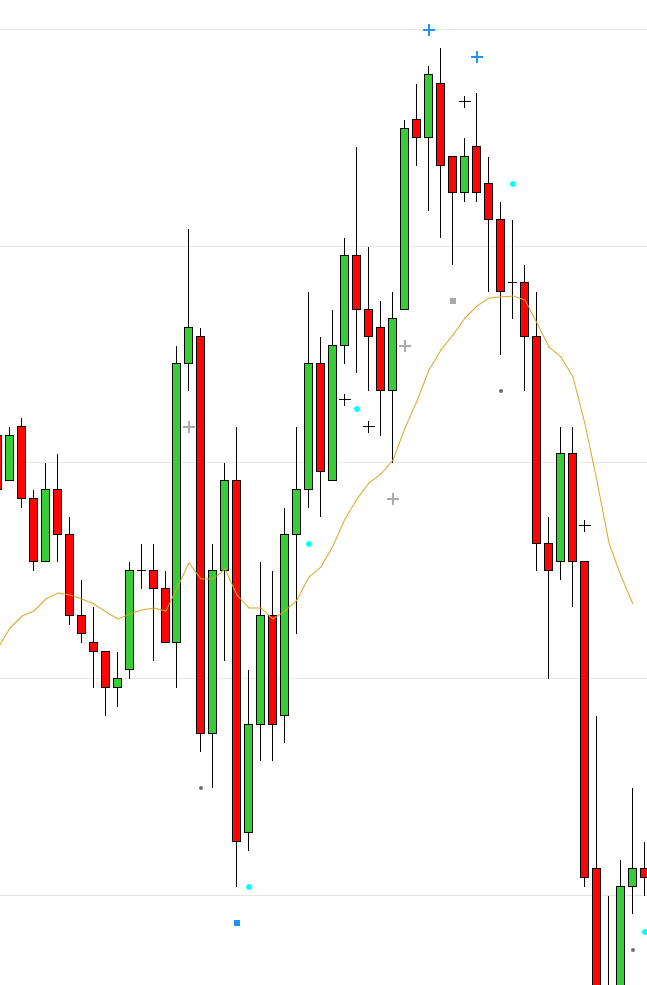

I am plotting some markers on the chart (see attached). To do that I am using the following code:

AddPlot(new Stroke(Brushes.DarkOrange,3), PlotStyle.Dot, "MyMarker");

I am finding markers being too small and would like to enlarge them for the following

PlotStyle.Dot, PlotStyle.Block, PlotStyle.Cross

.Was trying to play with last number in the Stroke (its width), that does not seem to have any effect on size of the marker. Please advise on how to accomplish the task.
Thank you in advance!

[NinjaTrader_ChelseaB]

Hello stasha,

I am finding this has a effect.
Attached is a test script.

If you are changing this in State.SetDefaults, keep in mind you would need to remove the instance of the indicator from the Configured list and add a new instance from the Available list to pull the defaults.

[stasha]

Thanks a lot Chelsea B.. Your code is working as a constant, but I am trying to change the size dynamically, Get parameter from user and apply it to the marker. That does not work. Sample script is attached.. BTW i paid attention you're using 8.0.0.26, while I am 8.0.0.25 don't think it makes huge difference, just to note.
So if you use this code, take parameter and apply, the result dos not change.
Thank you

[NinjaTrader_ChelseaB]

Hello stasha,

State.SetDefaults is only called when a new instance of the script is added and the defaults are pulled.

If you want to change a plots .Width dynamically, do this in OnBarUpdate().
