Order Flow VP Indicator - Sessions: Fix X-Position of current Day Volume Profile

[Tradix10]

Hello,

I am using the Order Flow Voluem Profil Indicator. The profile is on the right side of the Chart - works pretty good.

To avoid candle intersection with the Profile during trading (See image in Attachement) I am looking for a possibility to attach the profile of the current day to the right border and fix it there. If I move the chart, the idicator would remain in the same X-position. I Could not find an option to achieve this behaviour.

In case there is not option - would it be possible to add it to the Deveolpment list? It would be great to have the choice: either as it is OR attach the x- Position it to the right.

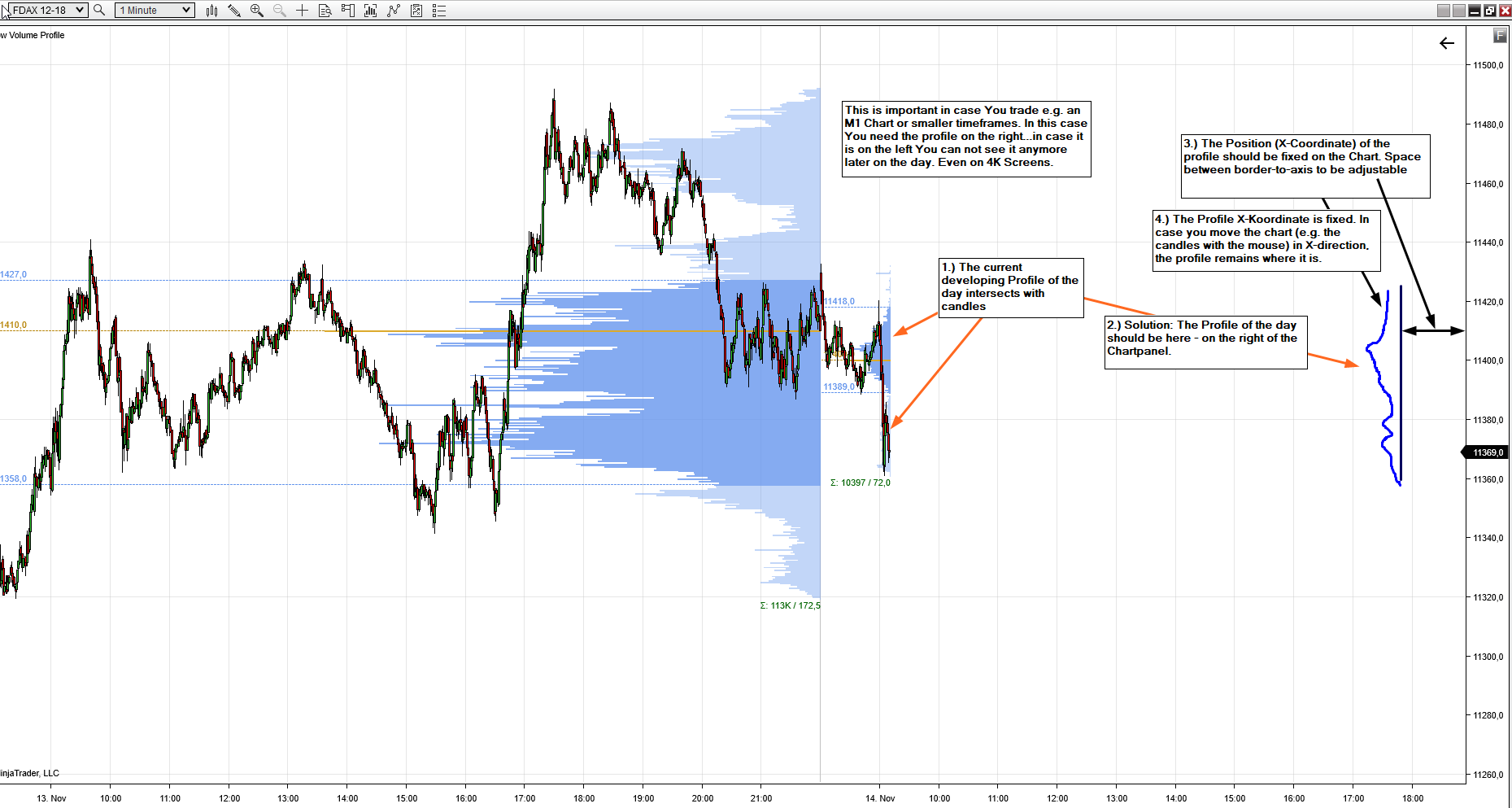

Please see the image!


Thank You!

[NinjaTrader_PatrickG]

For the right-pinned Volume Profile, use the Order Flow Volume Profile with Profile period = Composite with some additional changes. Within the Order Flow Volume Profile, change the following properties. Below I have listed the properties which need to be changed from default:

• Set up section
  • Profile period = composite
  • Compose by = days back
• Visual section
  • Profile alignment = Right
  • Profile width (%) = dependent on personal preference to meet your visual needs
• Here are those settings applied to a chart

You can further prevent the profile from overlapping data bars by adjusting the Profile width property mentioned above and also changing the chart's right-side margin property:

• Right-click on the chart > Properties > Change right-side margin to a larger number
  • This number is in pixels, so the exact number needed will be unique depending on your monitor size and resolution
• Here is an example with the above profile applied and a right-side margin of 200

If this still doesn't meet your needs, please let me know what else would need to change.

[Tradix10]

Hi,

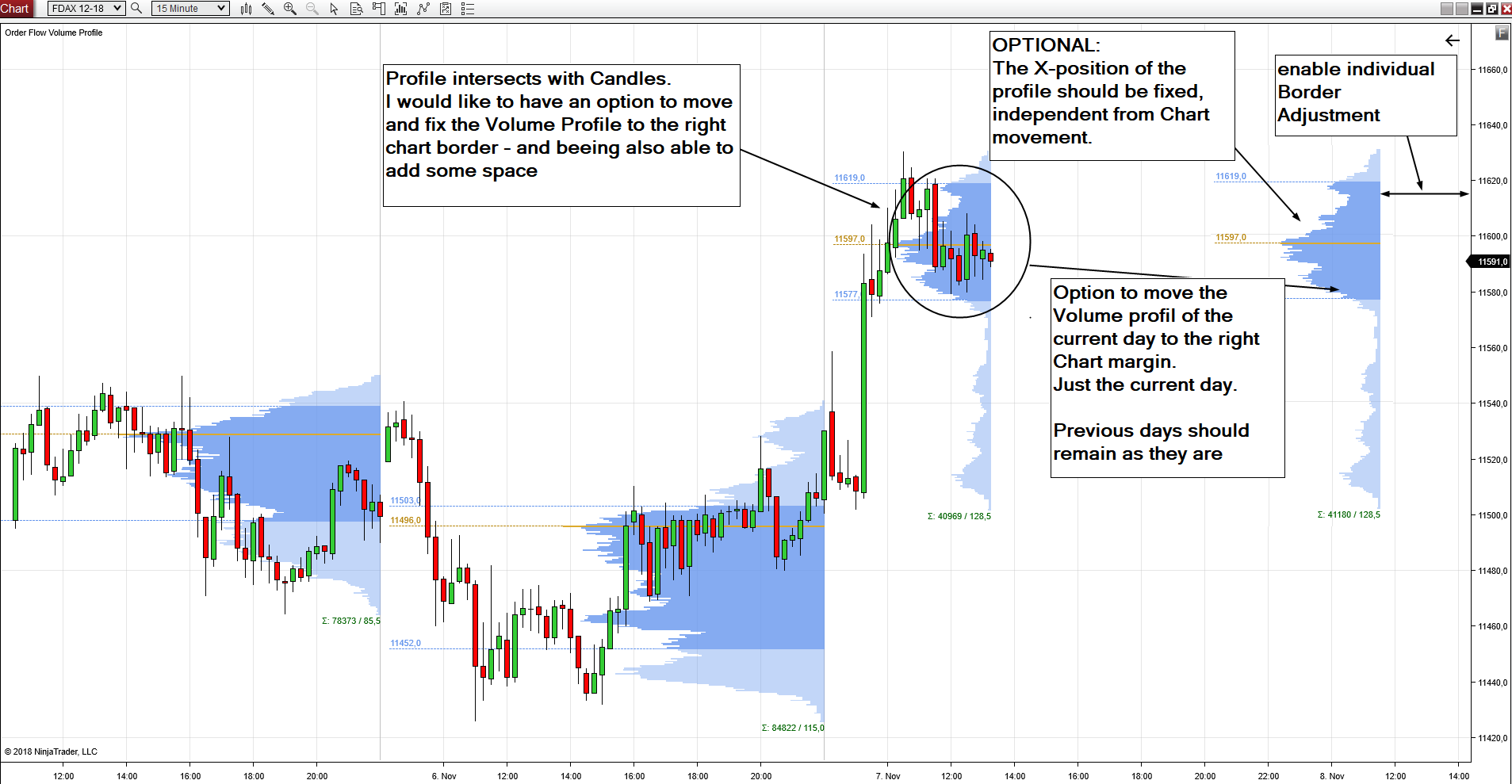

it is still not what I am looking for. Also the Workaround ist not what I am looking for. Please see my new image.
Would be great if the request could be considered in an upcoming NT8 Update.
Thanks.

[NinjaTrader_PatrickG]

The internal tracking number for your feature request is SFT-3408. Please reference this internal tracking number if you ever have questions regarding this feature request.

When a feature request is implemented, you'll find it in the release notes:

http://ninjatrader.com/support/helpGuides/nt8/en-us/?release_notes.htm
