NT8 Bar Times

[RJBen]

Paul H put out a great Indicator that measures a bar's time from Open to Close.
I want to modify it just a little by being able to paint the times a different color if the bar time is below a certain threshold.
So if I put the threshold at, say 5 seconds, then the indicator plots a Red Bar in the Indicator panel.
Otherwise, it plots a SeaGreen above 5 seconds.
How would I add that Condition and Action?

[NinjaTrader_ChelseaB]

Hello RJBen,

Below is a link to the original indicator I think you are referring to.

https://ninjatraderecosystem.com/user-app-share-download/nt8-bartimes/

The BarTime[0] plot series is holding the calculated value for the time.

From your own custom indicator you could call this indicator and check the BarTimes(CustomBsEnumNamespace.TimeSelector.Second s).BarTime[0] value for your own conditions.

You could also copy the original script with a new unique name and modify the copy to add your conditions.

Compare BarTime[0] as a number of seconds.

Assign BarBrush a Brush value to change the color of the bar.

https://developer.ninjatrader.com/docs/desktop/barbrush

For example:

if (BarTimes(CustomBsEnumNamespace.TimeSelector.Seconds).BarTime[0] > 5)
{
BarBrush = Brushes.Red;
}

[RJBen]

Chelsea I removed the timeframes I won't need- milliseconds, minutes and hours.
I tried adding the code in several places:
if (BarTimes(CustomBsEnumNamespace.TimeSelector.Secon ds).BarTime[0] > 5)
{
BarBrush = Brushes.Red;
}

It says I "Cannot implicitly convert type 'CustomBsEnumNamespace.TimeSelector' to 'bool'
It also says "No enclosing loop out of which to break or continue"
Where should this go?

protected override void OnBarUpdate()
{
if (CurrentBar < 1)
return;

if (Bars.IsFirstBarOfSession)
{
if (IsFirstTickOfBar)
{
temp = Time[0];
}
else
{
if (CustomBsEnumNamespace.TimeSelector.Seconds);
{
BarTime[0] = (Time[0] - temp).TotalSeconds;
break;
}
}
}

else
{
if (CustomBsEnumNamespace.TimeSelector.Seconds);
{
BarTime[0] = (Time[0] - Time[1]).TotalSeconds;
break;
}
}
}

[NinjaTrader_ChelseaB]

Hello RJBen,

You have:
if (CustomBsEnumNamespace.TimeSelector.Seconds);

This doesn't have any comparison, doesn't call the BarTimes() indicator, and has a semicolon after it for 'no operation'.

You are comparing an enum to be true or false which isn't valid C#.

Try the suggested branching command instead:

if (BarTimes(CustomBsEnumNamespace.TimeSelector.Seconds).BarTime[0] > 5)

[RJBen]

It says, "Non-invocable member 'rbBarTimes.BarTime' cannot be used like a method"

[NinjaTrader_ChelseaB]

Hello RJBen,

What is rbBarTimes?

Is this a variable holding the indicator?

Are you trying to access a specific bar in a series with an index?

[RJBen]

I renamed it trying to customize it.
This is what I have:

[NinjaTrader_ChelseaB]

Hello RJBen,

To confirm, you no longer using the original indicator and you are now using your own custom indicator?

And to confirm, you are getting the same exact error message when compiling? ("Non-invocable member 'rbBarTimes.BarTime' cannot be used like a method")

[RJBen]

I deleted the timeframes I won't be using. I kept the "seconds" I renamed it rbBarTimes
The message reads "Argument 1: cannot convert from 'CustomBsEnumNamespace.TimeSelector' to 'NinjaTrader.NinjaScript.ISeries<double>'

[NinjaTrader_ChelseaB]

Hello RJBen,

To confirm, you are no longer getting the error ""Cannot implicitly convert type 'CustomBsEnumNamespace.TimeSelector' to 'bool'"?

Further, the code you posted in post # 7 is the same code you are using now?

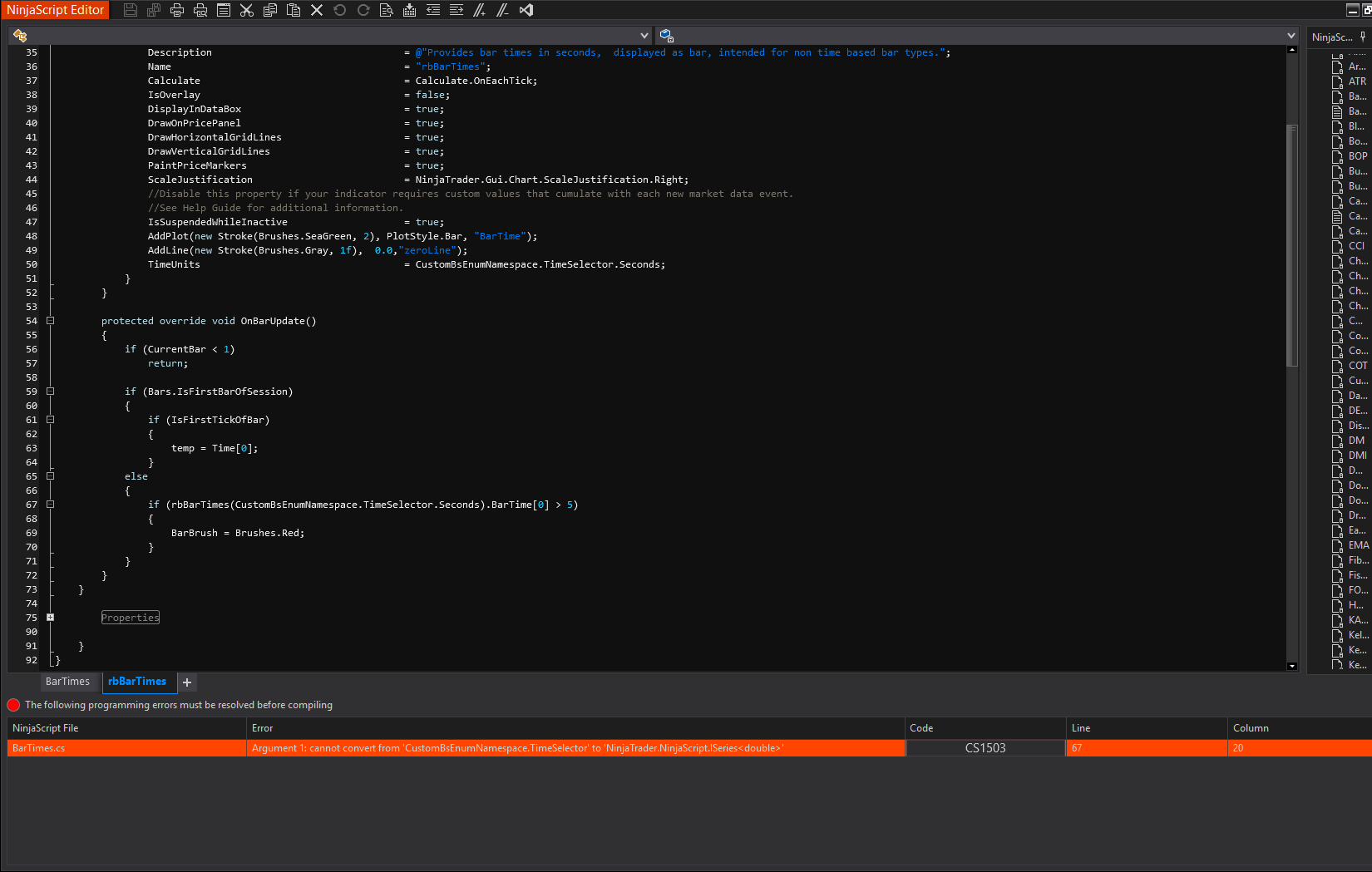

May I have a screenshot of the NinjaScript Editor showing the entire window including the error message and line of affected code to confirm?

[RJBen]

This what it shows.

[RJBen]

Ya know what- forget it. This is way, way, way too complicated. When I closed the program and reopened it- this code has 150 errors on it now.

[NinjaTrader_ChelseaB]

Hello RJBen,

The issue appears to be a coding error in the BarTimes indicator. The TimeUnits input was missing the [NinjaScriptProperty] attribute.

I've corrected and attached is a test script using the suggested code.
RJBenBarTimesTest_NT8.zip

[RJBen]

It still doesn't work. Imports fine but added to a small time frame it doesn't draw any bars in the indicator panel. That's okay my friend- I'll use the original. Just wanted to make it a kind of Pace of the Tape Indicator. I'll just draw a horizontal Line on the Original. If it's below that Horizontal Line set to 5 seconds then the bar is Opening and Closing in 5 seconds. The Red bar would just make it a little easier. Thanks Chelsea!!

[NinjaTrader_ChelseaB]

Hello RJBen,

The test script is not designed to draw any rectangles. It sets the BarBrush to change the color of the bar to red. It also prints to the output window.

This was intended to show you the suggested code can compile.

I may have misunderstood your initial inquiry.

"I want to modify it just a little by being able to paint the times a different color if the bar time is below a certain threshold."

Are you not wanting to change the color of the bar?

https://developer.ninjatrader.com/docs/desktop/barbrush

Are you trying to set a plot value with bars plot style?

https://support.ninjatrader.com/s/article/Developer-Guide-Adding-Plots-in-Indicators

Are you wanting to call Draw.HorizontalLine() to draw a horizontal line?

https://developer.ninjatrader.com/docs/desktop/draw_horizontal_line

Are you wanting to call Draw.Rectangle() to draw a rectangle over a few bars?

https://developer.ninjatrader.com/docs/desktop/draw_rectangle
