Default ConstantLines plots - make plots global?

[WileCoyote]

I recently stumbled through customizing the default ConstantLines indicator to include all the levels I identify during my morning analysis and as the day progresses. I use multiple timeframes for the same instrument on independent chart tabs - 1M, 5M, 15M, etc. and would like to avoid having to reload the indicator template on each one whenever I update my levels. Is there a way to make the ConstantLines horizontal line plots global options that will then display on all the other timeframes of the same instrument? Thanks!

[NinjaTrader_Jesse]

Hello WileCoyote,

With how the indicator is coded it cannot make global lines, you could make a copy of the indicator and then edit it to use horizontal drawing objects, those can be set to global.

https://developer.ninjatrader.com/docs/desktop/draw_horizontal_line

Draw.HorizontalLine(NinjaScriptBase owner, string tag, double y, bool isGlobal, string templateName)

[WileCoyote]

Jesse,

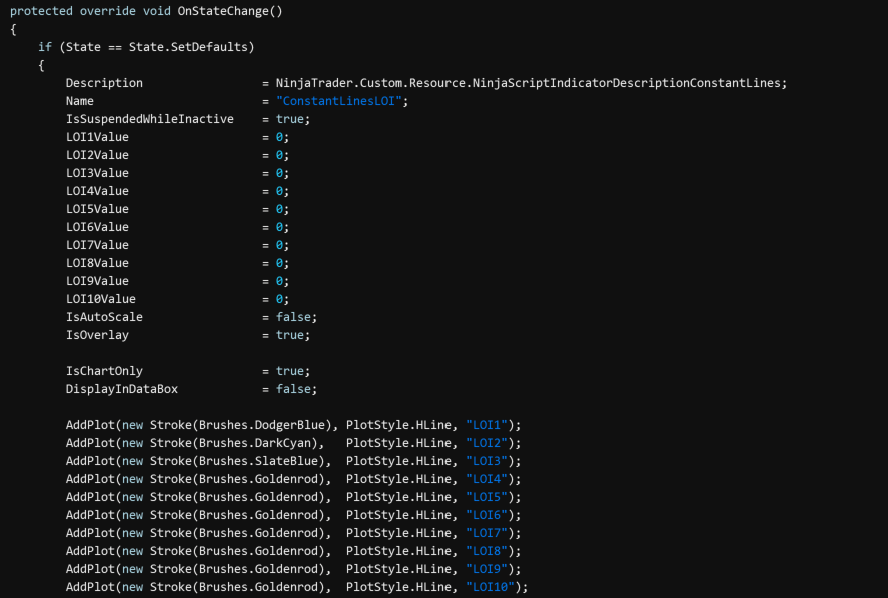

Thanks for the response. I'm not a coder but was able to customize a copy for what I want to do (just added more lines and re-labeled them). I don't know where to add what you mentioned. Screenshot below:

[NinjaTrader_Jesse]

Hello WileCoyote,

That need sto go in the OnBarUpdate region, if you look at the original code:

protected override void OnBarUpdate()
{
if (Line1Value != 0) Line1[0] = Line1Value;
if (Line2Value != 0) Line2[0] = Line2Value;
if (Line3Value != 0) Line3[0] = Line3Value;
if (Line4Value != 0) Line4[0] = Line4Value;
}


You can add code after that point for example

protected override void OnBarUpdate()
{
if (Line1Value != 0) Line1[0] = Line1Value;
if (Line2Value != 0) Line2[0] = Line2Value;
if (Line3Value != 0) Line3[0] = Line3Value;
if (Line4Value != 0) Line4[0] = Line4Value;
Draw.HorizontalLine(this, "line1", Line1Value, true, "MyTemplateNameForTheColor");
Draw.HorizontalLine(this, "line1", Line2Value, true, "MyTemplateNameForTheColor");
Draw.HorizontalLine(this, "line1", Line3Value, true, "MyTemplateNameForTheColor");
Draw.HorizontalLine(this, "line1", Line4Value, true, "MyTemplateNameForTheColor");

}
