Use OnRender with percentage and not with pixels

[FaaZer]

Hi,

I am wondering If it is possible use the draws that I make with OnRender in percentage of the chart? Because If I move the dimensions of the chart, it doesnt adapt it

I use like a base code the SampleCustomRender, I cut what I wont use and the code look like this:

protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
    {
        // Define the initial and final coordinates of the panel
        SharpDX.Vector2 startPoint = new SharpDX.Vector2(ChartPanel.X, ChartPanel.Y);
        SharpDX.Vector2 endPoint = new SharpDX.Vector2(ChartPanel.X + ChartPanel.W, ChartPanel.Y + ChartPanel.H);

        // Width, height, and center of the chart
        float width = endPoint.X - startPoint.X;
        float height = endPoint.Y - startPoint.Y;
        SharpDX.Vector2 center = (startPoint + endPoint) / 2;

        if (!IsInHitTest)
        {
            // Convert WPF brushes to SharpDX resources
            SharpDX.Direct2D1.Brush smallAreaBrushDx = smallAreaBrush.ToDxBrush(RenderTarget);
            SharpDX.Direct2D1.Brush textBrushDx = textBrush.ToDxBrush(RenderTarget);

            #region Rendering of the draws

            // Define the format and layout of the text
            SharpDX.DirectWrite.TextFormat textFormat2 = new SharpDX.DirectWrite.TextFormat(
                NinjaTrader.Core.Globals.DirectWriteFactory,
                "Century Gothic",
                FontWeight.Bold,
                FontStyle.Italic,
                32f
            );
            SharpDX.DirectWrite.TextLayout textLayout2 = new SharpDX.DirectWrite.TextLayout(
                NinjaTrader.Core.Globals.DirectWriteFactory,
                NinjaTrader.Custom.Resource.SampleCustomPlotLowerRightCorner,
                textFormat2,
                400,
                textFormat2.FontSize
            );

            // Define the coordinates for the text in the lower-right corner
            SharpDX.Vector2 lowerTextPoint = new SharpDX.Vector2(
                ChartPanel.W - textLayout2.Metrics.Width - 5,
                ChartPanel.Y + (ChartPanel.H - textLayout2.Metrics.Height)
            );

            // Define the rectangle for the text
            SharpDX.RectangleF rect1 = new SharpDX.RectangleF(
                lowerTextPoint.X,
                lowerTextPoint.Y,
                textLayout2.Metrics.Width,
                textLayout2.Metrics.Height
            );

            // Render the rectangle and text
            RenderTarget.FillRectangle(rect1, smallAreaBrushDx);
            RenderTarget.DrawRectangle(rect1, smallAreaBrushDx, 2);
            RenderTarget.DrawTextLayout(lowerTextPoint, textLayout2, textBrushDx, SharpDX.Direct2D1.DrawTextOptions.NoSnap);

            #endregion

            // Release SharpDX resources
            smallAreaBrushDx.Dispose();
            textBrushDx.Dispose();
            textFormat2.Dispose();
            textLayout2.Dispose();
        }
    }
​

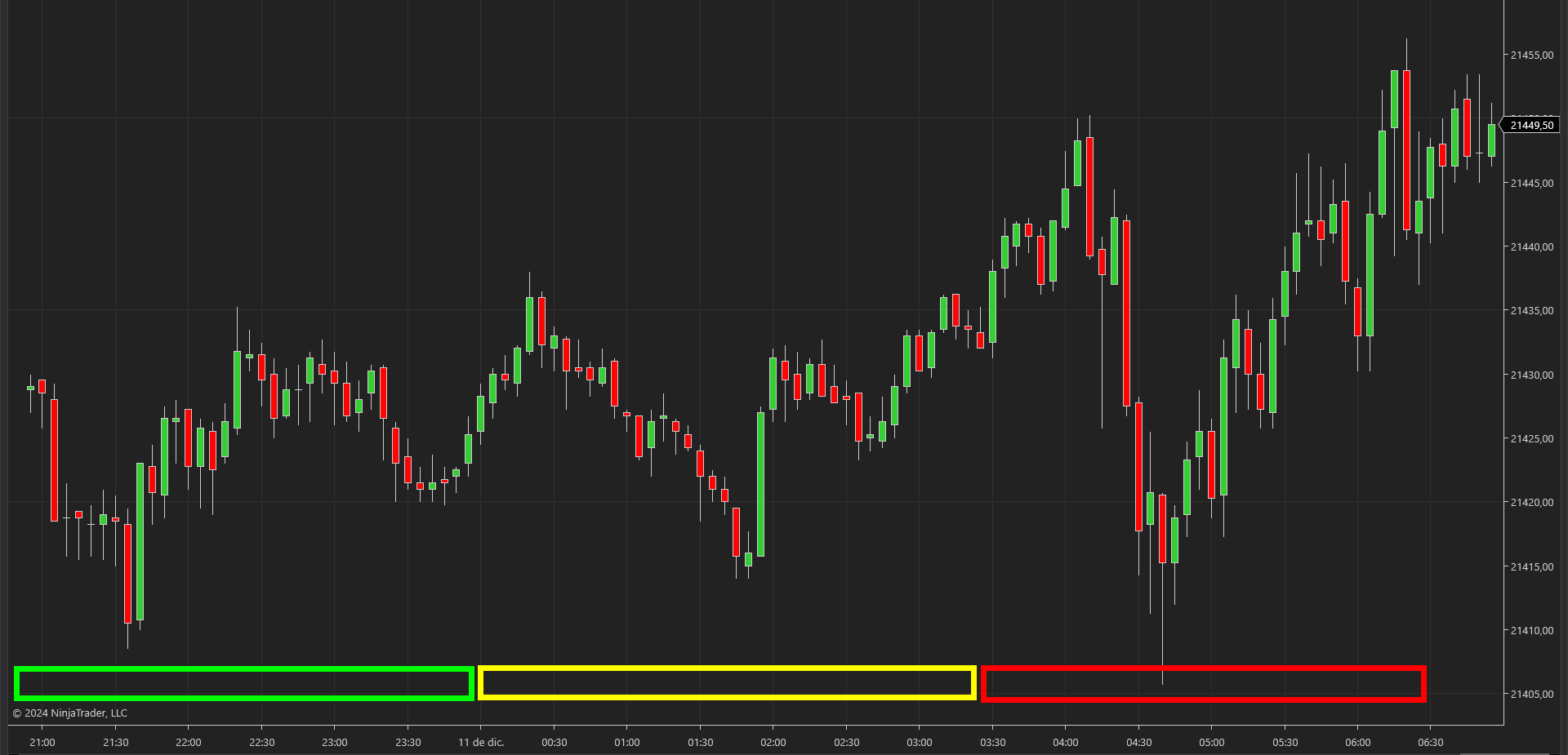

For example when I use the Draw.Text Fixed this can adapt it, something like this I am trying to use but also I want to be avaible to see like this image


they are 3 blocks. I am thinking that I should adapt no just the rectangule of the onrender... also the text, is it okay? is it possible? how?

Thanks!

[NinjaTrader_Jesse]

Hello FaaZer,

You would have to use math to find the percents of those sections by using the panels width. For example if you divide the panel width by 3 you would get the maximum width of 1/3 of the panel.
