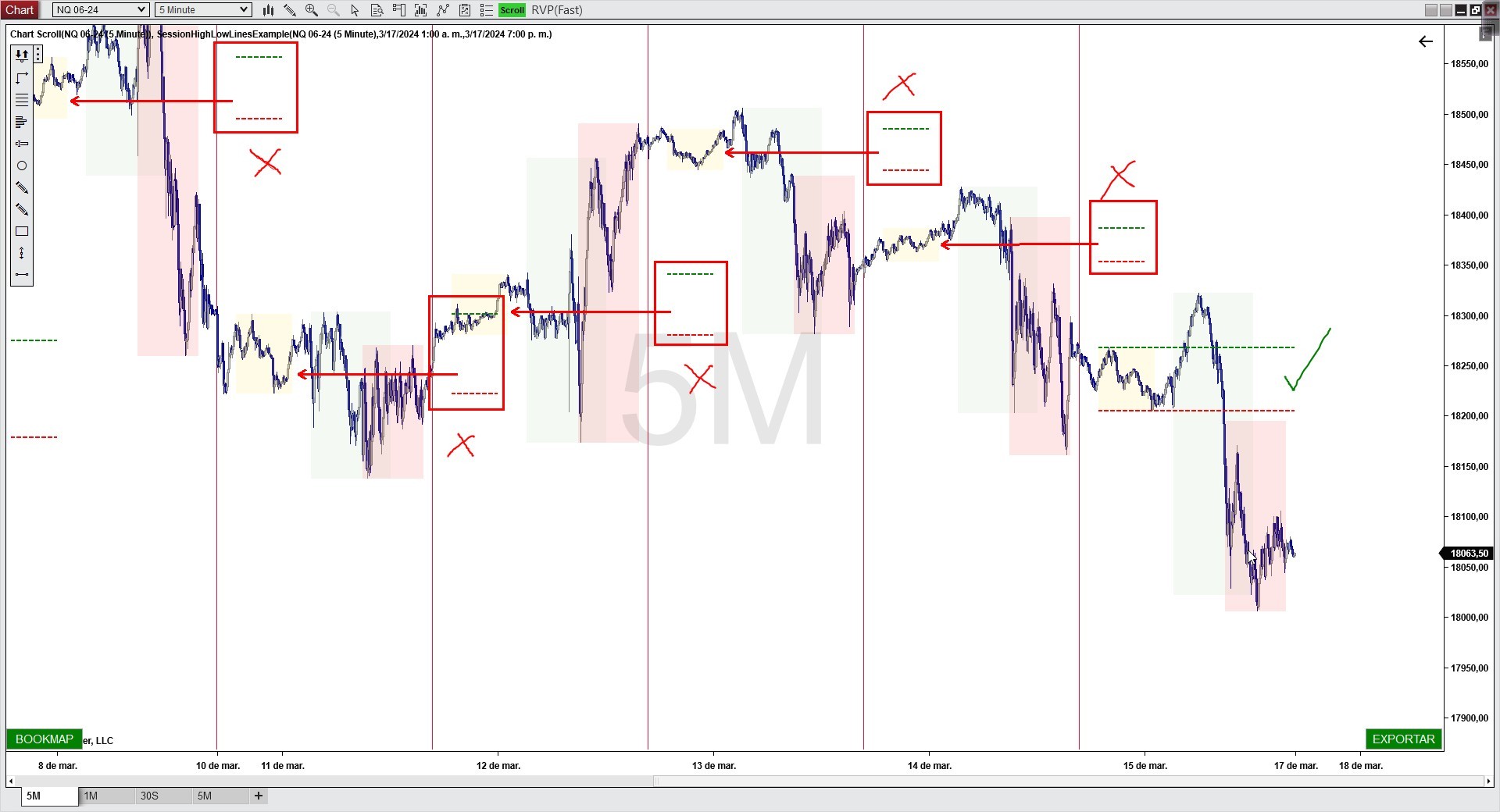

Hello, I was looking for an indicator to mark the highest and lowest points of the Asian session, I found this on the forums (From https://forum.ninjatrader.com/forum/...on-range-lines), but I have a problem, the lines of the previous sessions are displaced, how can i correct this problem?
Code:
#region Using declarations
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.ComponentModel.DataAnnotations;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Input;
using System.Windows.Media;
using System.Xml.Serialization;
using NinjaTrader.Cbi;
using NinjaTrader.Gui;
using NinjaTrader.Gui.Chart;
using NinjaTrader.Gui.SuperDom;
using NinjaTrader.Gui.Tools;
using NinjaTrader.Data;
using NinjaTrader.NinjaScript;
using NinjaTrader.Core.FloatingPoint;
using NinjaTrader.NinjaScript.DrawingTools;
#endregion
//This namespace holds Indicators in this folder and is required. Do not change it.
namespace NinjaTrader.NinjaScript.Indicators
{
public class SessionHighLowLinesExample : Indicator
{
private int StartBar;
private int SessionBarsAgo;
private int TodayEndBar;
private double LowestLow;
private double HighestHigh;
private DateTime TodayStart;
protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
Description = @"Enter the description for your new custom Indicator here.";
Name = "SessionHighLowLinesExample";
Calculate = Calculate.OnBarClose;
IsOverlay = true;
DisplayInDataBox = true;
DrawOnPricePanel = true;
DrawHorizontalGridLines = true;
DrawVerticalGridLines = true;
PaintPriceMarkers = true;
ScaleJustification = NinjaTrader.Gui.Chart.ScaleJustification.Right;
//Disable this property if your indicator requires custom values that cumulate with each new market data event.
//See Help Guide for additional information.
IsSuspendedWhileInactive = true;
SessionStart = DateTime.Parse("19:00", System.Globalization.CultureInfo.InvariantCulture);
SessionEnd = DateTime.Parse("13:00", System.Globalization.CultureInfo.InvariantCulture);
}
else if (State == State.Configure)
{
AddDataSeries(BarsPeriodType.Minute, 1);
}
}
protected override void OnBarUpdate()
{
if(BarsInProgress == 1)
{
if(Times[1][0].TimeOfDay == SessionStart.TimeOfDay)
{
StartBar = CurrentBars[1];
TodayStart = Times[1][0];
}
if(Times[1][0].TimeOfDay == SessionEnd.TimeOfDay)
{
SessionBarsAgo = CurrentBars[1] - StartBar;
TodayEndBar = CurrentBars[1];
HighestHigh = MAX(Highs[1], SessionBarsAgo)[0];
LowestLow = MIN(Lows[1], SessionBarsAgo)[0];
}
if(Times[1][0].TimeOfDay > SessionEnd.TimeOfDay)
{
Draw.Line(this, TodayEndBar.ToString()+"High", false, TodayStart, HighestHigh, Times[1][0], HighestHigh, Brushes.Green, DashStyleHelper.Dash, 2);
Draw.Line(this, TodayEndBar.ToString()+"Low", false, TodayStart, LowestLow, Times[1][0], LowestLow, Brushes.Red, DashStyleHelper.Dash, 2);
}
}
}
#region Properties
[NinjaScriptProperty]
[PropertyEditor("NinjaTrader.Gui.Tools.TimeEditorKey")]
[Display(Name="SessionStart", Order=1, GroupName="Parameters")]
public DateTime SessionStart
{ get; set; }
[NinjaScriptProperty]
[PropertyEditor("NinjaTrader.Gui.Tools.TimeEditorKey")]
[Display(Name="SessionEnd", Order=2, GroupName="Parameters")]
public DateTime SessionEnd
{ get; set; }
#endregion
}
}
#region NinjaScript generated code. Neither change nor remove.
namespace NinjaTrader.NinjaScript.Indicators
{
public partial class Indicator : NinjaTrader.Gui.NinjaScript.IndicatorRenderBase
{
private SessionHighLowLinesExample[] cacheSessionHighLowLinesExample;
public SessionHighLowLinesExample SessionHighLowLinesExample(DateTime sessionStart, DateTime sessionEnd)
{
return SessionHighLowLinesExample(Input, sessionStart, sessionEnd);
}
public SessionHighLowLinesExample SessionHighLowLinesExample(ISeries<double> input, DateTime sessionStart, DateTime sessionEnd)
{
if (cacheSessionHighLowLinesExample != null)
for (int idx = 0; idx < cacheSessionHighLowLinesExample.Length; idx++)
if (cacheSessionHighLowLinesExample[idx] != null && cacheSessionHighLowLinesExample[idx].SessionStart == sessionStart && cacheSessionHighLowLinesExample[idx].SessionEnd == sessionEnd && cacheSessionHighLowLinesExample[idx].EqualsInput(input))
return cacheSessionHighLowLinesExample[idx];
return CacheIndicator<SessionHighLowLinesExample>(new SessionHighLowLinesExample(){ SessionStart = sessionStart, SessionEnd = sessionEnd }, input, ref cacheSessionHighLowLinesExample);
}
}
}
namespace NinjaTrader.NinjaScript.MarketAnalyzerColumns
{
public partial class MarketAnalyzerColumn : MarketAnalyzerColumnBase
{
public Indicators.SessionHighLowLinesExample SessionHighLowLinesExample(DateTime sessionStart, DateTime sessionEnd)
{
return indicator.SessionHighLowLinesExample(Input, sessionStart, sessionEnd);
}
public Indicators.SessionHighLowLinesExample SessionHighLowLinesExample(ISeries<double> input , DateTime sessionStart, DateTime sessionEnd)
{
return indicator.SessionHighLowLinesExample(input, sessionStart, sessionEnd);
}
}
}
namespace NinjaTrader.NinjaScript.Strategies
{
public partial class Strategy : NinjaTrader.Gui.NinjaScript.StrategyRenderBase
{
public Indicators.SessionHighLowLinesExample SessionHighLowLinesExample(DateTime sessionStart, DateTime sessionEnd)
{
return indicator.SessionHighLowLinesExample(Input, sessionStart, sessionEnd);
}
public Indicators.SessionHighLowLinesExample SessionHighLowLinesExample(ISeries<double> input , DateTime sessionStart, DateTime sessionEnd)
{
return indicator.SessionHighLowLinesExample(input, sessionStart, sessionEnd);
}
}
}
#endregion
