Indicator that Plots a given value

[axelbaws]

Hi,


Since IsOverlay isn't dynamic, I am trying to develop an indicator that takes a double value in a method ("UpdatePlot") and plots the value. This way, I figure I can plot the things that I want with an Overlay using "AddPlot", and the things I want in a separate window using this indicator called "PlotValue". I come up with the following code for my indicator:

namespace NinjaTrader.NinjaScript.Indicators
{
    public class PlotValue : Indicator
    {
        private Series<double>        plotValue;

        protected override void OnStateChange()
        {
            if (State == State.SetDefaults)
            {
                Description                                    = @"Plots the value given to it in an extra Method UpdatePlot";
                Name                                        = "PlotValue";
                Calculate                                    = Calculate.OnBarClose;
                IsOverlay                                    = false;
                DisplayInDataBox                            = true;
                DrawOnPricePanel                            = true;
                DrawHorizontalGridLines                        = true;
                DrawVerticalGridLines                        = true;
                PaintPriceMarkers                            = true;
                ScaleJustification                            = NinjaTrader.Gui.Chart.ScaleJustification.Right;
                //Disable this property if your indicator requires custom values that cumulate with each new market data event.
                //See Help Guide for additional information.
                IsSuspendedWhileInactive                    = true;
                AddPlot(Brushes.Orange, "Value");
            }
            else if (State == State.Configure)
            {
            }
            else if (State == State.DataLoaded)
            {
                plotValue    = new Series<double>(this);
            }
        }

        public void UpdatePlot(double input){
            plotValue[0] = input;
        }

        protected override void OnBarUpdate()
        {
            Value[0] = plotValue[0];
        }

        #region Properties

        [Browsable(false)]
        [XmlIgnore]
        public Series<double> Value
        {
            get { return Values[0]; }
        }
        #endregion

    }
}​

I try to test this indicator in a strategy "TestStrategy" using Close[0] as my argument input:

namespace NinjaTrader.NinjaScript.Strategies
{
    public class TestStrategy : Strategy
    {
        private PlotValue PlotValue1;

        protected override void OnStateChange()
        {
            if (State == State.SetDefaults)
            {
                Description                                    = @"Enter the description for your new custom Strategy here.";
                Name                                        = "TestStrategy";
                Calculate                                    = Calculate.OnBarClose;
                EntriesPerDirection                            = 1;
                EntryHandling                                = EntryHandling.AllEntries;
                IsExitOnSessionCloseStrategy                = true;
                ExitOnSessionCloseSeconds                    = 30;
                IsFillLimitOnTouch                            = false;
                MaximumBarsLookBack                            = MaximumBarsLookBack.TwoHundredFiftySix;
                OrderFillResolution                            = OrderFillResolution.Standard;
                Slippage                                    = 0;
                StartBehavior                                = StartBehavior.WaitUntilFlat;
                TimeInForce                                    = TimeInForce.Gtc;
                TraceOrders                                    = false;
                RealtimeErrorHandling                        = RealtimeErrorHandling.StopCancelClose;
                StopTargetHandling                            = StopTargetHandling.PerEntryExecution;
                BarsRequiredToTrade                            = 20;
                // Disable this property for performance gains in Strategy Analyzer optimizations
                // See the Help Guide for additional information
                IsInstantiatedOnEachOptimizationIteration    = true;
            }
            else if (State == State.Configure)
            {
            }
            else if (State == State.DataLoaded)
            {
                PlotValue1 = PlotValue();
                AddChartIndicator(PlotValue1);
            }
        }

        protected override void OnBarUpdate()
        {
            PlotValue1.UpdatePlot(Close[0]);
        }
    }
}​

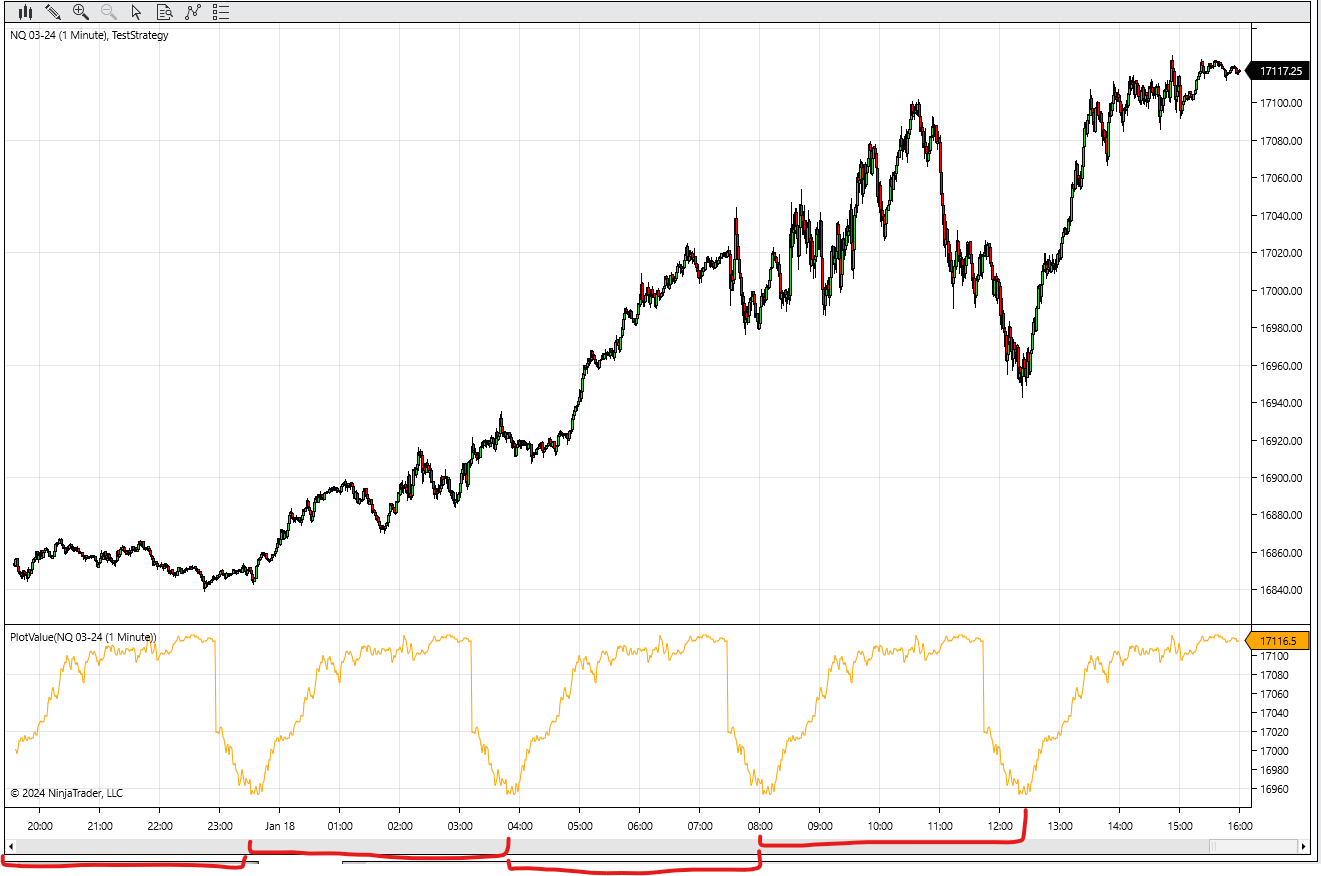

Now this is where it gets tricky for me. I inspect the results in a chart:


My indicator seems to work, but only for the last couple of bars. "Earlier" I seem to get the same data, repeated cyclically.


I wonder if anyone has any clue why this might happen? What are some steps I can take to solve it? Is there a better way for me to do this?


Sincerely,
Axel

[NinjaTrader_Jesse]

Hello axelbaws,

Rather than having the strategy set a value in the indicator it would be best to have the indicator pull a value from the strategy and plot it. You can see an example of that concept in the following link:

https://ninjatrader.com/support/helpGuides/nt8/plotting_from_within_a_ninjasc.htm

[axelbaws]

Hello axelbaws,

Rather than having the strategy set a value in the indicator it would be best to have the indicator pull a value from the strategy and plot it. You can see an example of that concept in the following link:

https://ninjatrader.com/support/help..._a_ninjasc.htm

Hi Jesse,


That is definitely a better way to do what I was trying to! Thank you very much for the quick reply and the great example - exactly what I was looking for!


Have a nice weekend,
Axel

[axelbaws]

Hello axelbaws,

Rather than having the strategy set a value in the indicator it would be best to have the indicator pull a value from the strategy and plot it. You can see an example of that concept in the following link:

Here is a small update. Earlier today I implement the indicator as per the example provided. I run into the same problem as with my own indicator.

After much frustration I realise that the problem is me setting "Maximum bars look back" to 256. I change it to "Infinite". After this both indicators works as they should!


In the end I go for my own indicator as it is Strategy agnostic.
