HAMAVeroot Indicator Transfer from TD Ameri to NT8 HELP

[chasep7328]

Hello all,

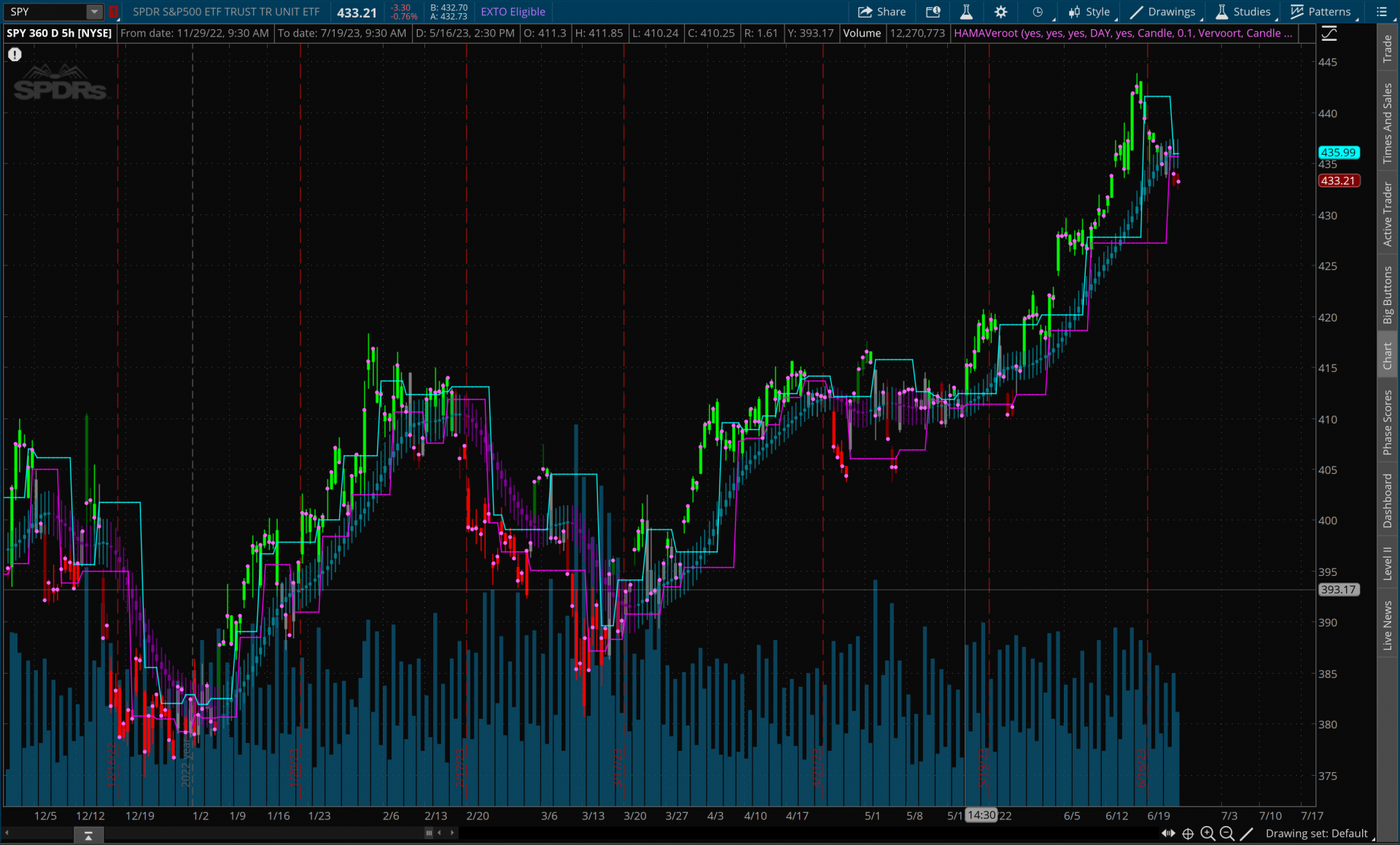

I have a rather interesting indicator that I use to spot swing trades on TD Ameritrade and would like to have it transferred over to NT8 for visual use and also have it usable in a backtesting strategy for the system if possible. Attached is a picture of what it looks like and the code for it. I like to buy once the price closes above the blue line and create a stop once the price closes back below the blue line in up trends (vice versa for the purple line at the bottom for shorts). I also like to have the ability to just trade once the color of the current bar changes to either green/red and trade in that given direction, put a stop at the high/low from the previous bar before the color change, or simply exit the trade once the current bar turns grey again. I don't have much coding experience to transfer it over but does anyone else know where to start? Thanks.

plot Data = close;
#// © wallneradam
#indicator("Heiken Ashi Swing High/Low with Smoothed HA"
# Created and mod by Sam4@Samer800 based on @wallneradam code - 11/2022
# Updated - Added differnt candleType and style - Sam4@Samer800 11/2022
input showPricePlot = yes;
input ColorBars = no;
input useChartTime = yes;
input Aggregation = AggregationPeriod.FIFTEEN_MIN;
input ShowBand = yes;
input HeikenAshiStyle = {Default "Don't Show", "Candle", "Parabolic"};
input ParabolicPercent = 0.2; # Parabolic Squeeze Percent
input candleCalcType = {Default "Default", "Valcu", "Vervoort"};
input SourceCalcMethod = {Default "High/Low", "Candle Close"};
input ShowWick = yes;
input PaintHaCandle = no;
input smoothMaType = {default EMA, SMA, WMA, TEMA, LSMA, VWMA, HMA, ALMA};
input MaSmoothLength = 1;
input smoothLength = 10; # "Smooth Length"
input afterSmoothMaType = {default EMA, SMA, WMA, TEMA, LSMA, VWMA, HMA, ALMA};
input afterSmoothLength = 10;#

hidePricePlot(!showPricePlot);
def na = Double.NaN;
def HeikStyle = if HeikenAshiStyle==HeikenAshiStyle."Candle" then 2 else
if HeikenAshiStyle==HeikenAshiStyle."Parabolic" then 1 else 0;
#def chartTime = GetAggregationPeriod();
def mtfc = if(useChartTime,close,close(Period=Aggregation));
def mtfh = if(useChartTime,high,high(Period=Aggregation));
def mtfl = if(useChartTime,low,low(Period=Aggregation));
def mtfo = if(useChartTime,open,open(Period=Aggregation));
#// ] -------------- FUNCTIONS : Moving Avg ------------------ [
export tema(float src, simple int len)=>
script tema {
input src = close;
input len = 14;
def ema1 = ExpAverage(src, len);
def ema2 = ExpAverage(ema1, len);
def ema3 = ExpAverage(ema2, len);
def tema = 3 * (ema1 - ema2) + ema3;
plot return = tema;
}
#vwma(source, length)
script VWMA {
input x = close;
input y = 15;
def VWMA = SimpleMovingAvg(x * volume, y) / SimpleMovingAvg(volume, y);
Plot result = VWMA;
}
script ALMA {
input Data = close;
input Window = 9;
input Sigma = 6;
input Offset = 0.85;
def m = (Offset * (Window - 1));
def s = Window/Sigma;
def SumVectorData = fold y = 0 to Window with WS do
WS + Exp(-(sqr(y-m))/(2*sqr(s))) * getvalue(Data, (Window-1)-y);
def SumVector = fold z = 0 to Window with CW do
CW + Exp(-(sqr(z-m))/(2*sqr(s)));
plot ALMA = SumVectorData / SumVector;
}
export multiMa(float source, simple int length, string type) =>
script anyma {
input source = close;
input length = 14;
input type = "SMA";
def multiMa =
if type == "SMA" then SimpleMovingAvg(source, length) else
if type == "EMA" then ExpAverage(source, length) else
if type == "SMMA" then WildersAverage(source, length) else
if type == "WMA" then WMA(source, length) else
if type == "TEMA" then TEMA(source, length) else
if type == "LSMA" then Inertia(source, length) else
if type == "ALMA" then ALMA(source, length) else
if type == "VWMA" then VWMA(source, length) else
if type == "HMA" then HullMovingAvg(source, length ) else Double.NaN;
plot return = multiMa;
}
#heiken_ashi(simple int smooth_length = 1, simple string smooth_ma_type = "EMA",
script heiken_ashi {
input src_open = open;
input src_close = close;
input src_high = high;
input src_low = low;
input after_smooth_length = 10;
input after_smooth_ma_type = yes;
input wick = yes;
def haopen = src_open;
def haclose= src_close;
def hahigh = src_high;
def halow = src_low;
def hiWick = if(wick,hahigh,haclose);
def loWick = if(wick,halow,haopen);
def SmoothO = anyma(haopen, after_smooth_length, after_smooth_ma_type);
def SmoothH = anyma(hiWick, after_smooth_length, after_smooth_ma_type);
def SmoothL = anyma(loWick, after_smooth_length, after_smooth_ma_type);
def SmoothC = anyma(haclose,after_smooth_length, after_smooth_ma_type);
def dir = SmoothO>SmoothC;
plot OpenHA = SmoothO;
plot HighHA = if(!dir,SmoothH,if(wick,SmoothH,SmoothO));
plot LowHA = if(dir,SmoothL,if(wick,SmoothL,SmoothO));
plot CloseHA = SmoothC;
}
def haopen; def haclose; def hahigh; def halow;
def mao = anyma(mtfo, MaSmoothLength, smoothMaType);
def mah = anyma(mtfh, MaSmoothLength, smoothMaType);
def mal = anyma(mtfl, MaSmoothLength, smoothMaType);
def mac = anyma(mtfc, MaSmoothLength, smoothMaType);
switch(candleCalcType) {
case "Default":
haclose = (mao + mah + mal + mac) / 4.0;
haopen = CompoundValue(1, (haOpen[1] + haClose[1]) / 2, haClose);
hahigh = Max(mah,Max(haopen, haclose));
halow = Min(mal,Min(haopen, haclose));
case "Valcu":
haOpen = CompoundValue(1, ((haOpen[1] + (mao + mah + mal + mac)/4.0)/2.0), mao);
haClose = (mao + mah + mal + mac)/4.0;
hahigh = Max(mah,Max(haopen, haclose));
halow = Min(mal,Min(haopen, haclose));
case "Vervoort":
haOpen = CompoundValue(1, ((haOpen[1] + (mao + mah + mal + mac)/4.0)/2.0), mao);
haClose = ((mao + mah + mal + mac)/4.0 + haOpen + Max(mah, haOpen) + Min(mal, haOpen))/4.0;
hahigh = Max(mah,Max(haopen, haclose));
halow = Min(mal,Min(haopen, haclose));
}
def o = haOpen;
def h = hahigh;
def l = halow;
def c = haClose;

def upper;
def lower;

if c[1] > o[1] and c < o {
upper = if(SourceCalcMethod==SourceCalcMethod."High/Low", mtfh[1], c[1]);
lower = lower[1];
} else {
if c[1] < o[1] and c > o {
upper = upper[1];
lower = if(SourceCalcMethod==SourceCalcMethod."High/Low", mtfl[1], o[1]);
} else {
upper = upper[1];
lower = lower[1];
}}

plot UpBand = if !ShowBand or isNaN(mtfc) then na else upper; # "Upper"
plot LoBand = if !ShowBand or isNaN(mtfc) then na else lower; # "Lower"
UpBand.SetDefaultColor(Color.CYAN);
LoBand.SetDefaultColor(Color.MAGENTA);

#--- Smoothed
# Plot the new Chart
def smO = anyma(o, smoothLength, smoothMaType);;
def smH = anyma(h, smoothLength, smoothMaType);;
def smL = anyma(l, smoothLength, smoothMaType);;
def smC = anyma(c, smoothLength, smoothMaType);;

def HAo = heiken_ashi(smO,smC,smH,smL,afterSmoothLength,afte rSmoothMaType,ShowWick).OpenHA;
def HAh = heiken_ashi(smO,smC,smH,smL,afterSmoothLength,afte rSmoothMaType,ShowWick).HighHA;
def HAl = heiken_ashi(smO,smC,smH,smL,afterSmoothLength,afte rSmoothMaType,ShowWick).LowHA;
def HAc = heiken_ashi(smO,smC,smH,smL,afterSmoothLength,afte rSmoothMaType,ShowWick).CloseHA;

def dir = HAo>HAc;
AddChart(high = if HeikStyle==2 and !dir then HAh else na , low = HAl ,
open = if(PaintHaCandle,HAc,HAo), close = if(PaintHaCandle,HAo,HAc),
type = ChartType.CANDLE, growcolor = CreateColor(4,127,145));

AddChart(high = if HeikStyle==2 and dir then HAh else na , low = HAl ,
open = if(PaintHaCandle,HAo,HAc), close = if(PaintHaCandle,HAc,HAo),
type = ChartType.CANDLE, growcolor = CreateColor(123,3,143));

#--- Par Calc

def percentHL = ((HAo - HAc) / ((HAo + HAc)/2)) * 100;

def high_squeeze= AbsValue(percentHL) < ParabolicPercent and percentHL>0;
def low_squeeze = AbsValue(percentHL) < ParabolicPercent and percentHL<0;

def crossPlot;
if dir {
crossPlot = HAh;
} else {
crossPlot = HAl; }
def o2_cross_under_long = crosses(HAo,HAc, CrossingDirection.BELOW);
def c2_cross_over_short = crosses(HAo,HAc, CrossingDirection.ABOVE);

def plotColor = if high_squeeze then -1 else
if low_squeeze then 1 else
if !dir then 2 else -2;

plot haLine = if(HeikStyle!=1, na, crossPlot);#, color = plotColor, style = plot.style_cross, linewidth = 2)
haLine.SetStyle(Curve.POINTS);
haLine.AssignValueColor(if plotColor==-1 then Color.DARK_RED else
if plotColor==1 then Color.DARK_GREEN else
if plotColor==2 then Color.GREEN else Color.RED);

#---- Bar Color---
AssignPriceColor(if !ColorBars or HeikStyle==1 then Color.CURRENT else
if mtfc>HAh and !dir then color.GREEN else
if mtfc>HAh and dir then color.DARK_GREEN else
if mtfc<HAl and dir then Color.RED else
if mtfc<HAl and !dir then Color.DARK_RED else Color.GRAY);

AssignPriceColor(if !ColorBars or HeikStyle!=1 then Color.CURRENT else
if plotColor==2 then Color.GREEN else
if plotColor==1 then Color.Dark_GREEN else
if plotColor==-1 then Color.DARK_RED else Color.RED);

#---END CODE

[NinjaTrader_BrandonH]

Hello chasep7328,

Thanks for your post.

The C# programming language is used for developing NinjaScript indicators and strategies.

To create a NinjaScript indicator, open a New > NinjaScript Editor window, select the '+' tab at the bottom of the Editor window, select 'New Indicator'. Then, you could set up as much of the indicator as possible in the Indicator Builder. This will create the framework of the indicator or strategy

Once you finish setting up as much as possible in the Indicator Builder, you must manually program the rest of the indicator.

When first starting to convert scripts, you should open the TD Ameritrade developer help guide and the NinjaTrader 8 help guide so that you could compare methods and properties between the two platforms. The majority of code supported by NinjaTrader is included in the help guides.

Below is a link to a forum post with helpful information about getting started with NinjaScript.
https://ninjatrader.com/support/foru...040#post786040

Here is a link to our publicly available training video, 'NinjaScript Editor 401', for you to view at your own convenience.

NinjaScript Editor 401 - https://youtu.be/H7aDpWoWUQs?list=PL...We0Nf&index=14

I am also linking you to the Educational Resources section of the Help Guide to help you get started with NinjaScript:
https://ninjatrader.com/support/help..._resources.htm

If you are new to C#, to get a basic foundation for the concepts and syntax used in NinjaScript I would recommend this section of articles in our help guide first:
https://ninjatrader.com/support/help...g_concepts.htm

And the MSDN (Microsft Developers Network) C# Language Reference.
https://ninjatrader.com/support/help...erence_wip.htm

You can also contact a professional NinjaScript Consultant who would be eager to create or modify this script at your request or assist you with your script. The NinjaTrader Ecosystem has affiliate contacts who provide educational as well as consulting services. To find a list of affiliate consultants who would be happy to create this script or any others at your request, please see the link below.

NinjaTrader Ecosystem: https://ninjatraderecosystem.com/search-results/?



The NinjaTrader Ecosystem website is for educational and informational purposes only and should not be considered a solicitation to buy or sell a futures contract or make any other type of investment decision. The add-ons listed on this website are not to be considered a recommendation and it is the reader's responsibility to evaluate any product, service, or company. NinjaTrader Ecosystem LLC is not responsible for the accuracy or content of any product, service or company linked to on this website.
