price and repeated count overlap

[alagu]

using System.Collections.Generic;
using System.Windows.Media;
using NinjaTrader.Gui.Chart;
using NinjaTrader.NinjaScript;
using NinjaTrader.NinjaScript.DrawingTools;
using GuiTools = NinjaTrader.Gui.Tools;

namespace NinjaTrader.NinjaScript.Indicators
{
public class PriceLevelCounter : Indicator
{
private Dictionary<double, int> tickCounts;

protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
Description = "Price Level Counter";
Name = "PriceLevelCounter";
IsOverlay = false;
DisplayInDataBox = true;
Calculate = Calculate.OnPriceChange;
}
else if (State == State.DataLoaded)
{
tickCounts = new Dictionary<double, int>();
}
}

protected override void OnBarUpdate()
{
if (tickCounts.ContainsKey(Close[0]))
{
tickCounts[Close[0]]++;
}
else
{
tickCounts.Add(Close[0], 1);
}
}

protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
{
int count = 0;
foreach (var kvp in tickCounts)
{
double priceLevel = kvp.Key;
count++;

string text = string.Format("{0}: {1}", priceLevel, kvp.Value);
Draw.TextFixed(this, "Count" + count, text, TextPosition.BottomRight, Brushes.White, new GuiTools.SimpleFont("Arial", 8), Brushes.Transparent, Brushes.Transparent, 0);
}
}
}
}
-------------------------------------------------------------------------------------

i am plan to design my indicator is each price level how many time LTP repeated and repeated count

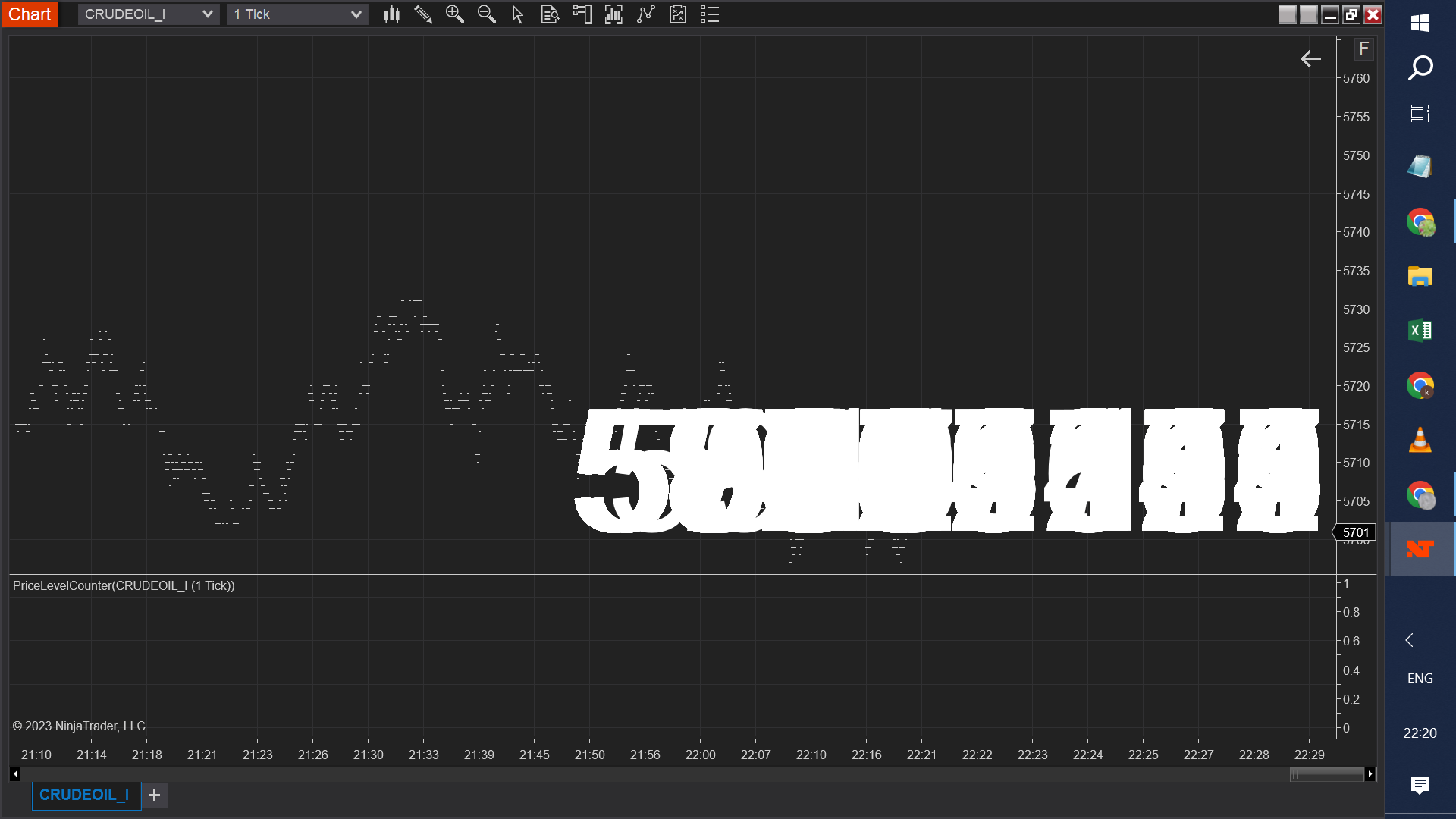

but price and repeated count overlap . (for your clear view i put in 300px).pls how to solve this overlap

i want this type of output in my chart

5040 304
5041 234
5043 221
5044 231
5045 199
....... .....
....... .....
....... .....
....... .....
....... .....

[NinjaTrader_ChelseaB]

Hello alagu,

Its not recommended to call Drawing objects in OnRender(). You should only be rendering with SharpDX (using RenderTarget.DrawText()) in OnRender().

https://ninjatrader.com/support/helpGuides/nt8/sharpdx_direct2d1_rendertarget_drawtext.htm

Call drawing objects like Draw.TextFixed() from OnBarUpdate().

In your for loop, instead of making separate strings, concatenate new lines to an existing string using \r\n to make new lines.

string myString = string.Empty;

for (int i = 0; i < 2; i++)
{
myString += "\r\nNew Line " + i.ToString();
}

// myString now has 3 lines
