my chart indicator section not showing my indecator name

[alagu]

my script compile without error .but in my chart indicator section not showing my indecator name. pls tell me how solve this

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

i would plan to design this indicator for each and every tick by tick LTP how many times repeated and it will be counted.

ex.
LTP | LTP repeated count
1879 | 34
1881 | 38
1885 | 60
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
using System.Collections.Generic;
using System.Windows.Media;
using NinjaTrader.NinjaScript;
using NinjaTrader.NinjaScript.Indicators;

namespace NinjaTrader.NinjaScript.Strategies
{
public class TickRepetitionCounter : Strategy
{
private Dictionary<double, int> tickCounts;
private double lastTickValue;

protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
Description = "Tick Repetition Counter";
Name = "TickRepetitionCounter";
Calculate = Calculate.OnEachTick;
IsFillLimitOnTouch = false;
BarsRequiredToTrade = 1;
tickCounts = new Dictionary<double, int>();
}
}

protected override void OnBarUpdate()
{
double currentTickValue = Close[0];

if (tickCounts.ContainsKey(currentTickValue))
{
tickCounts[currentTickValue]++;
}
else
{
tickCounts.Add(currentTickValue, 1);
}

lastTickValue = currentTickValue;

PrintTickCounts();
}

private void PrintTickCounts()
{
ClearOutputWindow();

foreach (KeyValuePair<double, int> tickCount in tickCounts)
{
Print("Value: " + tickCount.Key + "\tNumber of Times Repeated: " + tickCount.Value);
}
}

private void ClearOutputWindow()
{
for (int i = 0; i < 100; i++)
{
Print("");
}
}
}
}

[NinjaTrader_ChelseaB]

Hello alagu,

Is there an error appearing on the Log tab of the Control Center?

Have you erased the label in the Indicators window?

[alagu]

hi chelsea , modified same changes in my script .so that problem was solve now appare indicator in my chart . but i facing new issue on indicator not showing real time value repeated count it show's same random number . i am attact screenshot for you ref . pls tell how to solve this

-------------------------------------------------------------------

using System;
using System.Collections.Generic;
using System.Windows.Media;
using NinjaTrader.NinjaScript;
using NinjaTrader.NinjaScript.DrawingTools;
using NinjaTrader.NinjaScript.Indicators;

namespace NinjaTrader.NinjaScript.Indicators
{
public class TickRepetitionCounter : Indicator
{
private Dictionary<double, int> tickCounts;
private double lastTickValue;
private DateTime lastTradingDate;

protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
Description = "Tick Repetition Counter";
Name = "TickRepetitionCounter";
Calculate = Calculate.OnEachTick;
IsOverlay = true;
tickCounts = new Dictionary<double, int>();
}
}

protected override void OnBarUpdate()
{
DateTime currentTradingDate = Time[0].Date;

if (currentTradingDate != lastTradingDate)
{
tickCounts.Clear();
lastTradingDate = currentTradingDate;
}

double currentTickValue = Close[0];

int currentTickCount = tickCounts.ContainsKey(currentTickValue) ? tickCounts[currentTickValue] : 0;
tickCounts[currentTickValue] = currentTickCount + 1;

lastTickValue = currentTickValue;

PrintTickCounts();
}

private void PrintTickCounts()
{
RemoveDrawObjects();

int yOffset = 0;

foreach (KeyValuePair<double, int> tickCount in tickCounts)
{
string label = "Value: " + tickCount.Key + "\tNumber of Times Repeated: " + tickCount.Value;

Draw.Text(this, label, yOffset.ToString(), 0, tickCount.Key, Brushes.White);
yOffset -= 15;
}
}
}
}

[NinjaTrader_ChelseaB]

Hello alagu,

It appears you are assigning currentTickCount to the Close[0] which is the market price.
Then you add one to this and save the value to the key of the market price.

Is this what you are trying to achieve? You want a dictionary of market price keys that have a value of the market price plus 1?

[alagu]

already modified this code many time. but still this code provided what evary i want that thinks .i you don't mind pls check and reprogram this code

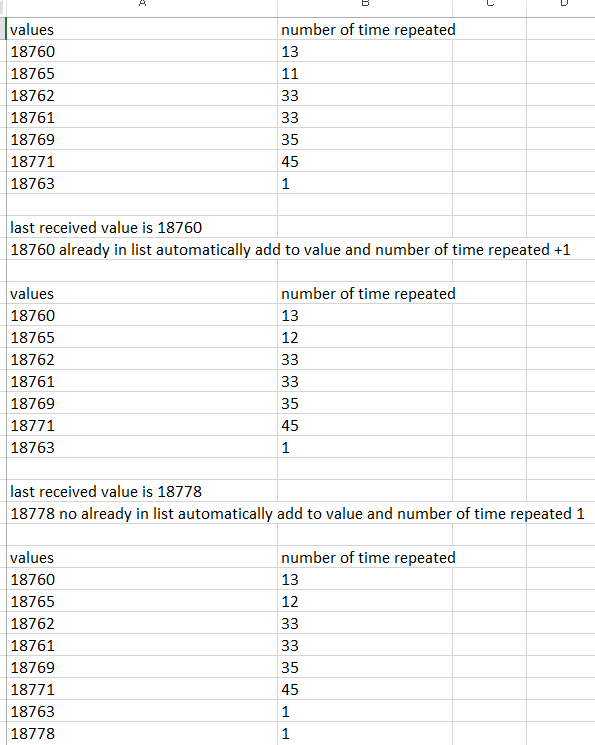

i want real time each and evary value how many time repeated .for your ref pls view attached fig



---------------------------------------------------------------------------------------------------------------------------------------------------------------

using System;
using System.Collections.Generic;
using System.Windows.Media;
using NinjaTrader.NinjaScript;
using NinjaTrader.NinjaScript.DrawingTools;
using NinjaTrader.NinjaScript.Indicators;

namespace NinjaTrader.NinjaScript.Indicators
{
public class TickRepetitionCounter : Indicator
{
private Dictionary<double, int> tickCounts;
private double lastTickValue;
private DateTime lastTradingDate;

protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
Description = "Tick Repetition Counter";
Name = "TickRepetitionCounter";
Calculate = Calculate.OnEachTick;
IsOverlay = true;
tickCounts = new Dictionary<double, int>();
}
}

protected override void OnBarUpdate()
{
DateTime currentTradingDate = Time[0].Date;

if (currentTradingDate != lastTradingDate)
{
tickCounts.Clear();
lastTradingDate = currentTradingDate;
}

double currentTickValue = Close[0];

int currentTickCount = tickCounts.ContainsKey(currentTickValue) ? tickCounts[currentTickValue] : 0;
tickCounts[currentTickValue] = currentTickCount + 1;

lastTickValue = currentTickValue;

PrintTickCounts();
}

private void PrintTickCounts()
{
RemoveDrawObjects();

int yOffset = 0;

foreach (KeyValuePair<double, int> tickCount in tickCounts)
{
string label = "Value: " + tickCount.Key + "\tNumber of Times Repeated: " + tickCount.Value;

Draw.Text(this, label, yOffset.ToString(), 0, tickCount.Key, Brushes.White);
yOffset -= 15;
}
}
}
}

[NinjaTrader_ChelseaB]

Hello alagu,

I would not be able to reprogram the script for you, and instead can only offer guidance for you to modify the script yourself.

You can also contact a professional NinjaScript Consultant who would be eager to create or modify this script at your request or assist you with your script. The NinjaTrader Ecosystem has affiliate contacts who provide educational as well as consulting services. Please let me know if you would like a list of affiliate consultants who would be happy to create this script or any others at your request or provide one on one educational services.


Where you have mentioned:

i want real time each and evary value how many time repeated

Are you wanting to increment an integer each time a bar closes with a specific price?

if (tickCounts.ContainsKey(Close[0]))
{
tickCounts[Close[0]]++;
}
else
{
tickCounts.Add(Close[0], 1);
}

[alagu]

using System.Collections.Generic;
using System.Windows.Media;
using NinjaTrader.NinjaScript;
using NinjaTrader.NinjaScript.DrawingTools;
using NinjaTrader.NinjaScript.Indicators;

namespace NinjaTrader.NinjaScript.Indicators
{
public class TickRepetitionCounter : Indicator
{
private Dictionary<double, int> tickCounts;
private double lastTickValue;

protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
Description = "Tick Repetition Counter";
Name = "TickRepetitionCounter";
Calculate = Calculate.OnEachTick;
IsOverlay = true;
tickCounts = new Dictionary<double, int>();
}
}

protected override void OnBarUpdate()
{
if (CurrentBar == 0)
return;

if (tickCounts.ContainsKey(Close[0]))
{
tickCounts[Close[0]]++;
}
else
{
tickCounts.Add(Close[0], 1);
}

lastTickValue = Close[0];

PrintTickCounts();
}

private void PrintTickCounts()
{
RemoveDrawObjects();

int yOffset = 0;

foreach (KeyValuePair<double, int> tickCount in tickCounts)
{
string label = "Value: " + tickCount.Key + "\tNumber of Times Repeated: " + tickCount.Value;

Draw.Text(this, label, yOffset.ToString(), 0, tickCount.Key, Brushes.White);
yOffset -= 15;
}
}
}
}
-----------------------------------------------------------------------------------------------------------------
HI chelsea

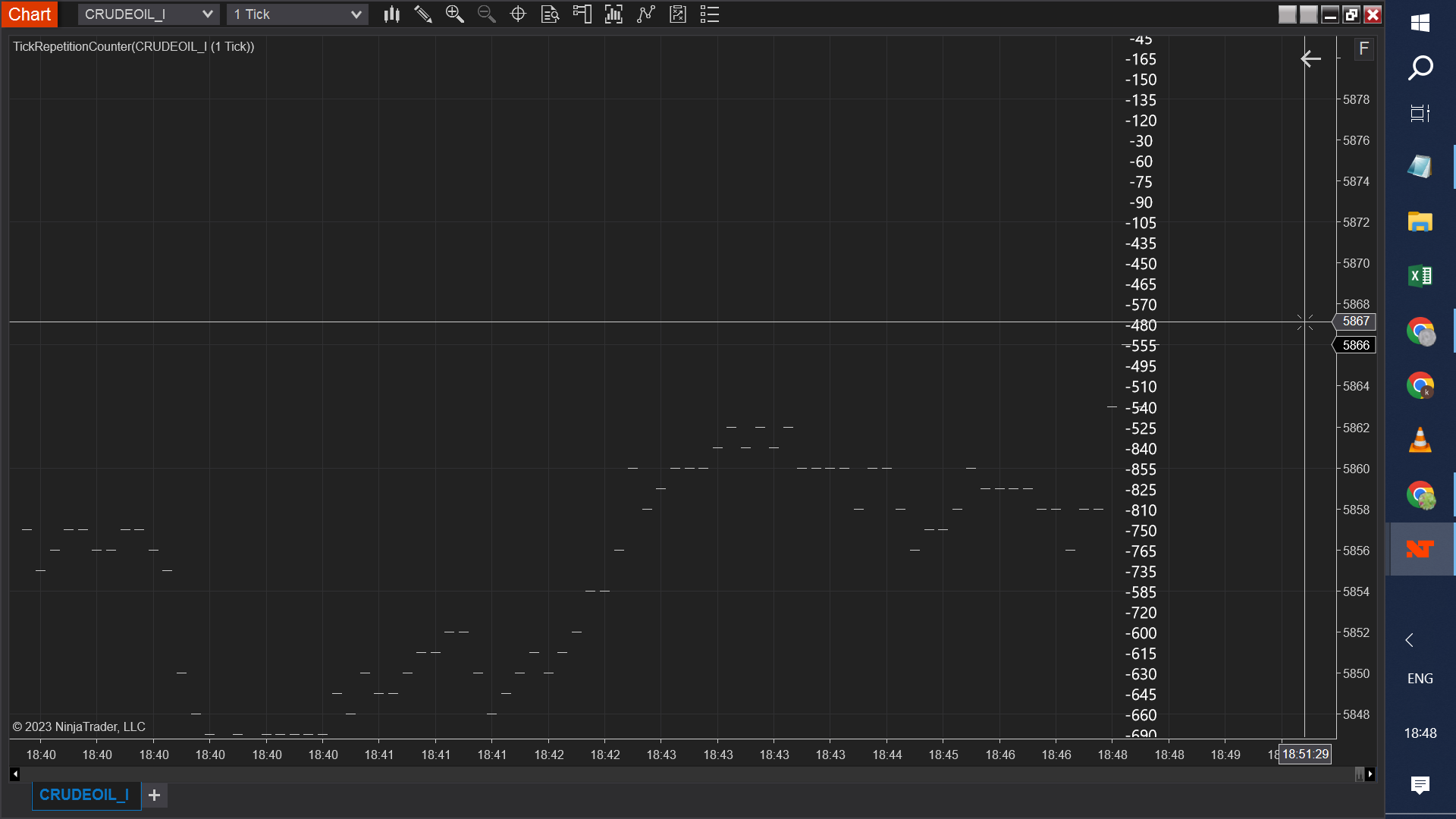

modified done . but still not show real value counts .indicator shows random value below attached fig.

[NinjaTrader_ChelseaB]

Hello alagu,

It appears you are using the tickCount.Key as the text. To confirm you are only wanting the price key to appear in the drawn text and not the Value?

The label you are using for the tagName of the drawing object. Is this appearing correctly in the DrawingObjects window for tag?
