how to prevent draw.dot to draw at the right of the right margin

[efeuvejota01]

Good afternoon!!
I would like to get rid of the drawings that remain at the right of the chart as I scroll it to the left

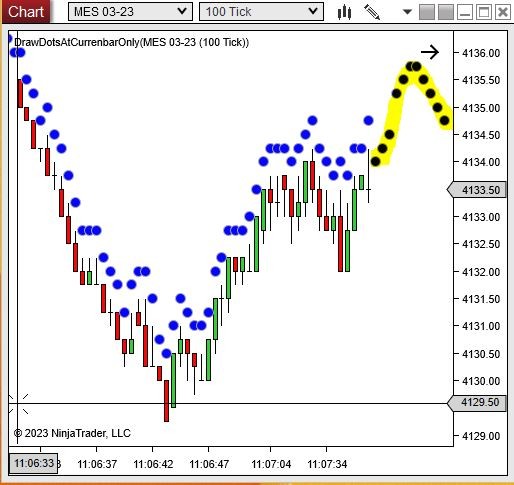

Attached is a screenshot of a simple example.
the dots marked with a yellow line are the ones that I would like to get rid of.

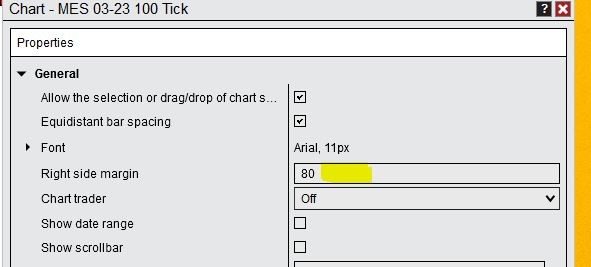

Also, I would like to keep the Right side margin as it is
Thank you very much!!

[StealthM93]

Hello NT Support,

Some of my custom indicators do the same as efeuvejota01 has shown.




This appears to happen for drawing individual items (arrows, dots, etc.), not the plots (lines) as shown.

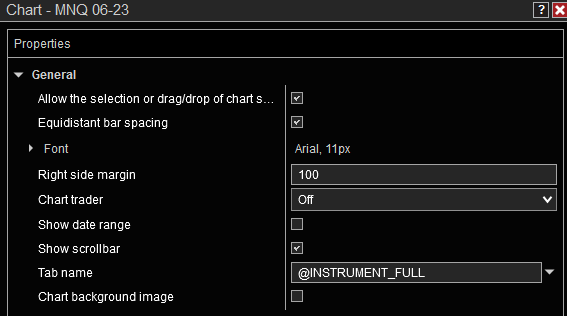

This has been happening for quite some time (8.0.25-ish or perhaps earlier?). I have been meaning to post but it doesn't bother me that much. However, with efeuvejota01 posting, I'll add my confirmation. My screenshots here are from 8.0.27.1.

Thanks,
Matt

[NinjaTrader_ChelseaB]

Hello efeuvejota01,

Unfortunately, our development has determined this is the expected behavior:

Intended since the property is for the margin of bar slots. Drawing object are drawn at 'exact' time/price coordinates not subject to margin which should match NT7.

We are tracking demand for "Consider drawing objects and plots when processing charts' Right-Side Margin property" with ID # SFT-685, to which I have added your vote.


Please note, we receive many requests and cannot reasonably implement all requested features or changes. Interest is tracked internally and if enough interest is tracked, it would be weighed against how feasible it would be to make those changes to consider implementing, so we cannot offer an ETA or promise of fulfillment.

When new features are implemented, they will be listed in the Release Notes page of the Help Guide. The ID number may be different than the internal feature request tracking ID, but the description of the feature will let you know if that feature has been implemented.

Release Notes - https://ninjatrader.com/support/help...ease_notes.htm


With a custom rendered ellipse, it would be possible to only render for the visible bars (ChartBars.FromIndex to ChartBars.ToIndex).
https://ninjatrader.com/support/help..._fromindex.htm
https://ninjatrader.com/support/foru...t786906

[StealthM93]

Thanks, NinjaTrader_ChelseaB Hopefully, you've added my vote, as well!

[NinjaTrader_ChelseaB]

Hello StealthM93,

I've added your vote to SFT-685.

[efeuvejota01]

Ok, Thank you Chelsea!!
FVJ

[mercatore]

Please add my vote to this as well. Not to have this as the default setting, but as an option that users can toggle based on their trading requirements they have. it would be great to have the option to select that anything on the chart respect the right side chart margin setting. Thanks!

[NinjaTrader_ChelseaB]

Hello mercatore,

Welcome to the NinjaTrader forums!

I've added your vote to SFT-685.
