Changing Z-Order when object not selectable

[paypachaysa]

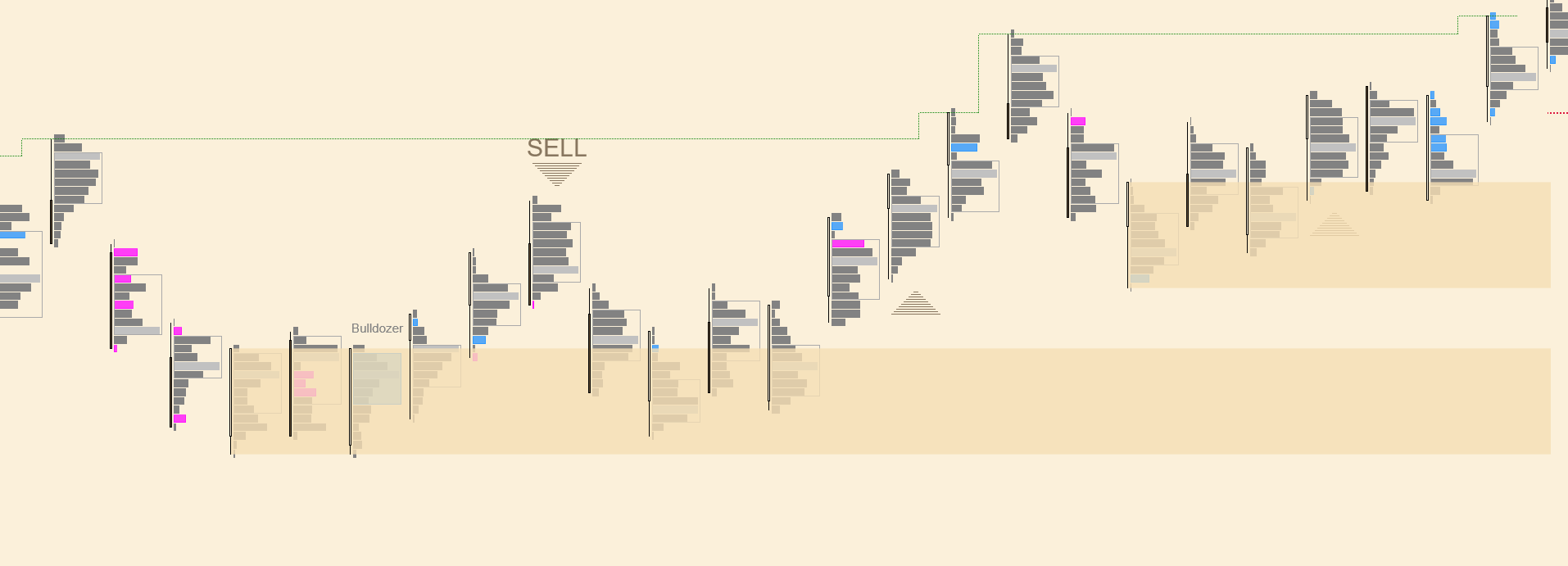

Hello, wondering if anyone can help here. I have 2 indicators battling for Z-Order position but neither can be selected by clicking and shift-scrolling. Pic below.

One of these is KISS Order Flow and the other is SupDemZones. I have tried to just remove them and add them back in the order I want as well to no avail. As you can see the Supply/Demand zones are covering up the bar profile but I was able to bring the actual bar to the front in the normal way.

KISS is not open source but SupDemZones is so looking through the code I see:

indicatorVersion = "1.2 | Dec. 2016";
}
else if(State == State.Configure)
{
if(useMTF)
{
barIndex = 1;
AddDataSeries((BarsPeriodType)barType, barPeriod);
}

ZOrder = ChartBars.ZOrder - 7;

if(!initOne)
{
menuSepa = new Separator();
menuItem = new MenuItem { Header = "Zones" };
menuItemActive = new MenuItem { Header = (hideActiveZones) ? "Show Active Zones" : "Hide Active Zones" };
menuItemBroken = new MenuItem { Header = (hideBrokenZones) ? "Show Broken Zones" : "Hide Broken Zones" };




I have tried playing with that ZOrder setting but no luck. Any other ideas?

Thanks!

[NinjaTrader_ChrisL]

Hello, thanks for writing in. The highest z order will be the top most object/series/plot on the chart. The only way to change this is through the indicator ZOrder = ChartBars.ZOrder - 7; is setting the Zorder for this indicator 7 layers below the chart bars on start up. Set this up to place it further up on the z axis. See also SetZOrder()

https://ninjatrader.com/support/helpGuides/nt8/NT%20HelpGuide%20English.html?setzorder.htm

[paypachaysa]

Thank you for the response Chris. Unfortunately after setting that parameter to 20, it still did not send it to the back. Not sure where to go next.

[NinjaTrader_ChrisL]

Hi, thanks for the follow up. The help guide says not to set the ZOrder property directly. Does it work if you comment out this line: ZOrder = ChartBars.ZOrder - 7; and use SetZOrder(ChartBars.ZOrder +1);

https://ninjatrader.com/support/helpGuides/nt8/NT%20HelpGuide%20English.html?setzorder.htm

[paypachaysa]

Yes it does! Thanks! I set the number to 20 and it moved to the back..

Thanks again for the help
