Instead of BarBrushes how to I say BarOutline?

[trdninstyle]

Instead of BarBrushes how to I say BarOutline?

if(Close[1] < Open[1] && Low[0] < Low[1] && Close[0] > Close[1] && BarBrushes[2] != Brushes.RosyBrown)


{
BarBrushes[0] = Brushes.RosyBrown;
BarBrushes[1] = Brushes.Brown;
}

I want to keep the original color of the two bars but just have them outlined.

[NinjaTrader_ChelseaB]

Hello trdninstyle,

CandleOutlineBrushes

https://ninjatrader.com/support/helpGuides/nt8/candleoutlinebrushes.htm

[trdninstyle]

Hi Chelsea B.

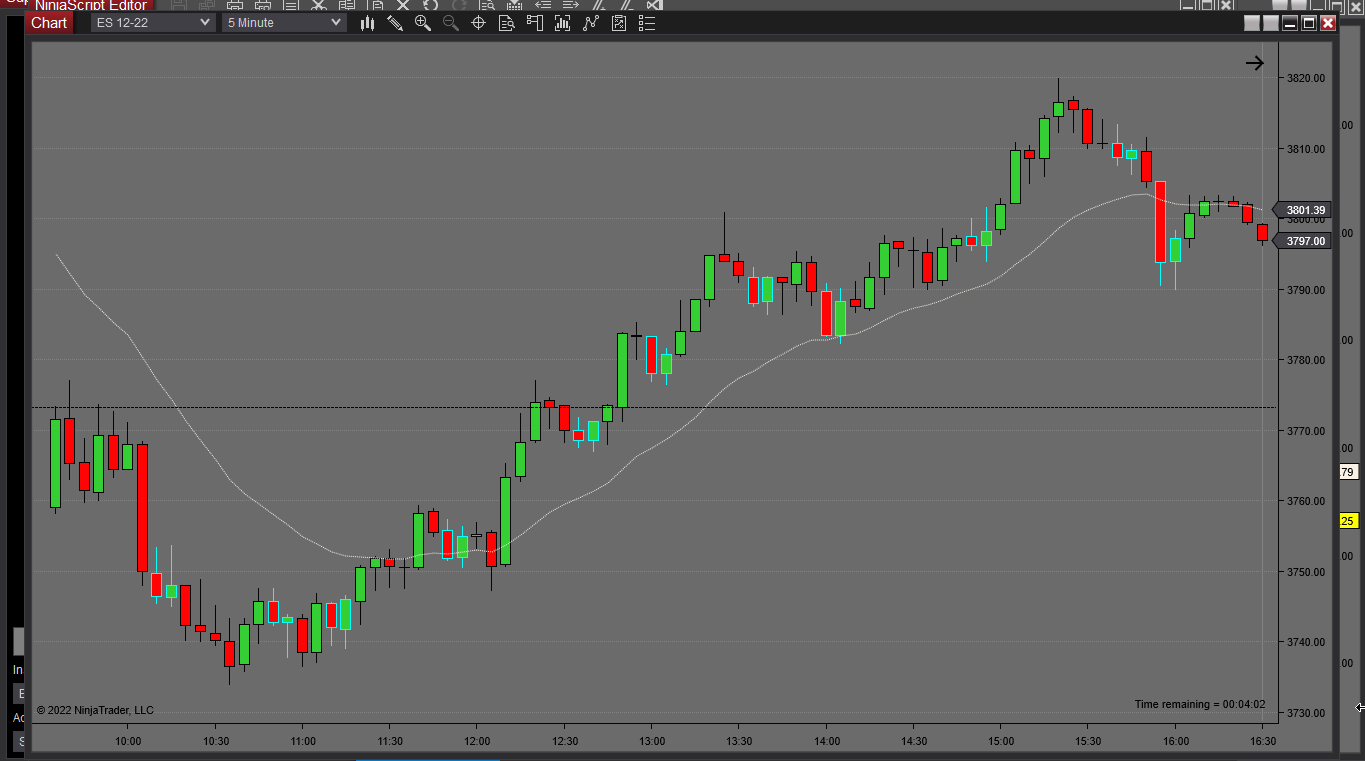

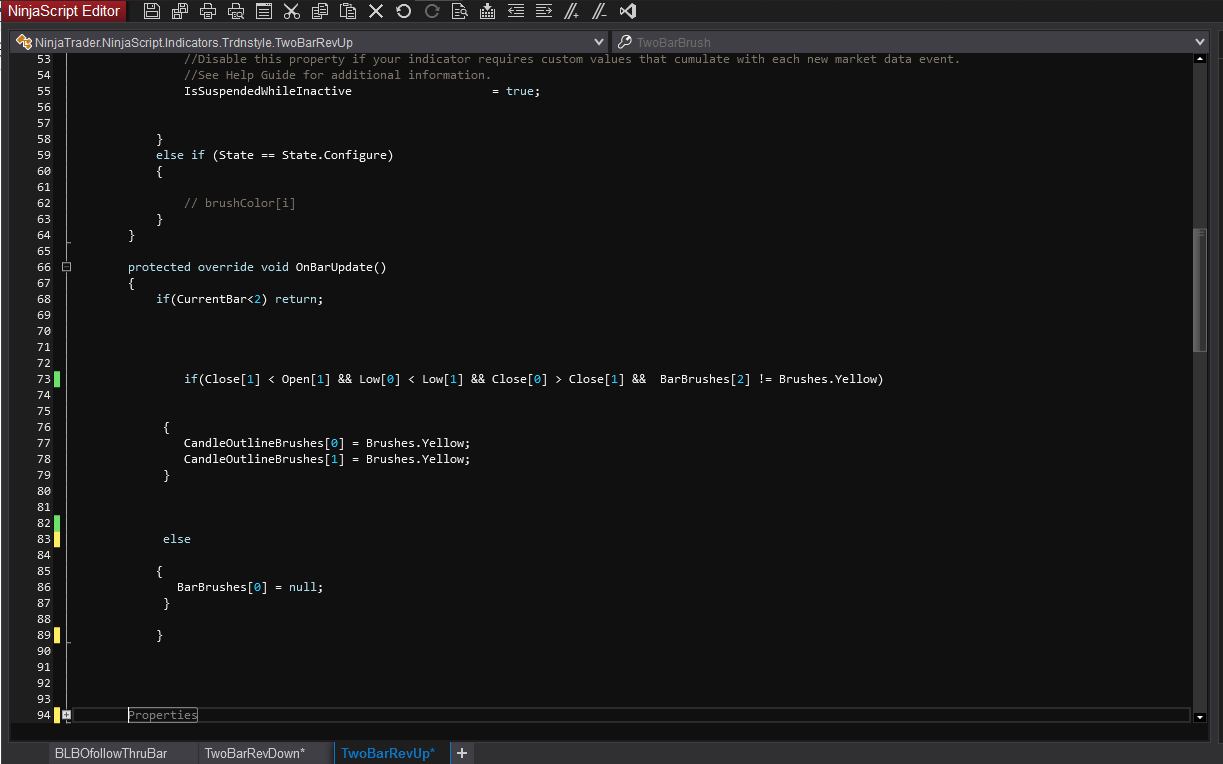

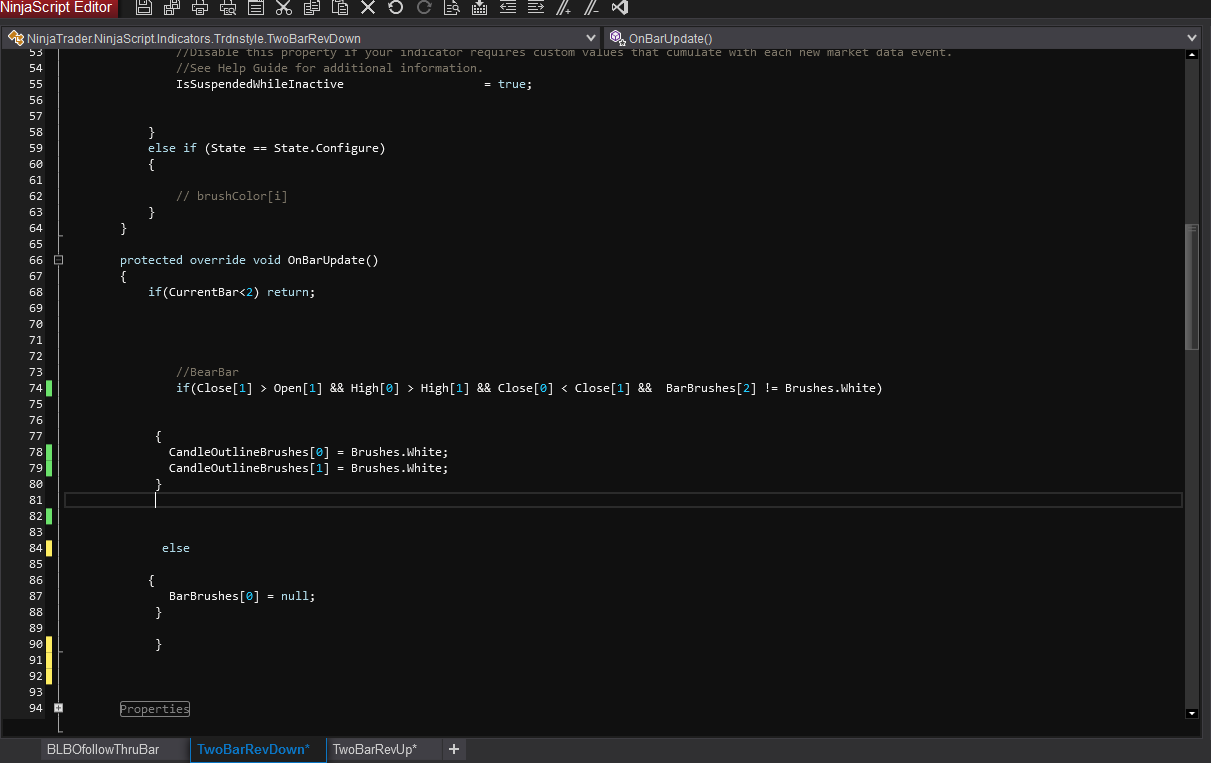

Thanks for that link. I'm doing something wrong here because it's not displaying on chart. Can you please take a look at my pic?

[eDanny]

Hi Chelsea B.

Thanks for that link. I'm doing something wrong here because it's not displaying on chart. Can you please take a look at my pic?

In your pic from post #1 we see the outline is already black. If you want it thicker you need to do that from the ChartStyle button on your toolbar.

[NinjaTrader_ChelseaB]

Hello trdninstyle,

eDanny is correct. Try setting the outline to yellow or something that stands out.

Also, use prints to confirm the condition is evaluating as true.

https://ninjatrader.com/support/forum/forum/ninjatrader-7/strategy-development-aa/99209-date-conditions-not-working?p=791121#post791121

[trdninstyle]

In your pic from post #1 we see the outline is already black. If you want it thicker you need to do that from the ChartStyle button on your toolbar.

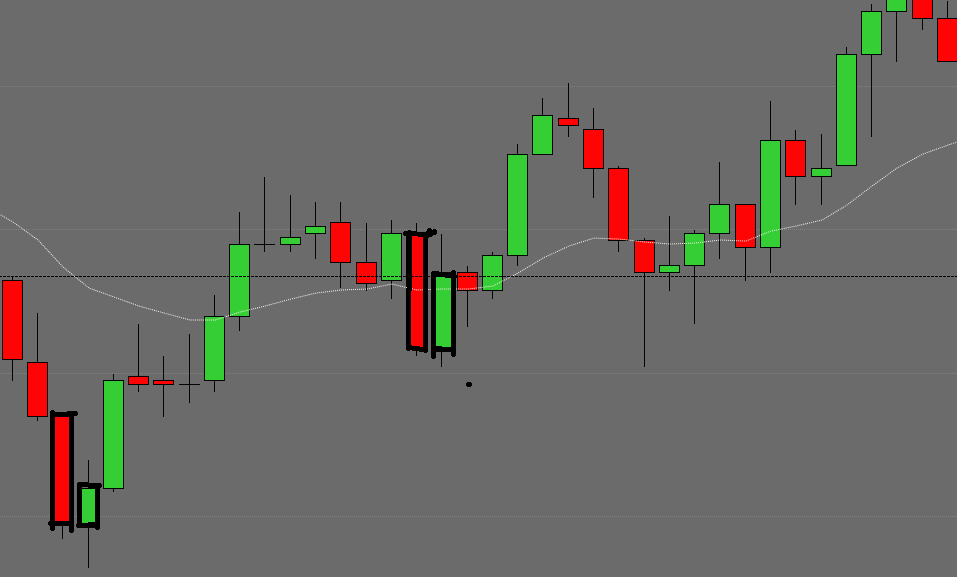

From the pic I drew those bold black lines from paint after I screenshot it. If I did it from ChartStyle then all of the candles would be bold black. I already have a twobar reversal painting the bars but I just want them to be outlined instead and not effecting the color of the bars.

My bad, I mis read what u were saying. What u said did fix it. Thank you.

[NinjaTrader_ChelseaB]

trdninstyle,

Try setting CandleOutlineBrushes[0] to yellow or something that stands out.

Use prints to confirm the condition is evaluating as true.
https://ninjatrader.com/support/foru...121#post791121

Save the output to a text file and include this with your reply.

[trdninstyle]

I see what u guys are saying now, sorry it took me so long.

[trdninstyle]

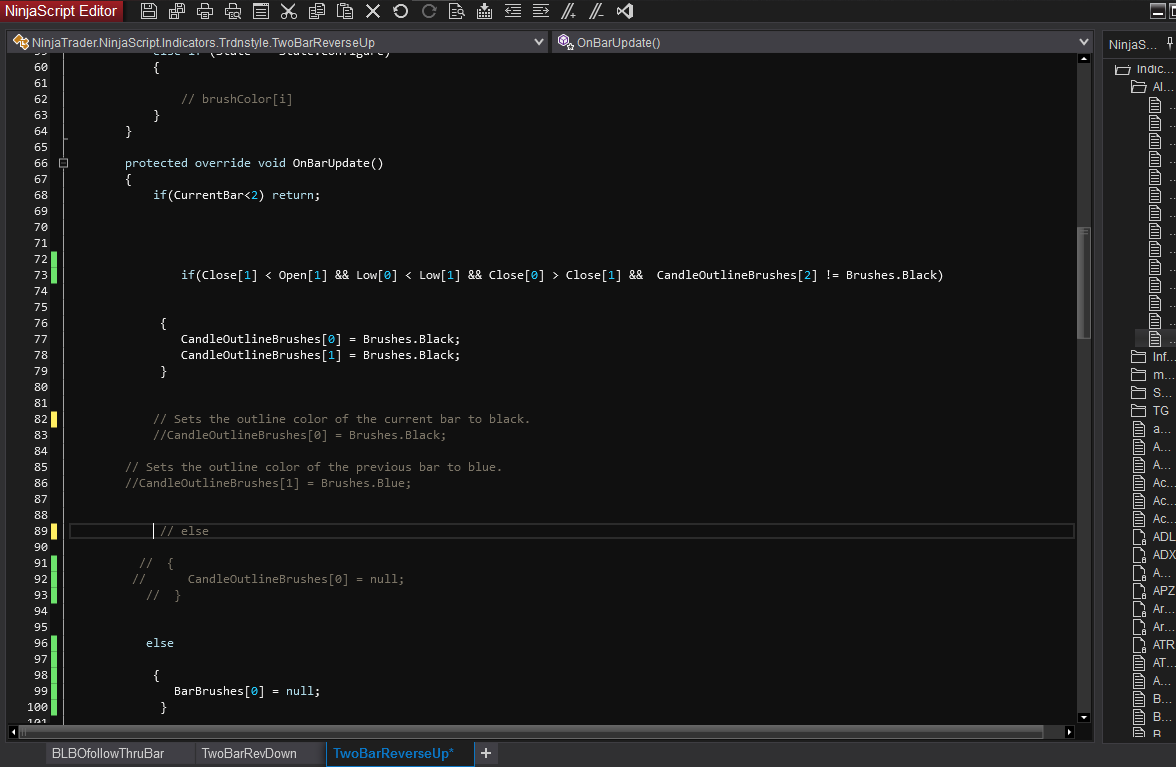

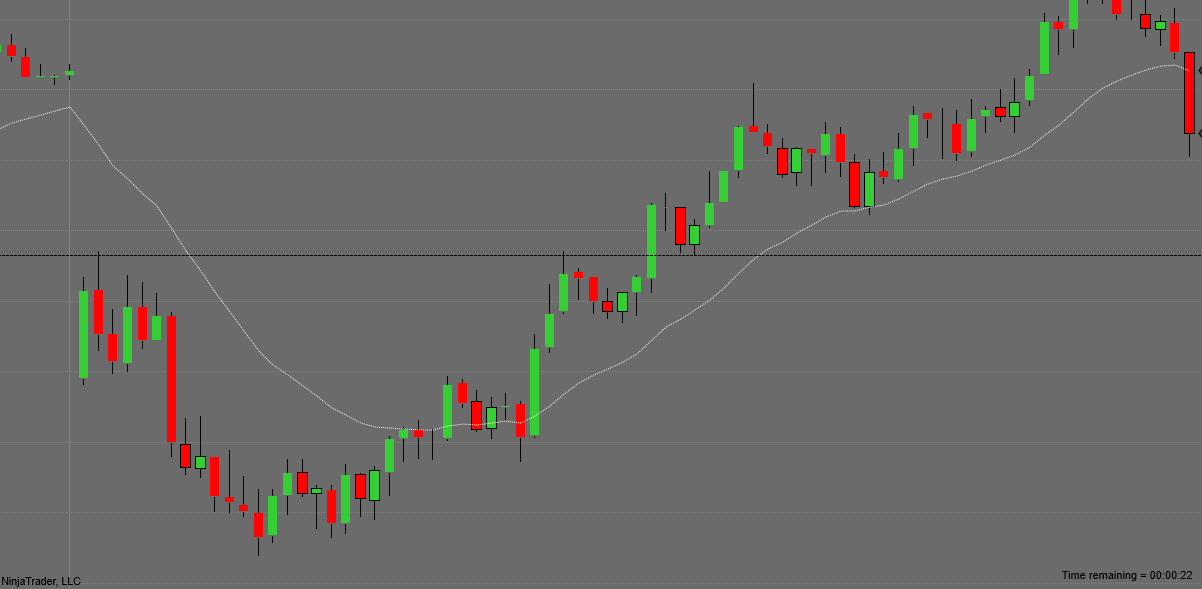

I grabbed the color Cyan, I'll find a color that looks better. Now if I want it to be black but very bold, could I say BoldBlack?

[NinjaTrader_ChelseaB]

Hello trdninstyle,

BoldBlack is not a color. Black is color.

If you want to increase the outline width right-click the chart -> select Data Series -> expand Chart style -> expand Candle body outline -> set Width to a larger value.

Or alternatively, you can create a custom chart style script that renders a different outline width.

[trdninstyle]

I tried that it thickens all of them but is there a way in the code to tell it to print thicker?

[NinjaTrader_ChelseaB]

Hello trdninstyle,

This is not documented, but using undocumented code you can change the chart style stroke width for all candles.

https://ninjatrader.com/support/forum/forum/historical-beta-archive/version-8-beta/79789-paint-bars-indicator?p=693957#post693957

[trdninstyle]

Thats interesting tho ...

ChartBars.Properties.ChartStyle.Stroke.Width = 6; //Change Candle Outline Width

That would be good if the department from up top worked on that and made it an option.

I have both Up and Down indicators now but they're separate indicators right now. How would I place both indicators onto one script?

[NinjaTrader_ChelseaB]

Hello trdninstyle,

Copy the logic in OnBarUpdate() in one script over to the other script.

You may want to consider using an else if for the second condition.

[trdninstyle]

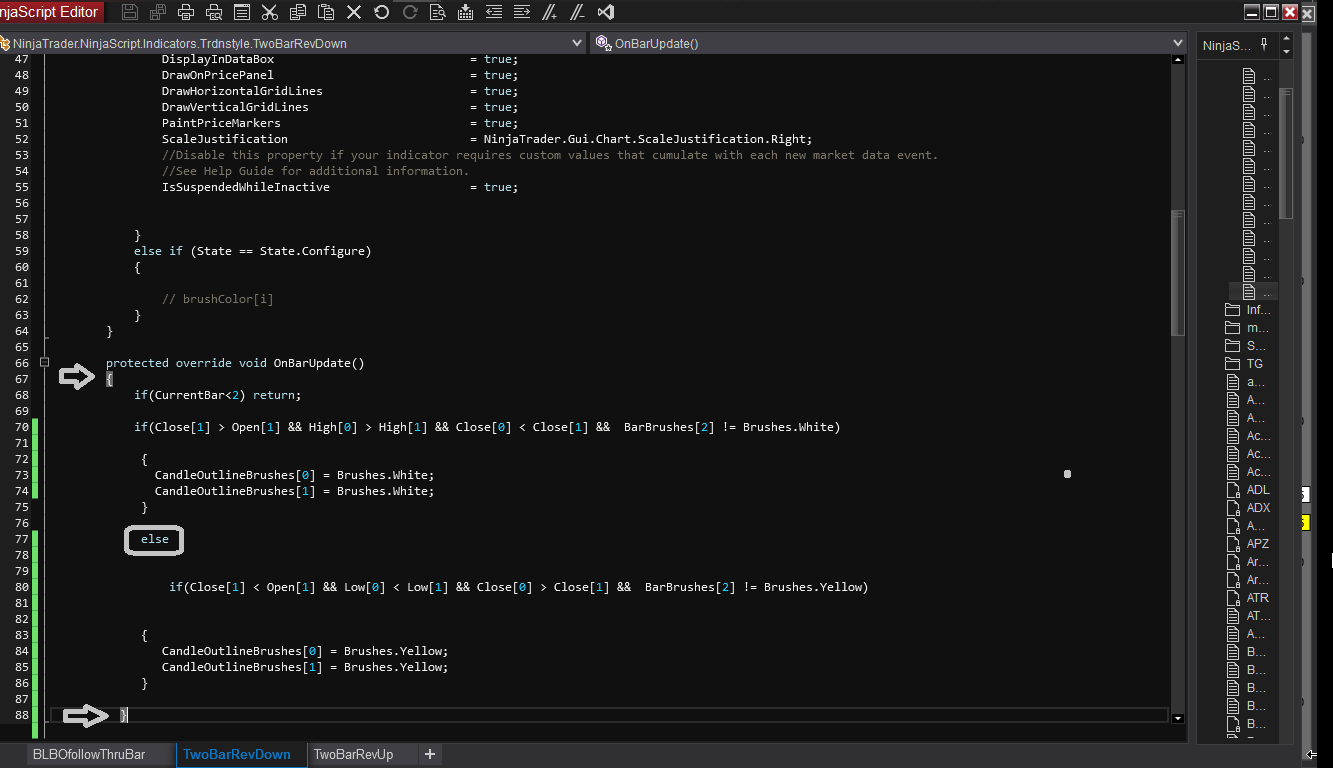

I placed the 2nd one between the brackets with just an 'else'. It was easier than I thought it would be. At first, I had a bunch of errors, but I figured it out. I just have to change the name to indicate up & down. The scary thing is, I'm picking up on this stuff lol Thank you.
