**barbaros** · 08-15-2022, 02:23 PM

Bump...anyone?

**NinjaTrader_ChelseaB** · 08-16-2022, 08:49 AM

Hello barbaros,

It has to be custom rendered with RenderTarget.DrawRectangle() / RenderTarget.DrawTextLayout().

NinjaScript > SharpDX SDK Reference > SharpDX.Direct2D1 > RenderTarget > DrawRectangle()

https://ninjatrader.com/support/helpGuides/nt8/sharpdx_direct2d1_rendertarget_drawrectangle.htm

NinjaScript > SharpDX SDK Reference > SharpDX.Direct2D1 > RenderTarget > DrawTextLayout()

https://ninjatrader.com/support/helpGuides/nt8/sharpdx_direct2d1_rendertarget_drawtextlayout.htm

Included with NinjaTrader is the SampleCustomRender indicator that demonstrates custom rendering.

The bar x values come from ChartControl.GetXByBarIndex().

NinjaScript > Language Reference > Common > Charts > ChartControl > GetXByBarIndex()

https://ninjatrader.com/support/helpGuides/nt8/getxbybarindex.htm

GetXByBarIndex() - ChartControl

Below are links to the help guide on rendering.

NinjaScript > Language Reference > Common > Charts > Rendering

https://ninjatrader.com/support/helpGuides/nt8/rendering.htm

NinjaScript > Language Reference > Common > Charts > Rendering > OnRender()

https://ninjatrader.com/support/helpGuides/nt8/onrender.htm

OnRender() - Rendering

NinjaScript > Language Reference > Common > Charts > Rendering > OnRenderTargetChanged()

https://ninjatrader.com/support/helpGuides/nt8/onrendertargetchanged.htm

OnRenderTargetChanged - RenderTarget

NinjaScript > Language Reference > Common > Charts > ChartControl

https://ninjatrader.com/support/helpGuides/nt8/chartcontrol.htm

NinjaScript > Language Reference > Common > Charts > ChartScale

https://ninjatrader.com/support/helpGuides/nt8/chartscale.htm

I am also providing some links to examples of custom rendering.

Performance optimization - NinjaTrader Support Forum

https://ninjatrader.com/support/forum/forum/ninjatrader-8/indicator-development/98639-performance-optimization?p=789606#post789606

Support for the development of custom indicators using NinjaScript.

How to anchor Grid control to chart - NinjaTrader Support Forum

https://ninjatrader.com/support/forum/forum/ninjatrader-8/indicator-development/97796-how-to-anchor-grid-control-to-chart?p=786906#post786906

Support for the development of custom indicators using NinjaScript.

Symbol Watermark - NinjaTrader Ecosystem

https://ninjatraderecosystem.com/user-app-share-download/symbol-watermark/

Simple script that adds a background watermark of the instrument symbol (and expiry if a future) to the chart. (Updated July 10th, 2018 &dash; The opacity needed to be casted as a double and divided by 100 to be between 0 and 1) (Update: August 24th, 2021 – Subtracted the ChartPanel.Y so indicator can be […]

Jtrealstats Realtime Level Ii / Tick Volume - NinjaTrader Ecosystem

https://ninjatraderecosystem.com/user-app-share-download/jtrealstats-realtime-level-ii-tick-volume/

This is a conversion of the Realtime Level II/Tick Volume. Please contact the original author for any questions or comments. Update Aug 27th, 2018: Since OnRenderTargetChanged can be called before State.DataLoaded, setting the dxmBrushes["backColor"].MediaBrush here wasn't working out and was sometimes null. Changed this to now get the chart background color (and text color) from […]

**barbaros** · 08-16-2022, 12:03 PM

This means you need to adjust all the rectangles when the chart is scrolled since you are custom drawing it at a specific x,y?

**barbaros** · 08-16-2022, 12:05 PM

May be it can be a WPF grid, cell size is adjusted with bar width and the whole grid is moved up and down if the chart is moved or scaled?

**NinjaTrader_ChelseaB** · 08-16-2022, 12:11 PM

Hello barbaros,

The RenderScrollableObjectExample I have linked in post #3 demonstrates renderings that scroll with the chart.

I would not have any examples that use WPF grid to simulate scrolling behavior.

**barbaros** · 08-16-2022, 08:16 PM

Sounds good. Thank you!

Topics	Statistics	Last Post
Salma's Key Price Levels by SalmaTrader Started by SalmaTrader, 07-07-2026, 10:26 PM	0 responses 35 views 0 likes	Last Post by SalmaTrader 07-07-2026, 10:26 PM
Machine Learning Lorentzian Classification by CarlTrading Started by CarlTrading, 07-05-2026, 01:16 PM	0 responses 20 views 0 likes	Last Post by CarlTrading 07-05-2026, 01:16 PM
CopierLite_V3.1 by CaptainJack Started by CaptainJack, 06-17-2026, 10:32 AM	0 responses 12 views 0 likes	Last Post by CaptainJack 06-17-2026, 10:32 AM
Account Dashboard (Prop Firm Risk Manager) by kinfxhk Started by kinfxhk, 06-17-2026, 04:15 AM	0 responses 18 views 0 likes	Last Post by kinfxhk 06-17-2026, 04:15 AM
Trade Manager by kinfxhk Started by kinfxhk, 06-17-2026, 04:06 AM	0 responses 20 views 0 likes	Last Post by kinfxhk 06-17-2026, 04:06 AM

Announcement

Partner 728x90

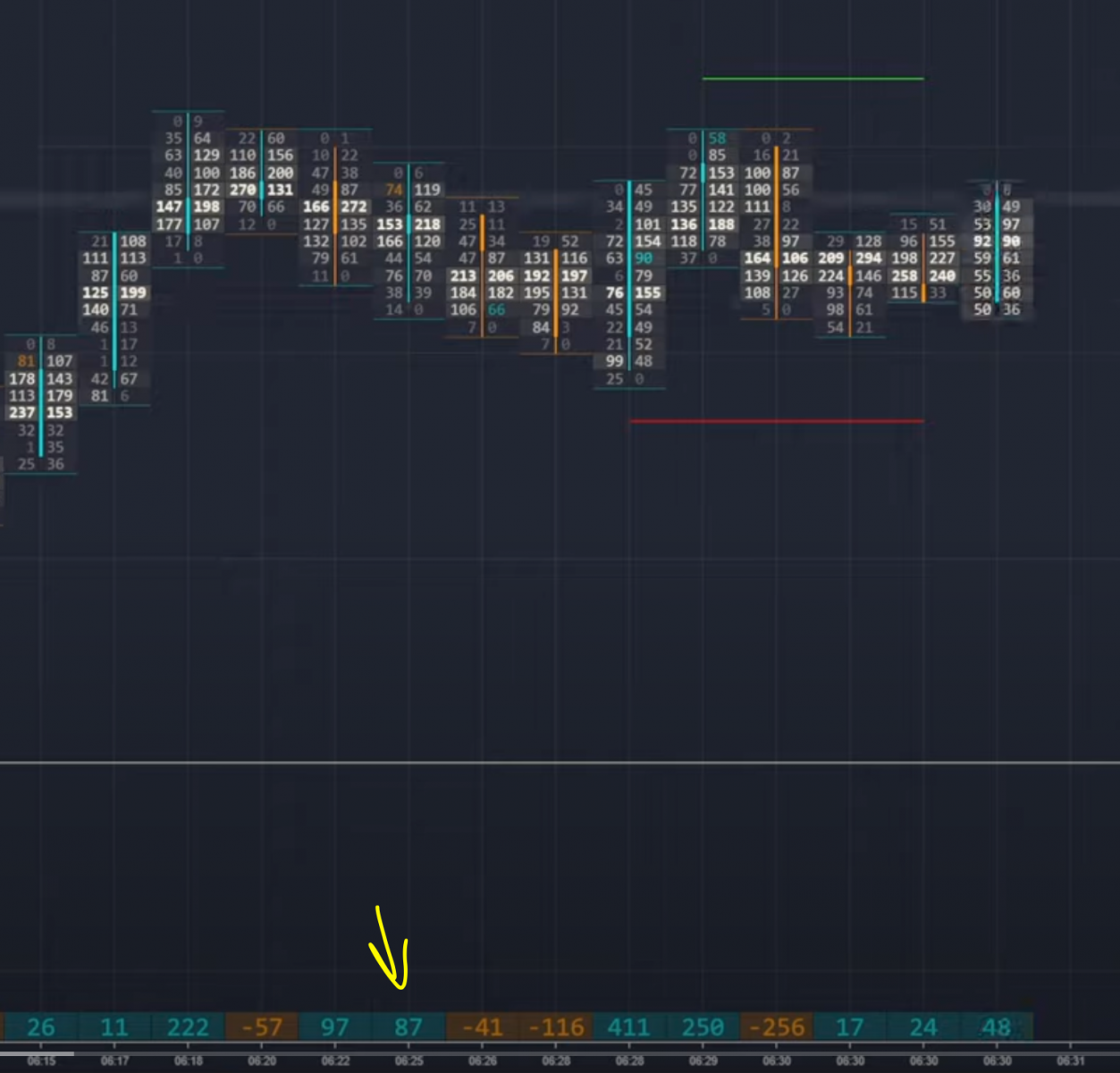

Cell per candle at the bottom of the chart
