2min candle on a 30min chart indicator question

[vegas3416]

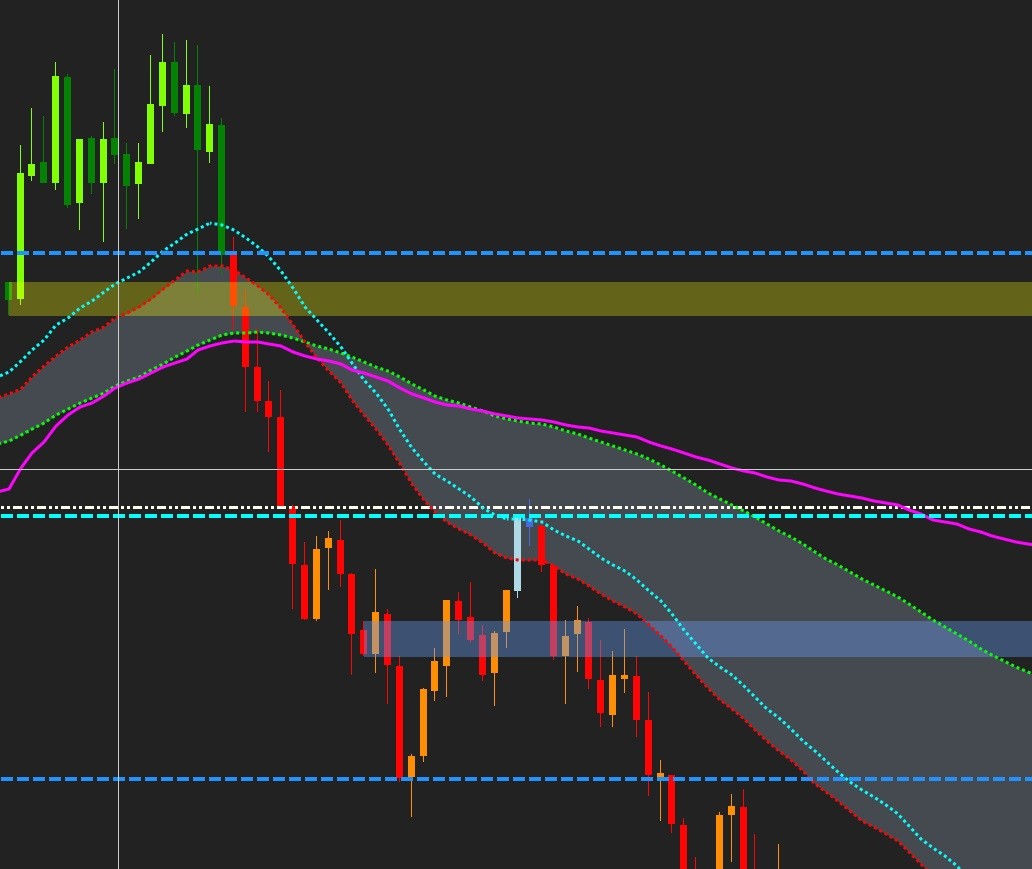

I have a very simple indicator that I've added to my 2min chart that basically plots the open to the 1hr range. (8:30 CST to 9:30CST) The yellow and Blue horizontal bars. It works great on 2min chart but I want to be able to put that same setup on the 30min chart but so that it follows the 2min chart style. If I put it on the 30min time frame it take the entire 8:30 bar candle and then the entire 9:30 bar candle on 30min chart. I want it to be the same size as it is on the 2min chart. I tried doing a multi-data series chart and add the indicator but move it to the 30min chart but it won't show up at all.

Is there a parameter I need to add to the code to be able to do this or another approach? Its a very simple indicator just missing something here.

I'm trying to get the Y value from the time at 8:28am CST to 8:30am CST and use that as the high and low or the y values to draw the rectangle.

Code itself:

protected override void OnBarUpdate()
{



if(ToTime(Time[0]) == ToTime(8,30,0) ) {

Draw.Rectangle(this, "startTime" + CurrentBar, false,Time[0], Low[0] - TickSize, new DateTime(Time[0].Year, Time[0].Month, Time[0].Day, 16, 15, 0), High[0], Brushes.Transparent, Brushes.Yellow, 30);
}


if(ToTime(Time[0]) == ToTime(9,30,0) ) {

Draw.Rectangle(this, "startTime" + CurrentBar,Time[0], Low[0] - TickSize, new DateTime(Time[0].Year, Time[0].Month, Time[0].Day, 16, 15, 0), High[0], Brushes.Transparent);
}





}

[NinjaTrader_ChelseaB]

Hello vegas3416,

I'm not quite sure what you are meaning by same size as the 2 minute chart.

The 2 minute chart is going to have many more bars for that hour period than the 2 30 minute bars.

The rectangle can be drawn on as few as two consecutive bars.

Have you added both a 2 minute series and a 30 minute series to the same panel on the chart?
