Hi,
I would like to expose some non-plot values such as the Signal, the structure Stops & Targets...
I have some challenges so, I put together a simple example to demo the issue that creates two simple MA cross signals as an example. Attached is a zip with two basic indicators: the one that create the signals (2 types) and draw them as vertical lines (in 2 different patterns), and another indicator that reads the two signals <int> series and plot the value (-1/1 and -2/2).
There are 2 issues:
Here is the second indicator BWATTTest, who reads the signal from BWATT and plot on a panel:

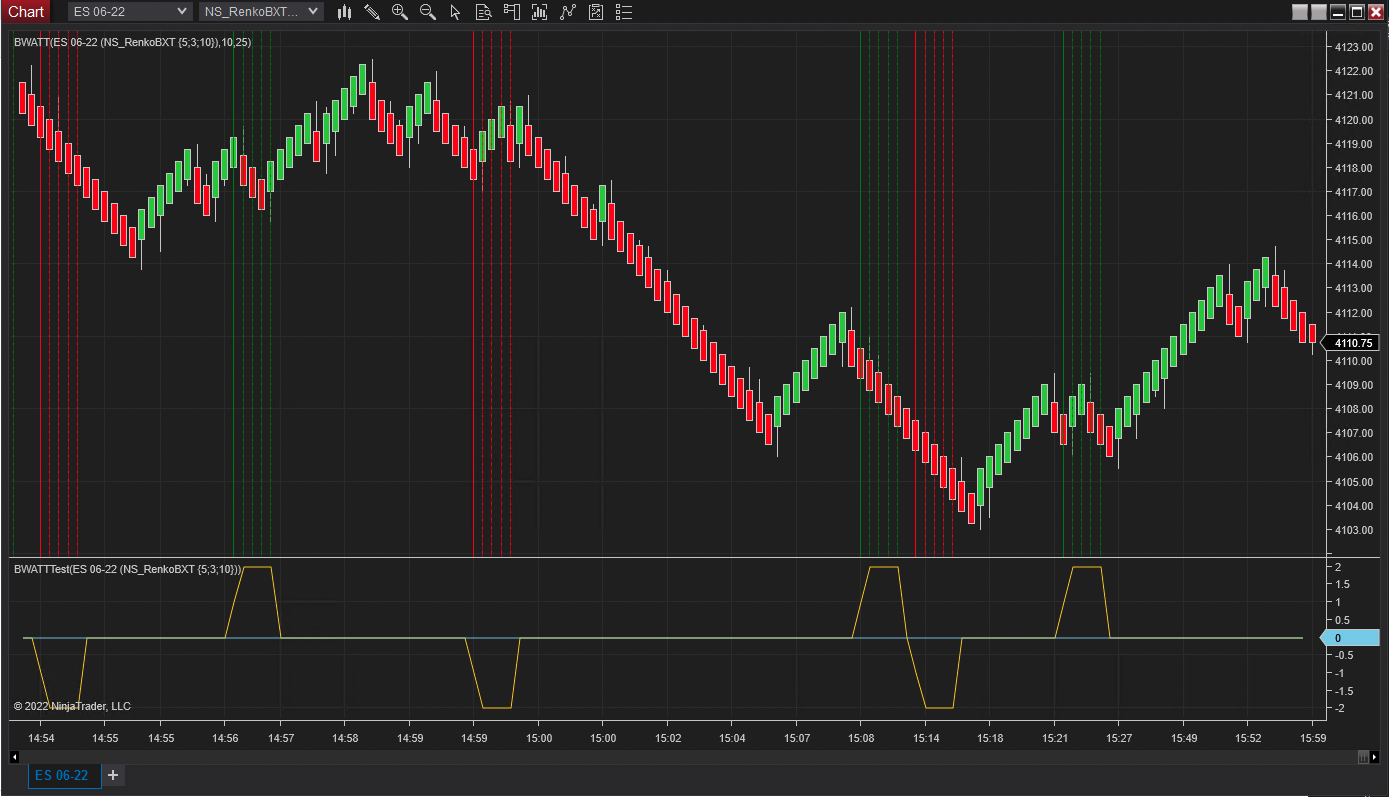

This is the output, which shows that the second output is drawn (+2/-2), but the first one is ignored (=0):
I would like to expose some non-plot values such as the Signal, the structure Stops & Targets...
I have some challenges so, I put together a simple example to demo the issue that creates two simple MA cross signals as an example. Attached is a zip with two basic indicators: the one that create the signals (2 types) and draw them as vertical lines (in 2 different patterns), and another indicator that reads the two signals <int> series and plot the value (-1/1 and -2/2).
There are 2 issues:
- Strategy builder only see the <double> output series, but not the <int> output series that the BWATT indicator creates
- The BWATTTest indicator only manage to read the second <int> output series, but ignore the first
Code:
protected override void OnBarUpdate()
{
if (saveCurrentBar != CurrentBar) // only once per bar
{
saveCurrentBar = CurrentBar;
signal = 0;
signalTrend[0] = 0;
signalBreak[0] = 0;
stop1[0] = 0;
target1[0] = 0;
stop2[0] = 0;
target2[0] = 0;
}
if (CrossAbove(smaFast, smaSlow, 1))
{
signal=1;
signalTrend[0]=signal;
Draw.VerticalLine(this,"Signal-"+CurrentBar+"-L1",0,Brushes.Green);
}
else if (CrossBelow(smaFast, smaSlow, 1))
{
signal=-1;
signalTrend[0]=signal;
Draw.VerticalLine(this,"Signal-"+CurrentBar+"-S1",0,Brushes.Red);
}
else if (CrossAbove(smaFast, smaSlow, 5))
{
signal=2;
signalTrend[0]=signal;
Draw.VerticalLine(this,"Signal-"+CurrentBar+"-L2",0,Brushes.Green,DashStyleHelper.DashDotDot,1,t rue);
}
else if (CrossBelow(smaFast, smaSlow, 5))
{
signal=-2;
signalTrend[0]=signal;
Draw.VerticalLine(this,"Signal-"+CurrentBar+"-S2",0,Brushes.Red,DashStyleHelper.DashDotDot,1,tru e);
}
}
#region #### Properties ####
[Range(1, int.MaxValue), NinjaScriptProperty]
[Display(ResourceType = typeof(Custom.Resource), Name = "Fast", GroupName = "NinjaScriptStrategyParameters", Order = 0)]
public int Fast
{ get; set; }
[Range(1, int.MaxValue), NinjaScriptProperty]
[Display(ResourceType = typeof(Custom.Resource), Name = "Slow", GroupName = "NinjaScriptStrategyParameters", Order = 1)]
public int Slow
{ get; set; }
[Browsable(false)]
[XmlIgnore]
public Series<int> SignalTrend
{
get { return signalTrend; }
}
[Browsable(false)]
[XmlIgnore]
public Series<int> SignalBreak
{
get { return signalBreak; }
}
[Browsable(false)]
[XmlIgnore]
public Series<double> Stop1
{
get { return stop1; }
}
[Browsable(false)]
[XmlIgnore]
public Series<double> Target1
{
get { return target1; }
}
[Browsable(false)]
[XmlIgnore]
public Series<double> Stop2
{
get { return stop2; }
}
[Browsable(false)]
[XmlIgnore]
public Series<double> Target2
{
get { return target2; }
}
#endregion
Code:
protected override void OnBarUpdate()
{
if (BarsInProgress != 0)
return;
if (CurrentBars[0] < 0)
return;
Values[0][0] = BWATT1.SignalTrend[0];
Values[1][0] = BWATT1.SignalBreak[0];
}
