CHange of RSI calculation

[ark321]

I guess I'm close to resolution.

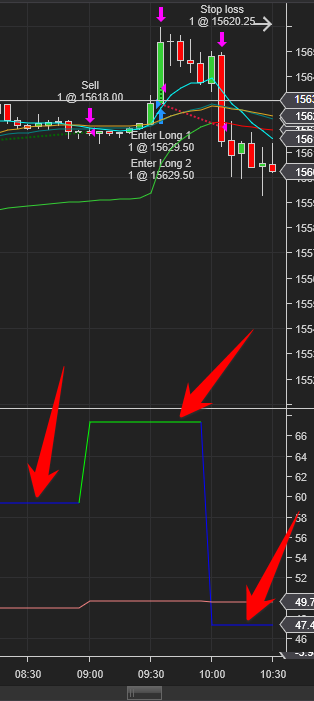

Here is one other issue I'm seeing. May be the way I'm accessing 60 min RSI value in lower time frame chart. What I observed is that when I access RSI60[0], I'm seeing the value from previous hour candle not the current hour value. The 60 min RSI plot looks fine in lower time frame chart(in this case 5 min chart). I do see the RSI value plotted properly but when I print the values I'm seeing previous hour candle value.

Wondering if there is different way to access the current value of higher time frame RSI.

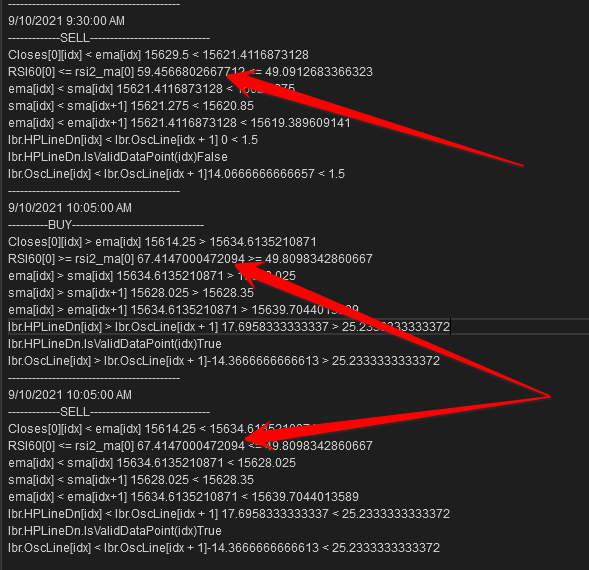

Attached are the values what I'm seeing -

Appreciate your help.

[NinjaTrader_ChrisL]

Hi ark,

The hourly bar has not closed yet, so you are getting the value from the bar that closed last. Try experimenting with different Calculate settings like OnEachTick/OnPriceChange:

https://ninjatrader.com/support/helpGuides/nt8/NT%20HelpGuide%20English.html?calculate.htm

Kind regards,
-ChrisL

[ark321]

I will try these. The plot shows correctly though

[ark321]

Does this below statement returns the price of the current bar in multi time frame scenario? Looks like it is not

protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
// Calculate on the close of each bar
Calculate = Calculate.OnEachTick;
}
}

As per this reference https://ninjatrader.com/support/help...?calculate.htm (under How Bars Data is referenced), I should be seeing the current bar value of the higher time frame but I'm still seeing previous bar close value.

Below is the sample code for RSI value for 60 min time frame (higher time frame) insider a lower time frame chart.

if (State == State.DataLoaded)
{

RSI60 = RSI(BarsArray[1], 14, 3);
rsi2_ma = EMA(RSI60, 50);

}

[NinjaTrader_ChrisL]

Hi ark,

Please see the attached test script demonstrating OnEachTick values from the 60M RSI.

Kind regards.

[ark321]

Thank you.

Just wanted to make sure, this code has OnBarClose setting. Shouldnt this be OnEachTick ?

Calculate = Calculate.OnBarClose;

[NinjaTrader_ChrisL]

Hi ark. Correct, I was changing from the indicator settings. To set OnEachTick as the default set Calculate = Calculate.OnEachTick in State.SetDefaults.

Kind regards,
-ChrisL

[ark321]

Thanks for confirming

I'm calling the indicator like this (renamed the sample)


_RSI60 = RSI60();
rsi2_ma = EMA(_RSI60, 50);

Print(_RSI60[0]) <---- error here

Error on calling 'OnBarUpdate' method on bar 20: Index was outside the bounds of the array.

Am I missing any step?

[NinjaTrader_ChrisL]

Hi ark,

It looks like you need to wait until there are at least 50 bars in each series before processing the command. See my example above how I check for CurrentBars[0] and CurrentBars[1] for at least 14 bars (the period of the RSI).

Kind regards,
-ChrisL

[ark321]

I loaded the chart with 1 year of data. What do you mean need to wait for 50 bars?

[NinjaTrader_ChrisL]

Hi Ark,

The sample I uploaded does:

if(CurrentBars[0] < 14 || CurrentBars[1] < 14)

to check for at least 14 bars on the chart before processing. The EMA needs at least 50 60 minute bars on the chart before it can produce a value.

Kind regards,
-ChrisL
