PropertyEditor (custom editor) for Stroke in Indicator?

[mav8rick]

Hi,

Is there any PropertyEditor for the Stroke object? i.e. can I add anything to the following section to enable the end-user to tailor the properties of the stroke object in an indicator?

#region Properties
[NinjaScriptProperty]
[Display(Name = "Current Open", Description = "Current Open", Order = 3, ResourceType = typeof(Resource), GroupName = "Parameters")]
public Stroke CurrentOpenStroke { get; set; }
#endregion

[NinjaTrader_Jim]

Hello mav8rick,

Thanks for your post.

This behavior exists for Strokes and is built in to the platform. Additional attributes would not need to be added.

In addition to the code you have entered for the property, a default will have to be set in State.SetDefaults in order for the controls to be usable on the property grid.

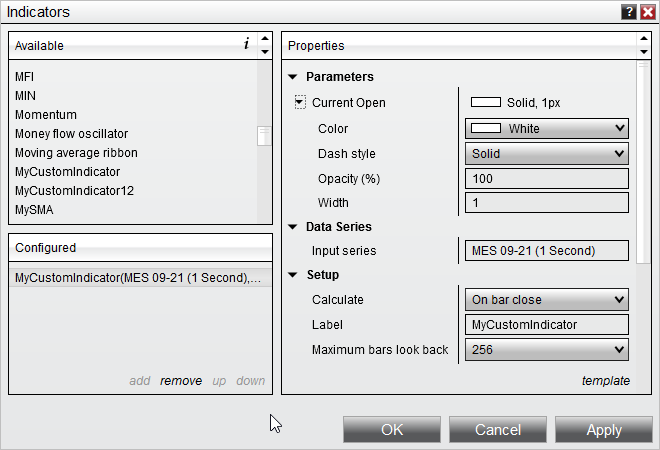

Once that is wired up, manipulating the Stroke in the property grid will look like the attached screenshot.

Let us know if you have any additional questions.

[mav8rick]

Just added:

CurrentOpenStroke = new Stroke(Brushes.DeepSkyBlue);

under State.Defaults and it worked like magic. Thanks!!!
