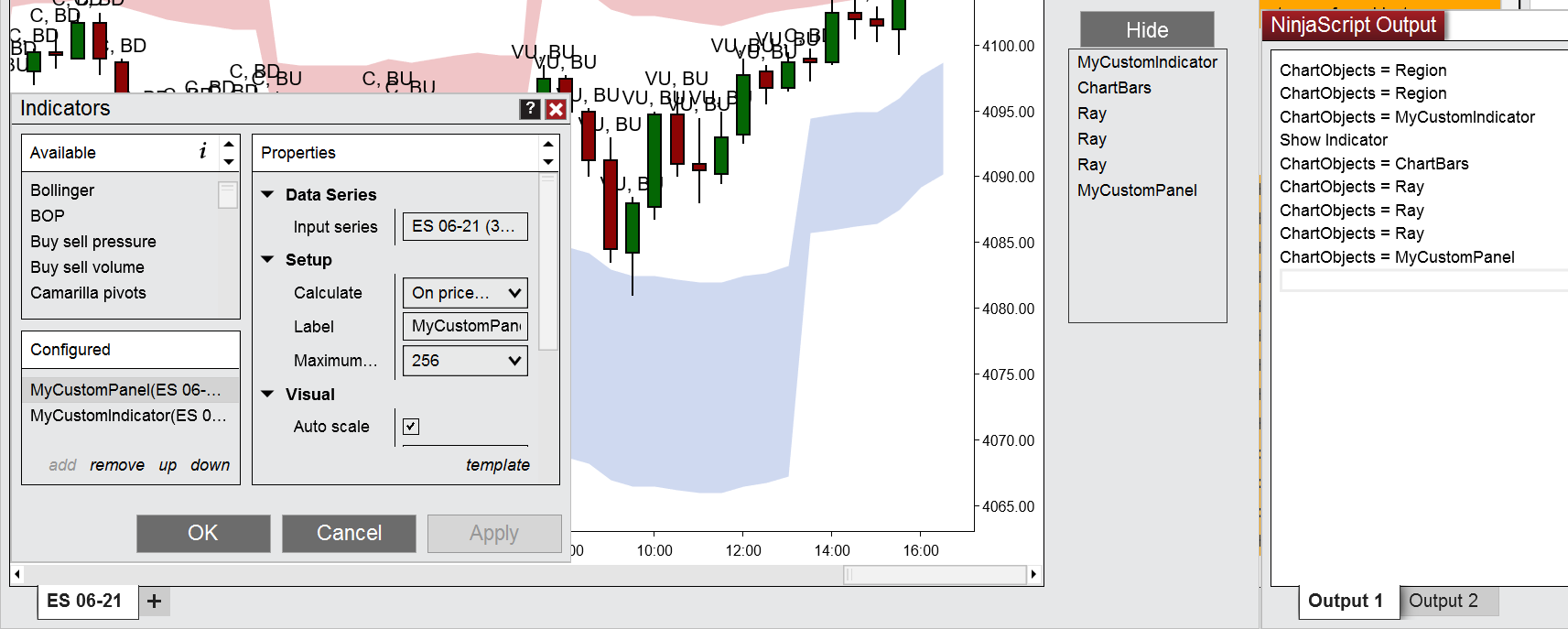

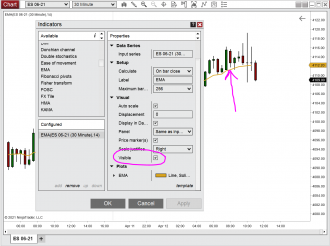

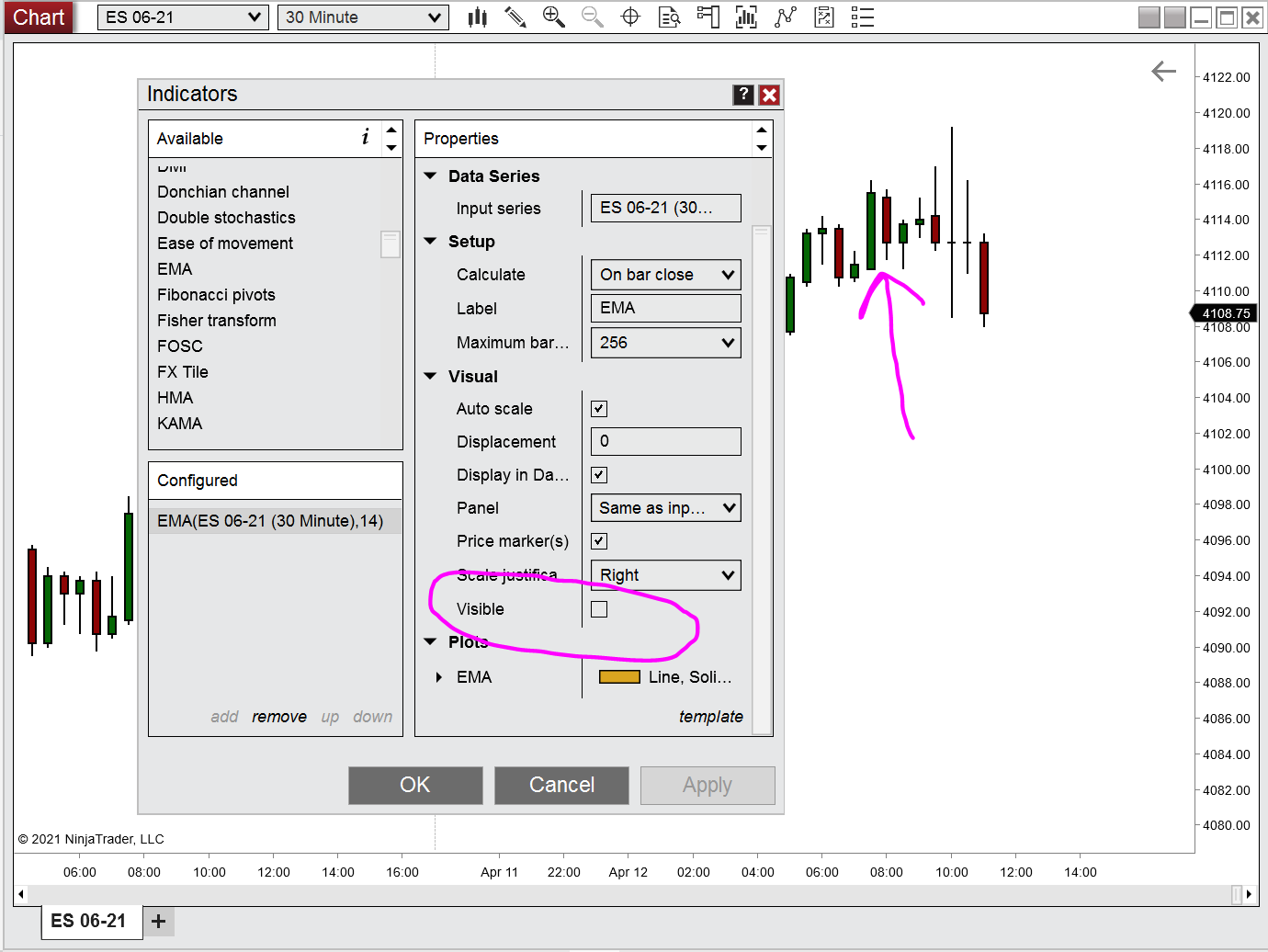

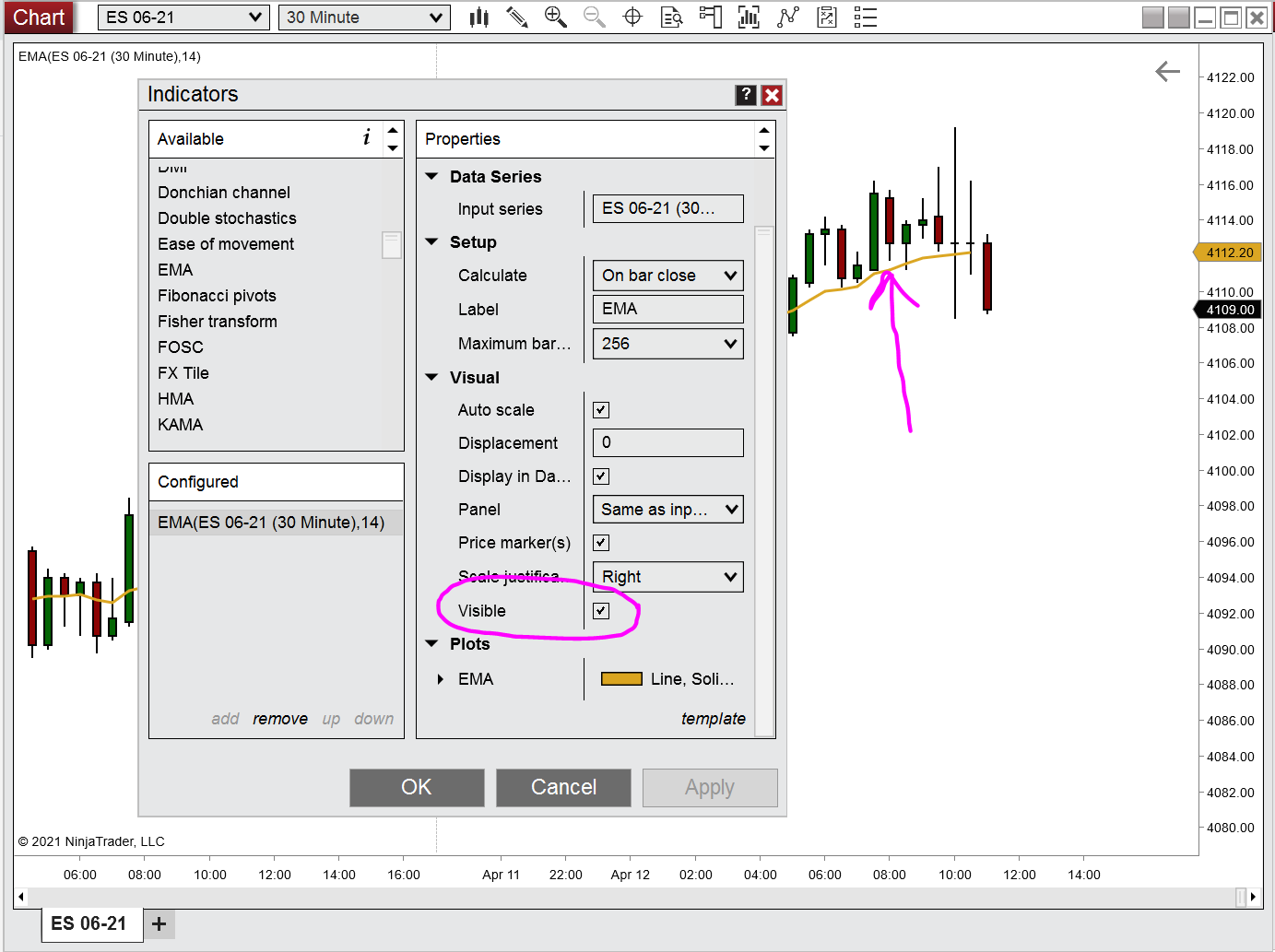

Hello. I am messing around with the ChartCustomSidePanelExample. I have done an extensive search on all existing forums. I have placed a button in the panel and want to have a custom indicator named MyCustomIndicator's visibility be toggled on and off just like you can do manually on any indicator via the Indicator Properties Visible checkbox. The whole indicator becomes invisible with this UI procedure. Our indicator has some Draw.Regions (from Series<double>), Draw.Text (from Series<string>) and plots from Series<double>. When I click the button only the Series<double> plots are turned off, the other objects of the indicator stay visible such as the Regions and Text. I use the same code to populate the list box and the output window. The regions don't show up in the list box but they do in the output and I am not even sure where the Rays are coming from. I am filtering out the Text strings in the list box and output window as there are a lot. But you can still see the Draw.Text above each bar as well as the Draw.Regions that should be off. The Series<double> plots are off in the attached picture. Below is the sample code. Thank you for your assistance.
Tom
Tom
Code:
protected void Button2_Click(object sender, RoutedEventArgs e)
{
foreach (var myObj in chartWindow.ActiveChartControl.ChartObjects)
{
if (myObj != null)
{
if (myObj.Name != "Text") Print("ChartObjects = " + myObj.Name);
if (myObj.Name == "MyCustomIndicator")
{
if (showIndicator)
{
myObj.IsVisible = false;
Print("Hide Indicator");
}
else if (!showIndicator)
{
myObj.IsVisible = true;
Print("Show Indicator");
}
showIndicator = !showIndicator;
}
}
}
if(button2.Content == "Hide")
{
button2.Content = "Show";
}
else
{
button2.Content = "Hide";
}
}
