AddPlot autoscaling. Ninja support, please advise

[Gorkhaan]

Hi,

I have a quick question. I have an indicator where I plot 3 data: High, Close, Low.
Now, my issue is that the chartscale of the indicator autoscales to all three plots.
Meaning I will see all of the plots in the indicator window, whereas I only want to see the latest data within the visible area of the chart.
Here are some screenshots:

This is the annoying one, which I am unable to change. You can see the plot with the yellow line what I want to see. I do not need the green.
The yellow plot is too small here, because the green one has increased the right scale.

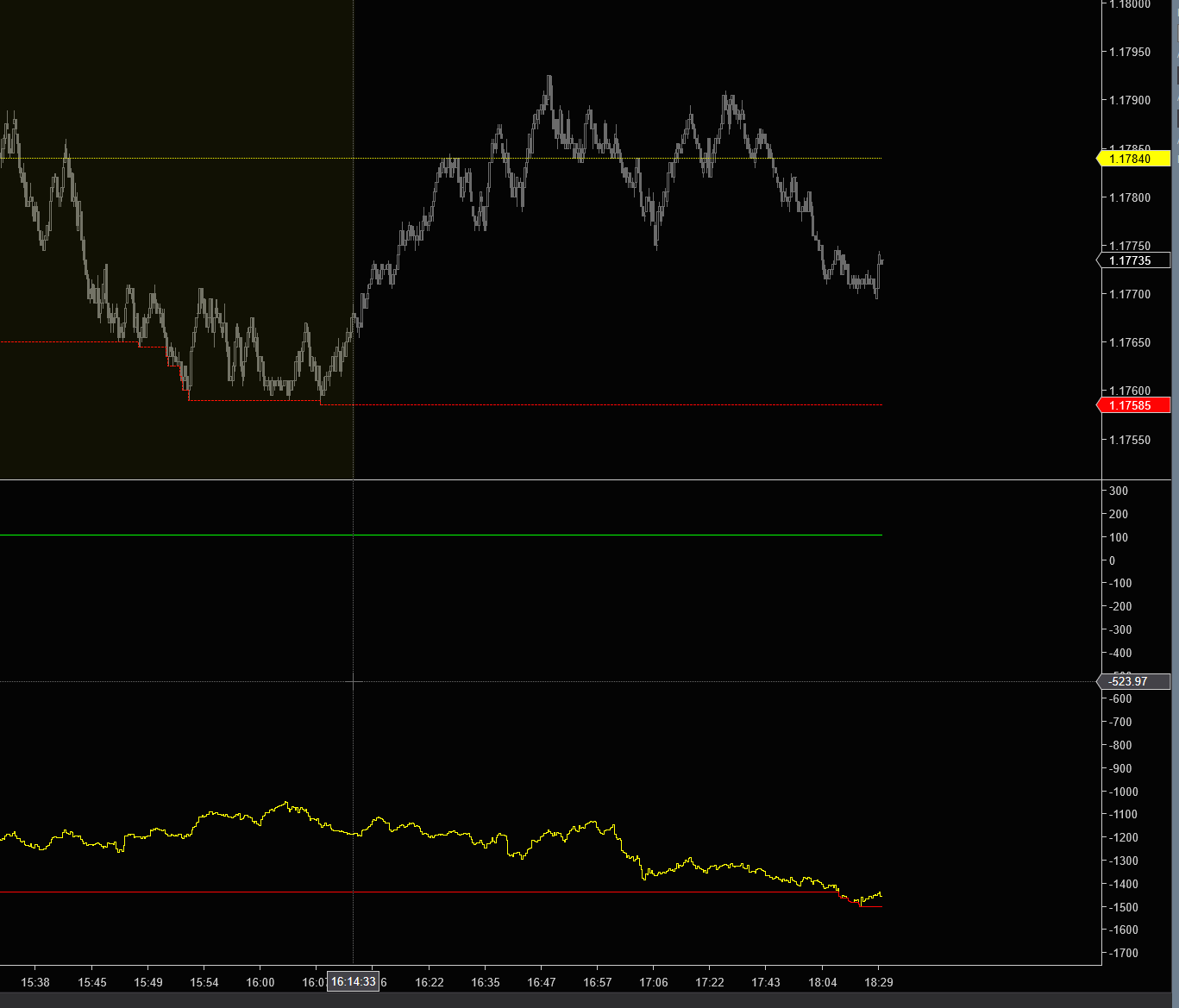

Now, when I set the color of the high plot (green) to Transparent. It works, and it only shows the red and the yellow. (duh) It scales just fine.



There is a dirty workaround, like this:

if (Values[0][0] > 0) {
Values[1][0] = currentHigh;
} else {
Values[2][0] = currentLow;
}

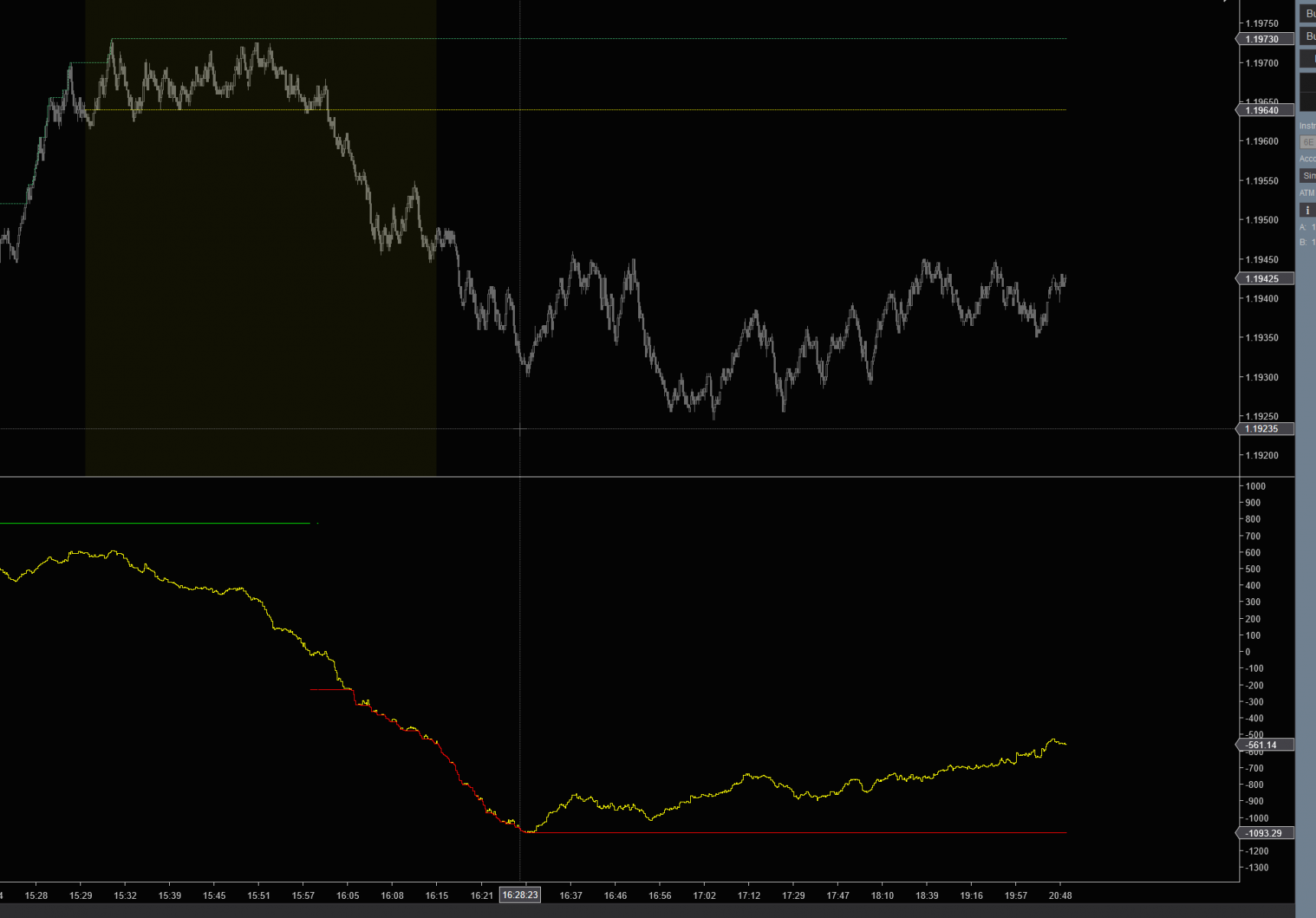

Using this code, it looks like this and I can scale it well, but obviously I am missing some plot data this way:




Switching colors to transparent and reloading the indicator is a pain in the neck.
So basically I wish to disable autoscale for the individual plots.
Is there something what i can use to solve this?

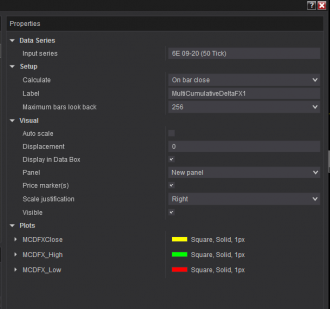

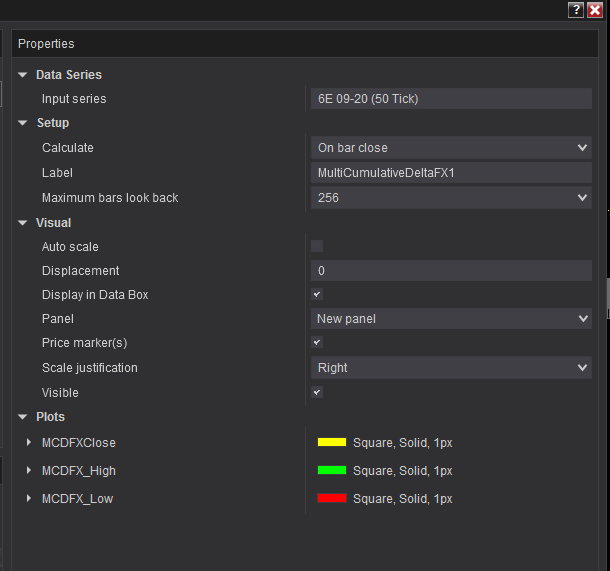

Indicator settings nothing interesting here:



Thanks in advance!

[NinjaTrader_ChrisL]

Hello Gorkhaan, thanks for your post.

We have the OnCalculateMinMax method for this purpose:
https://ninjatrader.com/support/help...lateminmax.htm

That gives you control over where the y axis is scaled around when IsAutoScale is enabled in the script.

Please let me know if you have any questions on this material.

[Gorkhaan]

That was it. Thanks Chris for pointing me to the right direction.
