% of ATR for Market Analyzer

[tvaughan4]

I'm just trying to create an indicator that takes X% of daily ATR over a given period. You could change the % if you want to use it for stops or profit targets. Can't seem to figure out what I'm doing wrong here... Seems like this should be pretty straightforward. Although I have no experience at this Any help would be appreciated.

[NinjaTrader_ChrisL]

Hi tvaughan4, thanks for your note.

If you want to make the percentage modifiable from the indicators menu make it a public property e.g.

        #region Properties
        [NinjaScriptProperty]
        [Range(1, double.MaxValue)]
        [Display(Name="ATRPercentage", Order=1, GroupName="Parameters")]
        public double ATRPercentage
        { get; set; }
        #endregion

To get the value of an ATR on a particular bar, define the statement like so:

double myvalue = ATRPercentage*ATR(20)[0]; //a 20 period ATR

What you have is a declaration, the implementation needs some integer that represents the ATR period.

Please let me know if I can assist any further.

[tvaughan4]

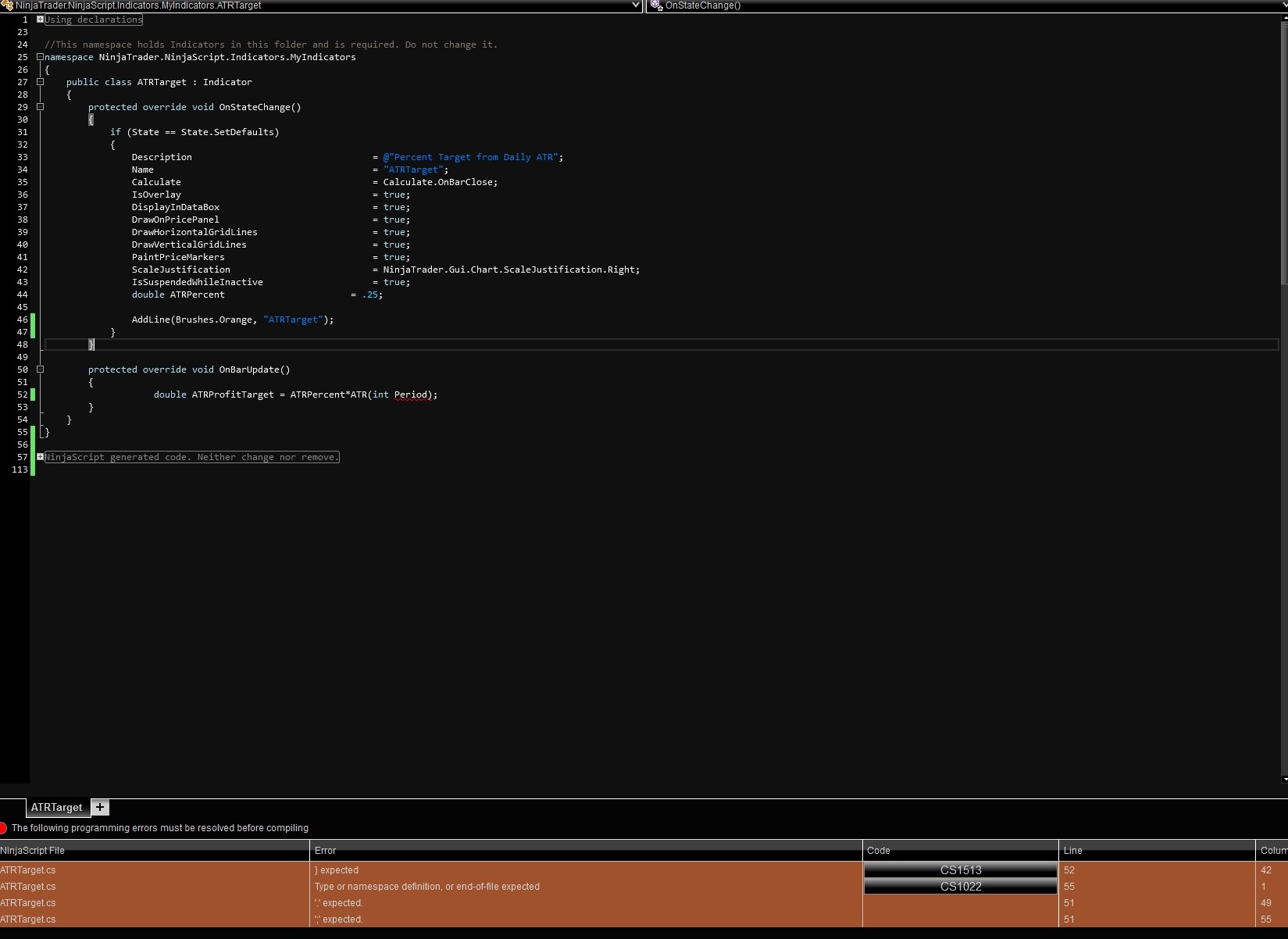

So I have it compiling now. I just made the percentage and ATR value fixed for now for simplicity. But it's spitting out zero for the number (ATRProfitTarget), which is obviously incorrect. ???


namespace NinjaTrader.NinjaScript.Indicators.MyIndicators
{
public class ATRTarget : Indicator
{
protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
Description = @"Percent Target from Daily ATR";
Name = "ATRTarget";
Calculate = Calculate.OnBarClose;
IsOverlay = false;
DisplayInDataBox = true;
DrawOnPricePanel = true;
DrawHorizontalGridLines = true;
DrawVerticalGridLines = true;
PaintPriceMarkers = true;
ScaleJustification = NinjaTrader.Gui.Chart.ScaleJustification.Right;
IsSuspendedWhileInactive = true;



AddPlot(Brushes.Orange, "ATRProfitTarget");
}
}

protected override void OnBarUpdate()
{
double ATRProfitTarget = .25*ATR(10)[0];
}
}
}

[NinjaTrader_ChrisL]

Hi, Im not getting the same thing.

This works for me:

protected override void OnBarUpdate()
{
double ATRProfitTarget = .25*ATR(10)[0];
Print(ATRProfitTarget);

}

You do have either historical data or live data coming in correct?

[tvaughan4]

Yep, live data, same code as you

this is what i'm getting in market analyzer

is the AddPlot correct?? AddPlot(Brushes.Orange, "ATRProfitTarget");

[NinjaTrader_Jesse]

Hello tvaughan4,

It looks like Chris was testing a Print statement to confirm the value where you are not outputting the value in any way. I would suggest that you also do a Print and then check the output window to confirm the value is working.

The AddPlot alone doesn't do anything except adds a plot, it doesn't look like you are setting the plot in OnBarUpdate. To set the plot you would need to use Value:

Value[0] = someValue;

or

double ATRProfitTarget = .25*ATR(10)[0];
Value[0] = ATRProfitTarget;

Please let me know if I can assist any further.

[tvaughan4]

That'll do it!!! Thanks so much for the help!!

One more question, how would I change the price output from the regular price of the instrument to convert it over to ticks?

[NinjaTrader_Jesse]

Hello tvaughan4,

Generally to convert to an amount of ticks you could multiply by the tick size:

double ticks = amount * TickSize;

For example if we wanted to know the price 4 ticks away from the current price it looks like:

double price = Close - (4 * TickSize);

https://ninjatrader.com/support/helpGuides/nt8/ticksize.htm

I look forward to being of further assistance.

[tvaughan4]

Yep, perfect, thanks again
