NT8 newbie - changing plot color per bar

[joromero]

I have successfully changed a few indicators to plot green / red based on direction. I am trying to modify the 'included' MoneyFlowOscillator indicator and can't get it to change color. I have used the same technique I used in my other indicator changes, but nothing seems to work. Any assistance would be appreciated.


//This namespace holds Indicators in this folder and is required. Do not change it.
namespace NinjaTrader.NinjaScript.Indicators
{
/// <summary>
/// The Money Flow Oscillator measures the amount of money flow volume over a specific period. A move into positive territory indicates buying pressure while a move into negative territory indicates selling pressure.
/// </summary>
public class MoneyFlowOscillator : Indicator
{
private Series<double> mfv;
private double dvs, mltp;

protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
Description = NinjaTrader.Custom.Resource.NinjaScriptIndicatorDe scriptionMoneyFlowOscillator;
Name = NinjaTrader.Custom.Resource.NinjaScriptIndicatorNa meMoneyFlowOscillator;
IsOverlay = false;
DrawOnPricePanel = false;
IsSuspendedWhileInactive = true;
Period = 20;

AddPlot(Brushes.DodgerBlue, NinjaTrader.Custom.Resource.NinjaScriptIndicatorMo neyFlowLine);
AddLine(Brushes.DarkGray, 0, NinjaTrader.Custom.Resource.NinjaScriptIndicatorZe roLine);
}
else if (State == State.DataLoaded)
{
mfv = new Series<double>(this);
}
}

protected override void OnBarUpdate()
{
if(CurrentBar > 0)
{
dvs = (High[0] - Low[1]) + (High[1] - Low[0]) == 0 ? 0.00001 : (High[0] - Low[1]) + (High[1] - Low[0]);
mltp = Math.Round(High[0] < Low[1] ? -1: Low[0] > High[1] ? 1 : ((High[0] - Low[1]) - (High[1] - Low[0])) / dvs, 2);
mfv[0] = mltp * (Instrument.MasterInstrument.InstrumentType == Cbi.InstrumentType.CryptoCurrency ? Core.Globals.ToCryptocurrencyVolume((long)Volume[0]) : Volume[0]);

if (CurrentBar >= Period)
{
double sumVolume = SUM(Volume, Period)[0];
if (Instrument.MasterInstrument.InstrumentType == Cbi.InstrumentType.CryptoCurrency)
sumVolume = Core.Globals.ToCryptocurrencyVolume((long)sumVolum e);
Values[0][0] = Math.Round(SUM(mfv, Period)[0] / sumVolume, 3);
}

// Below are my 2 trys to get the color to change.
/*
if( mfv[0] > 0.0 )
PlotBrushes[0][0] = Brushes.Green;
if( mfv[0] < 0.0 )
PlotBrushes[0][0] = Brushes.Red;
if( mfv[0] = 0.0 )
PlotBrushes[0][0] = Brushes.Yellow;
*/
if( Values[0][0] > 0.0 )
PlotBrushes[0][0] = Brushes.Green;
if( Values[0][0] < 0.0 )
PlotBrushes[0][0] = Brushes.Red;
if( Values[0][0] = 0.0 )
PlotBrushes[0][0] = Brushes.Yellow;


}
else
mfv[0] = 0;
}

[NinjaTrader_PaulH]

Hello joromero,

Thanks for your post.

Using the Values[0][0] should be what you want to base the condition evaluation on.

This line: if( Values[0][0] = 0.0 ) has a typo and should be if( Values[0][0] == 0.0 ).

Also, I would place the brush coding below the line mfv[0] = 0;

So:

            else
                mfv[0] = 0;

            if( Values[0][0] > 0.0 )
                PlotBrushes[0][0] = Brushes.Green;
            if( Values[0][0] < 0.0 )
                PlotBrushes[0][0] = Brushes.Red;
            if( Values[0][0] == 0.0 )
                PlotBrushes[0][0] = Brushes.Yellow;
        }

[joromero]

Paul,

Thanks for the quick reply. I did make the one change you caught. Thanks. But, it still does not change the plot color? Any other thoughts?

[NinjaTrader_PaulH]

Hello joromero,

Thanks for your reply.

Did you move the code as I showed in the code block?

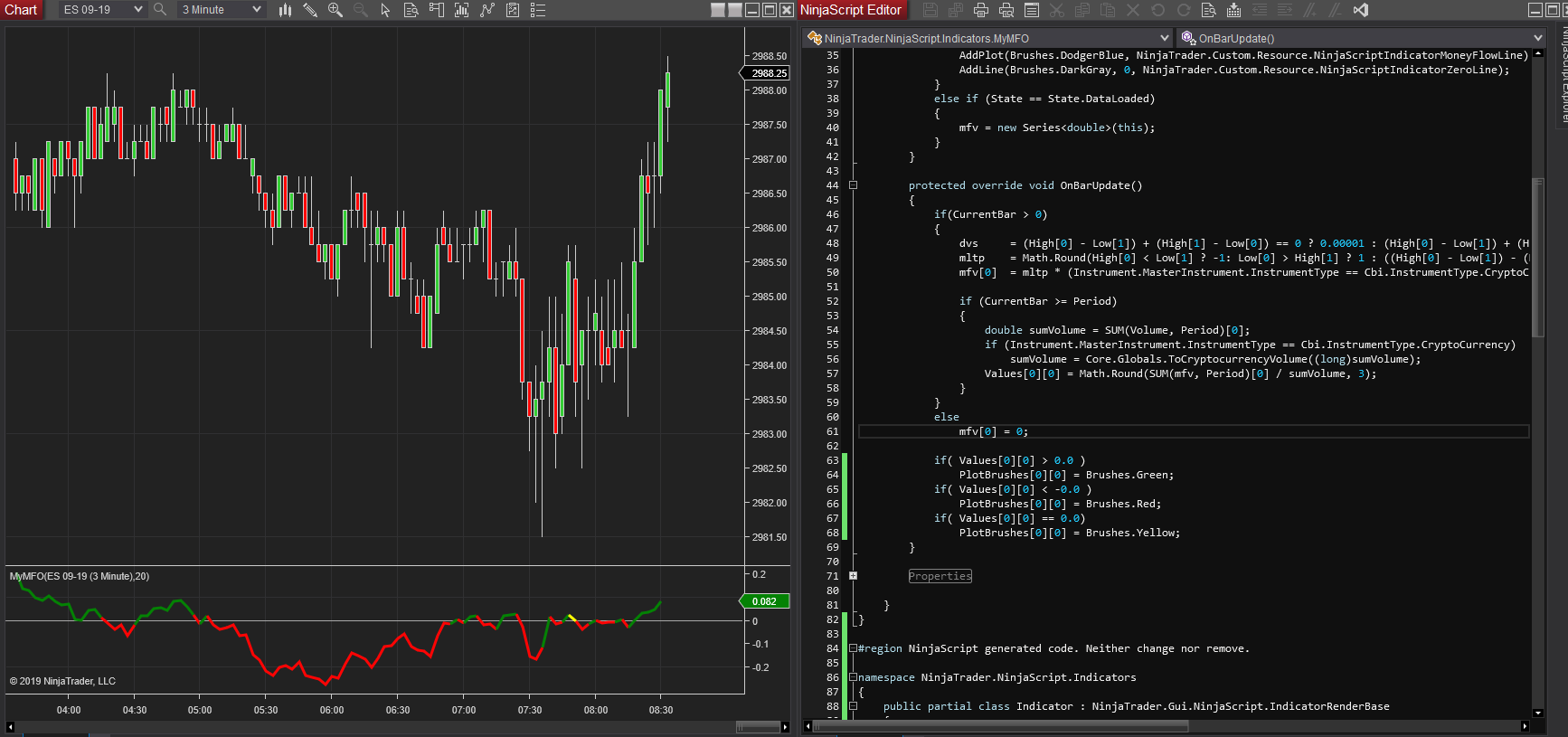

Works here:

[joromero]

Paul, Again, thanks for your time. I did do as you suggested. I have also removed the indicator, pressed ok, and then once again selected 'Indicator' from the menu to add it back. I also tried to 'reload' ninja script. It looks like you created a copy of the indicator to make the changes. I did it to the original. Once I did a Save As, then compiled and loaded my named copy, it worked here as well. Not sure why, since when I made the changed to the original, it compiled with no issues.

Any way, it is working now, so who knows ! ! !

Again, thanks for your time

John in NC

[NinjaTrader_PaulH]

Hello John,

Thanks for your reply.

Glad you have it working.

When working with scripts that draw or plot, it is indeed a good idea to remove the indicator from the chart and then reapply after you have changed your script and recompiled. This ensures that you are working with the just changed instance. This is a common mistake (and I make it myself as well).
