Draw.Region between lines

[Gianpiero]

Good morning everybody.

I'm new to NT 8 and I have some issues abot coloring a region between some horizontal lines.

Recently, I found the included indicator somewhere else and I just wanted to highlight the regions between the standard deviation levels.

The original code used lines to plot these levels, I changed them into plots in order to use the Draw.Region() function with two series.but still the region is not drawn.

I will appreciate any help.

namespace NinjaTrader.NinjaScript.Indicators
{
    /// <summary>
    /// Displays Z Score for the selected instrument.
    /// </summary>
    [Description("Displays Z Score for the selected instrument. Optional Smoothings.")]
    public class TCZScore : Indicator
    {
		public enum MovingAverageTypes
		{
			SMA = 1,
			WMA = 2,
			EMA = 3,
			LinReg = 4
		}

        #region Variables
        // internal program variables
		double calculation = 0;

        #endregion


		protected override void OnStateChange()
		{
			if (State == State.SetDefaults)
			{
				Initialize();	// call the original NT7 Initialize()
				// DrawOnPricePanel = false;
			}
		}


		public override string DisplayName
		{
			get { return Name+"("+averagePeriod.ToString()+","+stDevPeriod.ToString()+")";	}
		}

        /// <summary>
        /// This method is used to configure the indicator and is called once before any bar data is loaded.
        /// </summary>
        protected void Initialize()
        {
			Name = "TC_ZScore: TradingCoders.com";
            AddPlot(new Stroke(Brushes.DarkOrange,1), PlotStyle.Line, "Z");
			AddPlot(new Stroke(Brushes.Red), PlotStyle.Line, "ZSmooth");

			AddPlot(new Stroke(Brushes.DimGray), PlotStyle.Line, "U2");
			AddPlot(new Stroke(Brushes.DimGray), PlotStyle.Line, "U1");
			AddPlot(new Stroke(Brushes.DimGray), PlotStyle.Line, "L1");
			AddPlot(new Stroke(Brushes.DimGray), PlotStyle.Line, "L2");

            AddLine(new Stroke(Brushes.DimGray,1), 0, "ZeroLine");

            Calculate = Calculate.OnPriceChange;
			DrawOnPricePanel = false;
            IsOverlay				= false;
			//PriceType = PriceType.Typical;	// cannot be set by code as any default in NT8

			MaximumBarsLookBack = MaximumBarsLookBack.Infinite;

			averagePeriod = 100; // Default setting for AveragePeriod
            stDevPeriod = 100; // Default setting for StDevPeriod
			mAType = MovingAverageTypes.SMA;	// 1=SMA, 2=EMA, 3=LinReg
			smoothingPeriod = 5;	// Smoothing of principle Z (1=no smoothing)
			doubleSmoothingPeriod = 10; // period of Double Smoothed Z.
        }

        /// <summary>
        /// Called on each bar update event (incoming tick)
        /// </summary>
        protected override void OnBarUpdate()
        {
			if (CurrentBar < 5)
			{
				Z[0] = (0);
				return;
			}
			// off and running ---->

			switch (mAType)
			{
				case MovingAverageTypes.SMA:
					calculation = SMA(Input,averagePeriod)[0];
					break;
				case MovingAverageTypes.WMA:
					calculation = WMA(Input,averagePeriod)[0];
					break;
				case MovingAverageTypes.EMA:
					calculation = EMA(Input,averagePeriod)[0];
					break;
				case MovingAverageTypes.LinReg:
					calculation = LinReg(Input,averagePeriod)[0];
					break;
				default:
					calculation = SMA(Input,averagePeriod)[0];
					break;
			}

			if (smoothingPeriod > 1)	// smooths price series going into the calculation
				calculation = (EMA(Input,smoothingPeriod)[0]-calculation)/StdDev(Input,stDevPeriod)[0];
			else
				calculation = (Input[0]-calculation)/StdDev(Input,stDevPeriod)[0];

			Z[0] = (calculation);

			if (doubleSmoothingPeriod > 1)
			{
				ZSmooth[0] = (EMA(Z,Math.Min(doubleSmoothingPeriod,CurrentBar))[0]);
			}
			else
				ZSmooth.Reset();

			U2[0] =  2.0;
			U1[0] =  1.0;
			L1[0] = -1.0;
			L2[0] = -2.0;

     		Region myReg = Draw.Region(this, "tag1", CurrentBar, 0, L1, U1, Brushes.Transparent, Brushes.Blue,10);

			// Change the object's opacity
			myReg.AreaOpacity = 25;
        }



        #region Properties
        [Browsable(false)]	// this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]		// this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public Series<double> Z
        {
            get { return Values[0]; }
        }

		[Browsable(false)]	// this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]		// this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public Series<double> ZSmooth
        {
            get { return Values[1]; }
        }

		[Browsable(false)]	// this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]		// this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public Series<double> U2
        {
            get { return Values[2]; }
        }

		[Browsable(false)]	// this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]		// this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public Series<double> U1
        {
            get { return Values[3]; }
        }

		[Browsable(false)]	// this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]		// this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public Series<double> L1
        {
            get { return Values[4]; }
        }

		[Browsable(false)]	// this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]		// this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public Series<double> L2
        {
            get { return Values[5]; }
        }
		// --------------------------

		[Range(1, int.MaxValue), NinjaScriptProperty]
		[Display(Description = "Length of averaged price",
		 ResourceType = typeof(Custom.Resource), Name = "Average Period", GroupName = "NinjaScriptParameters", Order = 0)]
		public int averagePeriod
		{ get; set; }

		[Range(1, int.MaxValue), NinjaScriptProperty]
		[Display(Description = "Length of standard deviation of price",
		 ResourceType = typeof(Custom.Resource), Name = "StdDev Period", GroupName = "NinjaScriptParameters", Order = 1)]
		public int stDevPeriod
		{ get; set; }

     	[NinjaScriptProperty]
		[Display(Description = "Type of moving average",
		 ResourceType = typeof(Custom.Resource), Name = "MA Type", GroupName = "NinjaScriptParameters", Order = 2)]
		public NinjaTrader.NinjaScript.Indicators.TCZScore.MovingAverageTypes mAType
		{ get; set; }

		[Range(1, int.MaxValue), NinjaScriptProperty]
		[Display(Description = "Smoothing period for Z",
		 ResourceType = typeof(Custom.Resource), Name = "Smoothing Period", GroupName = "NinjaScriptParameters", Order = 3)]
		public int smoothingPeriod
		{ get; set; }

		[Range(1, int.MaxValue), NinjaScriptProperty]
		[Display(Description = "Double Smoothing period",
		 ResourceType = typeof(Custom.Resource), Name = "DoubleSmoothing Period", GroupName = "NinjaScriptParameters", Order = 4)]
		public int doubleSmoothingPeriod
		{ get; set; }

        #endregion
    }
}

[NinjaTrader_PaulH]

Hello Gianpiero,

Thanks for your post.

Please note that we have moved your post to a new thread here in NinjaTrader8 Indicator Development. You had posted on a thread in the NT7 indicator development forum.

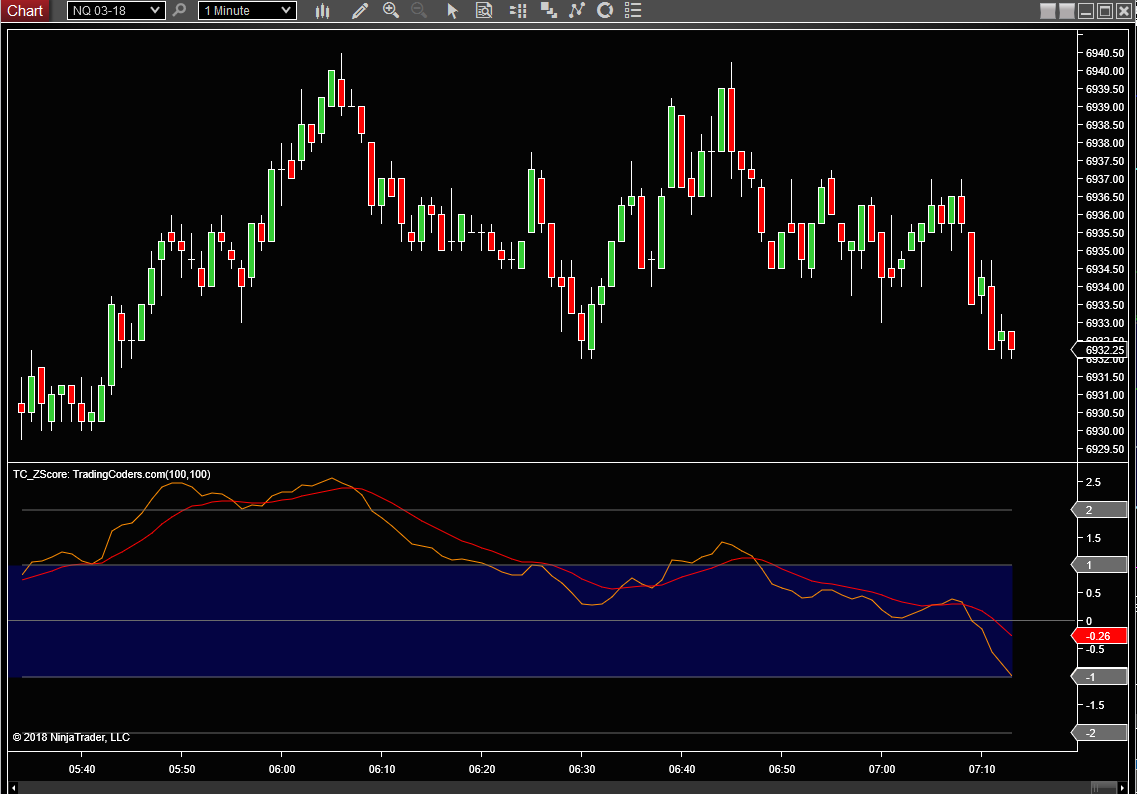

I copied your code and it appears to be drawing the region (please see attached).

What version of NT8 are you using (look in Help>about)?
