Draw.Region problem

[Sangui]

Hello,

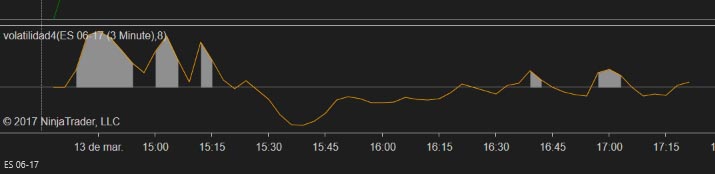

I am trying to draw a region when the Plot0 is above Zero line, but it doesn'w work very well as you can check in the picture attached.

My code is as follows:

if(Plot0[0]>=0 && controlcorte) {icorte++; barrascorte=CurrentBar; controlcorte=false;}
if(Plot0[0]<0.05) controlcorte=true;

if(Plot0[0]>0) Draw.Region(this,"tag1"+icorte,(CurrentBar-barrascorte),0,Plot0,Zero,null,Brushes.White,50);

Please, help me to understand what I am doing wrong.

Thanks in advance

[NinjaTrader_Jim]

Hello Sangui,

Thanks for opening the thread.

I would advise to use the first overload for Draw.Region so you supply a Series<double> and a double holding the value for your zero line.

Draw.Region will draw shapes filling in the gap between these Series<double> values and the value for the zero line specified.

If you would like to only draw shapes above the zero line, I suggest to create your own Series<double> that is synchronized with the primary data series and has a MaximumBarsLookBack of MaximumBarsLookBack.Infinite. You should then check if the Plot's value is above your zero line. If it is, assign it to the Series<double>. If not, assign the Series<double> the value of your zero line.

I have attached a rough example that can demonstrate this on an ES chart.

Please let me know if I may be of further assistance.
