Chart trader buttons position

[gyilaoliver]

Hi,

i found a chart traders buttons example and want to adapt it to my needs.

The original script had 4 buttons, i removed one to have only 3,but for the last week, i couldn't figure out how to place the CANCEL ( button 3 ) right below the LONG and SHORT buttons, and make it as wide as the two upper buttons together.

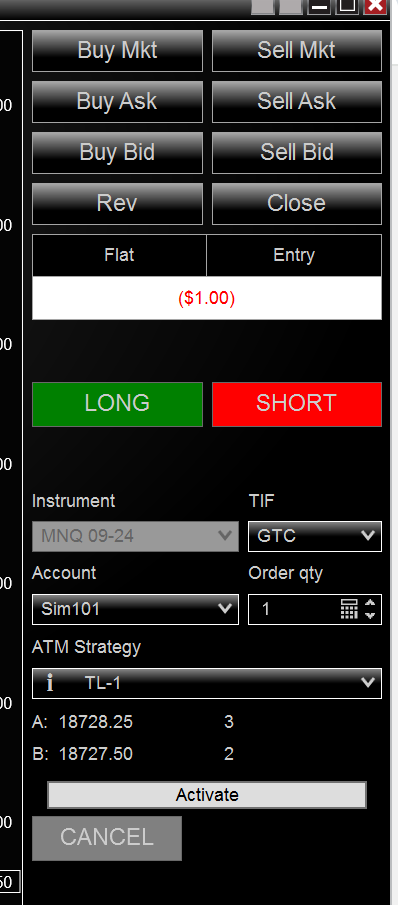

Right now it looks like this :

Would some be so king and add missing lines or adjust the code so the CANCEL button gets below the other two? I'm not familiar with this yet.
Here's my code:


        protected void InsertWPFControls()
        {
            chartTraderGrid = (Window.GetWindow(ChartControl.Parent).FindFirst("ChartWindowChartTraderControl") as ChartTrader).Content as System.Windows.Controls.Grid;
            chartTraderButtonsGrid = chartTraderGrid.Children[0] as System.Windows.Controls.Grid;
            myButtonsGrid = new System.Windows.Controls.Grid();

            chartTraderGrid.Children.Add(myButtonsGrid);

            // add a new space for our custom grid below the ask and bid prices
            chartTraderGrid.RowDefinitions.Add(new System.Windows.Controls.RowDefinition() { Height = new GridLength(445) });

            System.Windows.Controls.Grid.SetRow(myButtonsGrid, 270);
            System.Windows.Controls.Grid.SetColumn(myButtonsGrid, 70);

            chartTraderButtonsGrid.RowDefinitions.Add(new System.Windows.Controls.RowDefinition() { Height = new GridLength(100)    });
            // spacer row
            myButtonsGrid.RowDefinitions.Add(new System.Windows.Controls.RowDefinition() { Height = new GridLength(31) });
            myButtonsGrid.RowDefinitions.Add(new System.Windows.Controls.RowDefinition() { Height = new GridLength(31) });
            myButtonsGrid.ColumnDefinitions.Add(new System.Windows.Controls.ColumnDefinition() { Width = new GridLength(100) });
            // spacer column
            myButtonsGrid.ColumnDefinitions.Add(new System.Windows.Controls.ColumnDefinition() { Width = new GridLength(62) });
            myButtonsGrid.ColumnDefinitions.Add(new System.Windows.Controls.ColumnDefinition() { Width = new GridLength(100) });

            newButton1 = new System.Windows.Controls.Button()
            {
                Background = Brushes.Green,
                BorderBrush = Brushes.DimGray,
                Content = "LONG",
                Height = 30
            };

            newButton2 = new System.Windows.Controls.Button()
            {
                Background = Brushes.Red,
                BorderBrush = Brushes.DimGray,
                Content = "SHORT",
                Height = 30
            };

            newButton3 = new System.Windows.Controls.Button()
            {
                Background = Brushes.Gray,
                BorderBrush = Brushes.DimGray,
                Content = "CANCEL",
                Height = 30
            };



            newButton1.Click += Button1Click;
            System.Windows.Automation.AutomationProperties.SetAutomationId(newButton1, "newButton1");
            chartTraderButtonsGrid.Children.Add(newButton1);
            System.Windows.Controls.Grid.SetRow(newButton1, 12);

            newButton2.Click += Button2Click;
            System.Windows.Automation.AutomationProperties.SetAutomationId(newButton2, "newButton2");
            chartTraderButtonsGrid.Children.Add(newButton2);
            System.Windows.Controls.Grid.SetRow(newButton2, 12);
            System.Windows.Controls.Grid.SetColumn(newButton2, 2);

            newButton3.Click += Button3Click;
            System.Windows.Automation.AutomationProperties.SetAutomationId(newButton3, "newButton3");
            myButtonsGrid.Children.Add(newButton3);
            System.Windows.Controls.Grid.SetColumn(newButton3, 0);
            System.Windows.Controls.Grid.SetRow(newButton3, 12);


        }​

Thank you very much in advance!

[NinjaTrader_Gaby]

Hello gyilaoliver,

Thank you for your post.

It looks like you have added your button to the wrong grid - you're using myButtonsGrid with the custom columns/row but this grid isn't being used for the buttons. You've only added the 'Cancel' button to myButtonsGrid.

Buttons 1 and 2 are using chartTraderButtonsGrid, but Button 3 is using myButtonsGrid.

Please let us know if you need further assistance.

[gyilaoliver]

Hi Gaby,

thanks for your reply.
Actually the code is from a NinjaTrader staff ( i guess, as i found it somewhere here and was made by NinjaTrader_xxx ), so i used that as a base.

I found the code that you mentioned, i changed it, now the cancel button covers the buy button... sorry for these dumb questions, totally new with wpfcontrol...

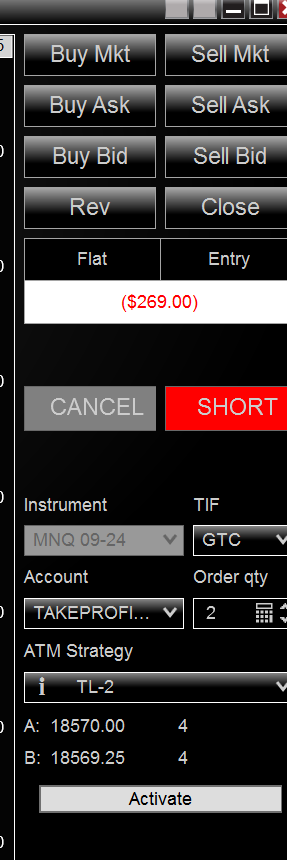

[CODE][
protected void InsertWPFControls()
{
chartTraderGrid = (Window.GetWindow(ChartControl.Parent).FindFirst(" ChartWindowChartTraderControl") as ChartTrader).Content as System.Windows.Controls.Grid;
chartTraderButtonsGrid = chartTraderGrid.Children[0] as System.Windows.Controls.Grid;
myButtonsGrid = new System.Windows.Controls.Grid();

chartTraderGrid.Children.Add(myButtonsGrid);

// add a new space for our custom grid below the ask and bid prices
chartTraderGrid.RowDefinitions.Add(new System.Windows.Controls.RowDefinition() { Height = new GridLength(445) });

System.Windows.Controls.Grid.SetRow(myButtonsGrid, 270);
System.Windows.Controls.Grid.SetColumn(myButtonsGr id, 70);

chartTraderButtonsGrid.RowDefinitions.Add(new System.Windows.Controls.RowDefinition() { Height = new GridLength(100) });
// spacer row
myButtonsGrid.RowDefinitions.Add(new System.Windows.Controls.RowDefinition() { Height = new GridLength(31) });
myButtonsGrid.RowDefinitions.Add(new System.Windows.Controls.RowDefinition() { Height = new GridLength(31) });
myButtonsGrid.ColumnDefinitions.Add(new System.Windows.Controls.ColumnDefinition() { Width = new GridLength(100) });
// spacer column
myButtonsGrid.ColumnDefinitions.Add(new System.Windows.Controls.ColumnDefinition() { Width = new GridLength(62) });
myButtonsGrid.ColumnDefinitions.Add(new System.Windows.Controls.ColumnDefinition() { Width = new GridLength(100) });

newButton1 = new System.Windows.Controls.Button()
{
Background = Brushes.Green,
BorderBrush = Brushes.DimGray,
Content = "LONG",
Height = 30
};

newButton2 = new System.Windows.Controls.Button()
{
Background = Brushes.Red,
BorderBrush = Brushes.DimGray,
Content = "SHORT",
Height = 30
};

newButton3 = new System.Windows.Controls.Button()
{
Background = Brushes.Gray,
BorderBrush = Brushes.DimGray,
Content = "CANCEL",
Height = 30
};



newButton1.Click += Button1Click;
System.Windows.Automation.AutomationProperties.Set AutomationId(newButton1, "newButton1");
chartTraderButtonsGrid.Children.Add(newButton1);
System.Windows.Controls.Grid.SetRow(newButton1, 12);

newButton2.Click += Button2Click;
System.Windows.Automation.AutomationProperties.Set AutomationId(newButton2, "newButton2");
chartTraderButtonsGrid.Children.Add(newButton2);
System.Windows.Controls.Grid.SetRow(newButton2, 12);
System.Windows.Controls.Grid.SetColumn(newButton2, 2);

newButton3.Click += Button3Click;
System.Windows.Automation.AutomationProperties.Set AutomationId(newButton3, "newButton3");
chartTraderButtonsGrid.Children.Add(newButton3);
System.Windows.Controls.Grid.SetColumn(newButton3, 0);
System.Windows.Controls.Grid.SetRow(newButton3, 24);


}
/CODE]

[NinjaTrader_Gaby]

Hello,

I'm not sure what reference sample you're looking at - I recommend taking a look at the SampleWPFModifications script:

https://ninjatrader.com/support/helpGuides/nt8/creating-chart-wpf-(ui)-modifi.htm

You'll need to add rows to the grid, and then set the row of your button. In this sample, there is addedRow1 and addedRow2 - you'll need to add another row (addedRow3) in the same way.
