Generic method to access DrawObject coordinates/price level

[liadmz]

Hi Team,

I am working on an indicator that will alert the user the current price is near one of the HorizontalLine or lines that are drawn on the Chart.
What I am looking for now, is a way to get the line's price (more important - HorizontalLine, and later I will try the same with other lines)


From the documentation, I should use this (Start & End Anchor):

(draw as DrawingTools.HorizontalLine).StartAnchor.Price

But using this code, I got a reference error:

Error on calling OnBarUpdate method on bar 0

I know that I need to check if the object from the DrawingTool list is actually HorizontalLine and I do that using the following code:

if ( draw.GetType().Name == "HorizontalLine")

Trying to do the same check with this code - didn't work

if (draw is DrawingTools.HorizontalLine)

This is the full code I am using now to test:

foreach (DrawingTool draw in DrawObjects.ToList())
{
Print(draw.DisplayName + " --> " + draw.GetType().Name);

if ( draw.GetType().Name == "HorizontalLine")
{
double myDbl = (draw as DrawingTools.HorizontalLine).StartAnchor.Price;
Print("FOUND!!!! " + draw.DisplayName); //myDbl.ToString());
}

}

Thank you for the help

[NinjaTrader_Jesse]

Hello liadmz,

Thank you for the post.

What was the actual error you had seen when running this? The error you provided is just the location and time when it happened or OnBarUpdate and Bar 0. There should be additional details with that for a C# error or other platform generated errors.

You can find a full sample of working with drawing objects and identifying them in the following link. If you plan to export this as an assembly you would need to instead use the details in the second link:

https://ninjatrader.com/support/helpGuides/nt8/drawingtools_drawobjects.htm?zoom_highlightsub=drawobjects

https://ninjatrader.com/support/helpGuides/nt8/considerations_for_compiled_assemblies.htm?zoom_highlightsub=consider

I look forward to being of further assistance.

[liadmz]

Hi Jesse,

This is the error I got:
System.NullReferenceException: Object reference not set to an instance of an object.at NinjaTrader.NinjaScript.Indicators.AlertNext2Line. OnBarUpdate()


I was using the documentation:
https://ninjatrader.com/support/help...ub=drawobjects

But I cannot see any reference to the way I can get the price value of the line.

Essentially, I want to be able to alert when the current price (Close[0]) is getting close the the lines drawn on te chart.


I used this code to test the HorizontalLine and I get this strange behavior - seems like the code doesn't recognize the HorizontalLine Object as such




Thank you!

[liadmz]

I have further looked into other questions here in the forum, this one is similar to my case:
https://ninjatrader.com/support/foru...e-doesn-t-work


If I try to use the code from this post, I get the same error

foreach (DrawingTool draw in DrawObjects.ToList())
{
string drawAsString = draw.ToString();
if (drawAsString.Contains("HorizontalLine"))
{
Print("HorizontalLine Object: " + " GetType().Name: " + draw.GetType().Name + " draw.Tag: " + draw.Tag);
DrawingTools.HorizontalLine hl = draw as DrawingTools.HorizontalLine;
Print(hl.StartAnchor.Price);
}
}

Result:
HorizontalLine Object: GetType().Name: HorizontalLine draw.Tag: Horizontal Line 53
Indicator 'AlertNext2Line': Error on calling 'OnBarUpdate' method on bar 3: Object reference not set to an instance of an object.



Seems like the code is unable to convert the Draw Object into HorizontalLine object for some reason.

That is when:
GetType().Name --> Return "HorizontalLine"
But
if (draw is DrawingTools.HorizontalLine) will return false

[NinjaTrader_Jesse]

Hello liadmz,

The error you are getting is a C# error meaning that the object you used was null when you tried to use it. The following line would be one example of an area which can produce that error. If hl is null then accessing StartAnchor will cause that error.

Print(hl.StartAnchor.Price);

In what you provided you are mixing two of the samples that we provide, one uses type casting and one does not. The second link I provided shows the way that does not use type casting, that uses the string types to locate the objects and then uses dynamic to avoid casts. If you are using a exported dll version of your code that would be important. If you are not you can stick to not using strings and just use the sample from the first link I provided.

Based on the observation you made that when the types name is HorizontalLine but the cast fails that leads me to believe you are using this in a context where you need to use dynamic. That would be the sample from the second link I provided, that does not use type casts, you use strings to know if the type is equal.

I look forward to being of further assistance.

[liadmz]

Hi Jesse,

Thank you for the reply.
I tried to use the dynamic method and it did work

just for me to fully understand how it works,

How do I know when should I use the regular way (first link) and when do i need to use the dynamic one?


Thank you

[NinjaTrader_Jesse]

Hello liadmz,

Basically you would run into the situation you just did where the type cast fails. You should also see the object is null.

Type casting will only work for types that are not held in the NinjaTrader.Custom assembly, this applies to any exports you make. Once your code is exported as a dll, referencing a type that's in the custom assembly would require using dynamic/strings. If you are working in the NinjaTrader.Custom context or just as source code you generally won't need to use dynamic because the context is the same, all the code is in the same place.

I look forward to being of further assistance.

[liadmz]

Hi Jesse,

Thank you for the help!

Now it works as expected and I can programmatically access all the horizontal lines on the chart.

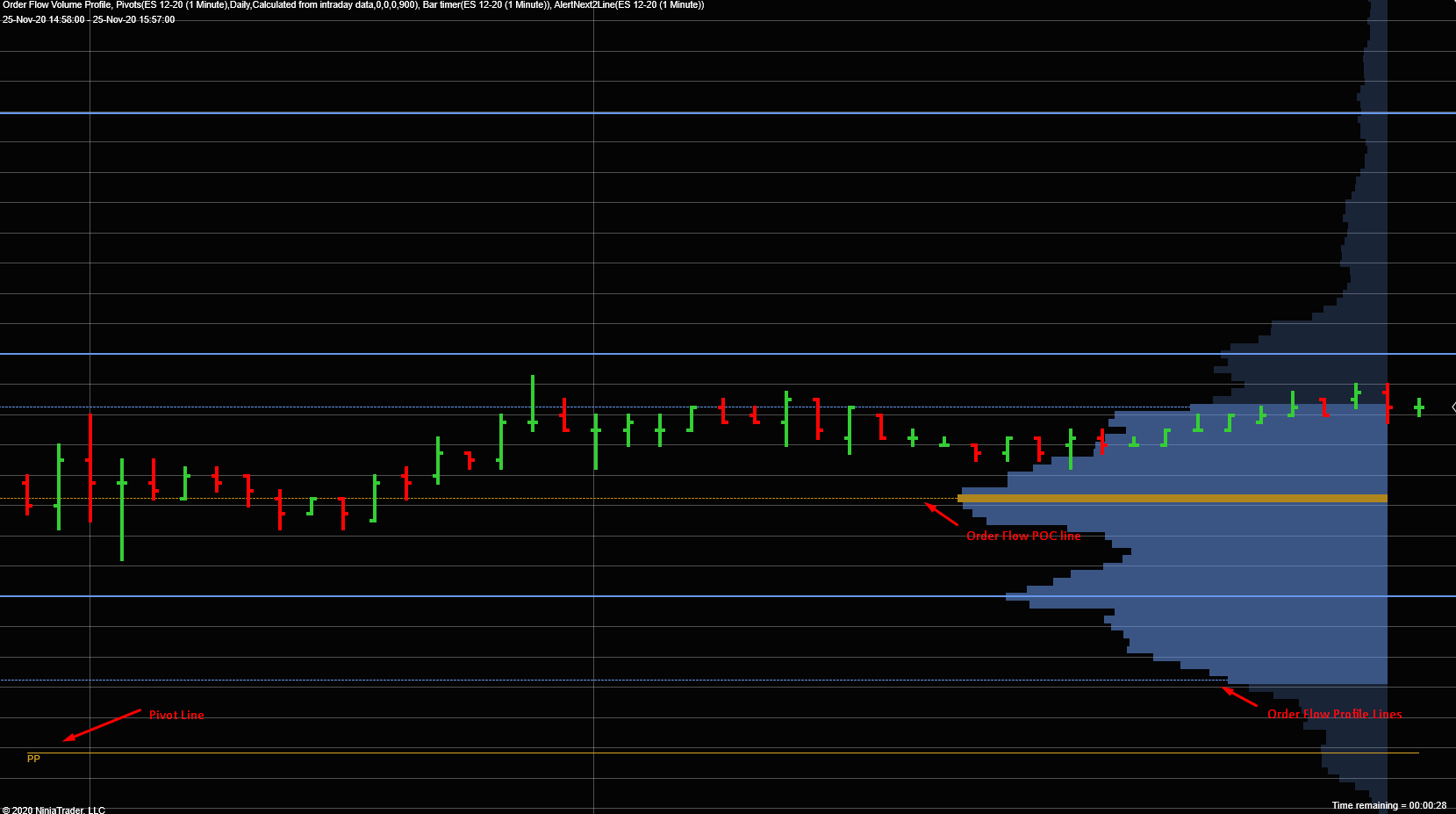

Is there a way to get also the Pivot lines (from the indicator "Pivots" PP, R1, R2, S1, S2) and the lines from the OrderFlow Volume Profile (POC and Value Area Lines)?




Thank you!

[NinjaTrader_Jesse]

Hello liadmz,

You can call most indicators directly from the indicator you are making, that would be the correct approach in most cases. That makes sure the indicator being used has the data it needs and can be used in all contexts where the parent indicator is being used. This is also important for more complex indicators some have custom methods to access their data and not plotted objects.

The orderflow tools require a specific use which is shown in their help guide documentation. The volume profile is not currently exposed for NinjaScript.

The pivots you can access its plot data through code.

https://ninjatrader.com/support/helpGuides/nt8/pivots.htm?zoom_highlightsub=pivots

Its always best to check the indicator help guide page first to see what the example shows. For custom indicators you may need to explore the code if available to see how it plots, depending on how it draws would determine how you can access the data. some items simply don't expose data.

You can also use the chart controls indicator collection to find indicators if you are trying to do something custom in realtime. The indicators collection is dynamic like the drawing object collection, it will only be present in realtime and when the chart is present, the indicator load order is also not guaranteed. From this context you can access the plot data by using the indicators plots GetValueAt method and an index similar to how you would access data from OnRender.

https://ninjatrader.com/support/helpGuides/nt8/chartcontrol_indicators.htm?zoom_highlightsub=indicators

https://ninjatrader.com/support/helpGuides/nt8/getvalueat.htm?zoom_highlightsub=getvalue

Please let me know if I may be of further assistance.
