Ninja PairsTrader

[MXASJ]

Hi All,

I've been working on a NT7 Strategy to trade pairs/spreads and have reached the limits of my current coding ability. Attached please find Strategy NinjaPairsv1.00. It works for daily bars in backtesting, but seems to have issues if you try minute bars.

I would not suggest you use this in any way for live trading.

The "alpha" logic behind it is is to long/short a pair when the spread diverges more than two standard deviations from the mean. To measure that I created an indicator called SpreadZScore, which is also in the zip file.

I am posting this here in the hopes that this code can be made better.

I'll walk through what I've done in the next post.

[MXASJ]

The Variables section is pretty straight forward:

// Variables
private double upperLineValue = 2.0; // Upper Standard Deviation Line
private double lowerLineValue = -2.0; // Lower Standard Deviation Line
private int zPeriod = 14; // Loopback period for z-score calculation
private int quotedQuantity = 100; // Default setting for QuotedQuantity
private int hedgeQuantity = 90; // Default setting for HedgeQuantity
private string hedgeInstrument = @"EWT"; // Default setting for HedgeInstrument
private bool dynamicHedgeRatio = false; // Future use

private double priceErrorCheck = 2; // Multiplier for "unusual" deviations to ignore
private double coverSpread = 0; // ZScore to cover spread

private IOrder entryOrderL = null;
private IOrder entryOrderHedgeL = null;
private IOrder entryOrderS = null;
private IOrder entryOrderHedgeS = null;
private IOrder exitOrderL = null;
private IOrder exitOrderHedgeL = null;
private IOrder exitOrderS = null;
private IOrder exitOrderHedgeS = null;

private int barValue;
private SpreadZScore mySZScore;
private bool backtest = true;

private int inventory =0; // Our Market Position indicator

I'm using IOrders, and for testing purposes I've been using 100 shares of EWS against 90 shares of EWT. There are probably better pairs, and if anyone has a suggestion so we are all testing the same thing, great!

In Initialize, I have this:

CalculateOnBarClose = false;
EntriesPerDirection = 1;
EntryHandling = EntryHandling.UniqueEntries;//
ExitOnClose = false;
BarsRequired = 14;
barValue = Math.Max(1, base.BarsPeriod.Value);
Add(hedgeInstrument,BarsPeriod.Id, barValue);

//TraceOrders = true;

mySZScore = SpreadZScore(hedgeInstrument, hedgeQuantity, lowerLineValue, quotedQuantity, upperLineValue, zPeriod);
Add(mySZScore);

So far pretty straight forward...

[MXASJ]

OnStartUp has some definations in it. For this, I'm using market orders but eventualy want to change that to limit orders and have the option to quote on one leg of the pair/spread. Here is the code:

protected override void OnStartUp()//////////////////////////////////////////////////////////////
{
Print(DateTime.Now+" STRATEGY PairsTrader "+ Instrument.FullName +"/" + hedgeInstrument + " ENABLED");
}

private void GoLongSpread()
{
if (BarsInProgress == 0)
{
if (entryOrderL == null)
entryOrderL= EnterLong(0 ,quotedQuantity, "Long Spread");
}
}

private void CloseLongSpread()
{
if (BarsInProgress == 0)
{
if (exitOrderL == null)
exitOrderL= ExitLong(0 ,quotedQuantity, "Close Long Spread", "Long Spread");
}
}

private void GoShortSpread()
{
if (BarsInProgress == 0)
{
if (entryOrderS == null)
entryOrderS = EnterShort(0, quotedQuantity, "Short Spread");
}
}

private void CloseShortSpread()
{
if (BarsInProgress == 0)
{
if (exitOrderS == null)
exitOrderS = ExitShort(0, quotedQuantity, "Close Short Spread","Short Spread");
}
}

The OnExecution part is set up so that you don't take a position in the second leg until the first leg is filled.

protected override void OnExecution(IExecution execution)/////////////////////////////////////////////////////////
{
try
{
if (entryOrderL != null && entryOrderL.Token == execution.Order.Token)
{
if (execution.Order.OrderState == OrderState.Filled || execution.Order.OrderState == OrderState.PartFilled
|| (execution.Order.OrderState == OrderState.Cancelled && execution.Order.Filled > 0))
{
entryOrderHedgeL = EnterShort(1, hedgeQuantity, "Long Spread Hedge");
if (execution.Order.OrderState != OrderState.PartFilled)
{
entryOrderL = null;
inventory ++;
}
}
}
if (exitOrderL != null && exitOrderL.Token == execution.Order.Token)
{
if (execution.Order.OrderState == OrderState.Filled || execution.Order.OrderState == OrderState.PartFilled
|| (execution.Order.OrderState == OrderState.Cancelled && execution.Order.Filled > 0))
{
exitOrderHedgeL = ExitShort(1, hedgeQuantity, "Close Long Spread Hedge", "Long Spread Hedge");
if (execution.Order.OrderState != OrderState.PartFilled)
{
exitOrderL = null;
inventory = 0;
}
}
}
}
catch (Exception e)
{
Log("TryCatch Error: STRATEGY PairsTrader. OnExecution/Long Logic.", LogLevel.Error);
Print(Time[0] + " " + e.ToString());
}
try
{
if (entryOrderS != null && entryOrderS.Token == execution.Order.Token)
{
if (execution.Order.OrderState == OrderState.Filled || execution.Order.OrderState == OrderState.PartFilled
|| (execution.Order.OrderState == OrderState.Cancelled && execution.Order.Filled < 0))
{
entryOrderHedgeS = EnterLong(1, hedgeQuantity, "Short Spread Hedge");
if (execution.Order.OrderState != OrderState.PartFilled)
{
entryOrderS = null;
inventory --;
}
}
}
if (exitOrderS != null && exitOrderS.Token == execution.Order.Token)
{
if (execution.Order.OrderState == OrderState.Filled || execution.Order.OrderState == OrderState.PartFilled
|| (execution.Order.OrderState == OrderState.Cancelled && execution.Order.Filled < 0))
{
exitOrderHedgeS = ExitLong(1, hedgeQuantity, "Close Short Spread Hedge", "Short Spread Hedge");
if (execution.Order.OrderState != OrderState.PartFilled)
{
exitOrderS = null;
inventory = 0;
}
}
}
}
catch (Exception e)
{
Log("TryCatch Error: STRATEGY PairsTrader. OnExecution/Short Logic.", LogLevel.Error);
Print(Time[0] + " " + e.ToString());
}
}

[MXASJ]

Lastly, OnBarUpdate:

protected override void OnBarUpdate()///////////////////////////////////////////////////////////
{
if (backtest == false)
{
if (Historical)
return;
}

if( inventory >= 0
&& mySZScore[0] > upperLineValue
&& mySZScore[0] < (upperLineValue*priceErrorCheck))
{
PrintWithTimeStamp("STRATEGY PairsTrader " +"Upper Line Value "+upperLineValue+ " Breached. Spread Z Score is: "+ mySZScore[0]);
GoShortSpread();
}
if( inventory < 0
&& CrossBelow(mySZScore, coverSpread,1))
{
PrintWithTimeStamp("STRATEGY PairsTrader " +"Center Line Value "+coverSpread+ " Breached. Inventory is "+ inventory +
" Spread Z Score is: "+ mySZScore[0]);
CloseShortSpread();
}
if( inventory <= 0
&& mySZScore[0] < lowerLineValue
&& mySZScore[0] > (lowerLineValue*priceErrorCheck))
{
PrintWithTimeStamp("STRATEGY PairsTrader " +"Lower Line Value "+lowerLineValue+" Breached. Spread Z Score is: "+ mySZScore[0]);
GoLongSpread();
}
if( inventory > 0
&& CrossAbove(mySZScore, coverSpread, 1))
{
PrintWithTimeStamp("STRATEGY PairsTrader " +"Center Line Value "+coverSpread+ " Breached. Inventory is "+ inventory +
" Spread Z Score is: "+ mySZScore[0]);
CloseLongSpread();
}

}
protected override void OnTermination()
{
Print(DateTime.Now+" STRATEGY PairsTrader "+ Instrument.FullName +"/" +hedgeInstrument + " DISABLED");
}

[MXASJ]

While there has been a lot of discussion about trading pairs here I have not come across any code to actually execute those trades. The "alpha" idea in that strategy may not be the best, but I am keen to get the trade execution side to be robust.

Any input is most welcome!

[MXASJ]

And a quick word of warning: That strategy will crash NT7 if used in real-time. Again backtesting daily works but anything else is currently not working as expected.

[NinjaTrader_Bertrand]

Thanks sharing your work and offer for collaboration to streamline efforts, I'll have a look this PM here...

[MXASJ]

Bertrand did you get a chance to look at that code? I'm wondering if I should wait for the next beta release... or if I messed up and need to relook at how I coded it. Thanks.

[NinjaTrader_Bertrand]

Sorry, didn't really get a chance to dive into, however can confirm it breaks down here to on my end...have you hard coding the ADD for the instruments in?

[MXASJ]

It looks like the indicator used in the strategy was throwing exceptions, which I've asked about in another thread. I've taken out that code for now and replaced it an it seems to work in both backest and real-time.

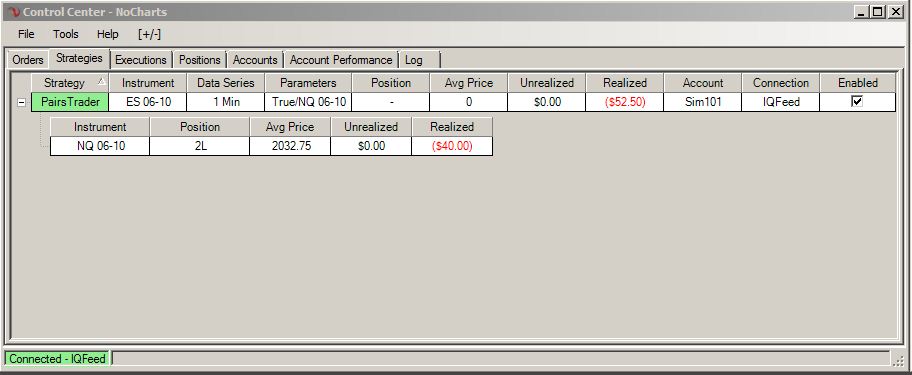

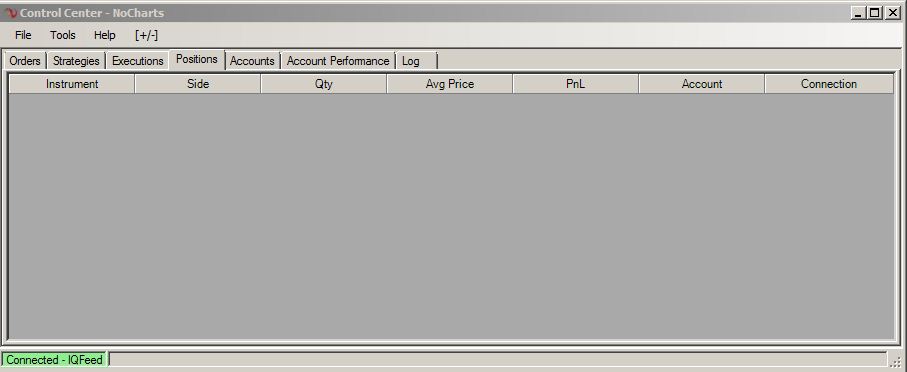

One unusual thing is how two instruments are diplayed in the Strategies tab vs. how they show up in the Positions tab. In the attached screen shots I'm flat (according to Positions and Orders), but the Stratgies tab makes it look like I have 2L open on one of the legs.

Is that expected?

[NinjaTrader_Bertrand]

That does look strange MXASJ, I agree - so you're long NQ and short ES giving you a net flat position like Positions shows?

Thanks

[MXASJ]

I'll email you the code shortly, Bertrand. Thanks for looking at it.

[chrisdc5]

Great work

Thanks for posting the strategy, I've been interested in backtesting/implementing this strategy for futures and I was looking for a good place to start.

I plan on testing this out over the weekend, looks great so far though!

[MXASJ]

Hi chrisdc5,

You should consider taking a look at this code instead of the earlier code I posted. It uses an updated version of the SpreadZScore indicator. Again I'm not looking for a money-making idea with this code, I'm looking for code that will execute long and short positions in different instruments reliably. It is not there yet...

NT7b15 compile.

[zweistein]

Hello MAXASJ

I used your PairsTraderBeta strategy and your SpreadZScore indicator as a basis to try out a few
things.
I left untouched your algoritm for triggering the entry-exits, but I rewrote much of the code in
order to understand it better myself.
Attached you find the modified strategy, it seems to work fine in backtesting and under
simulated data feed. It should also work with real time data, but I could not test as we have
saturday.
As you see I changed the entry-exit logic and for me it works!
Feel free to do further testing/optimizing finding the best pair and standard deviation values
for entry/exit.

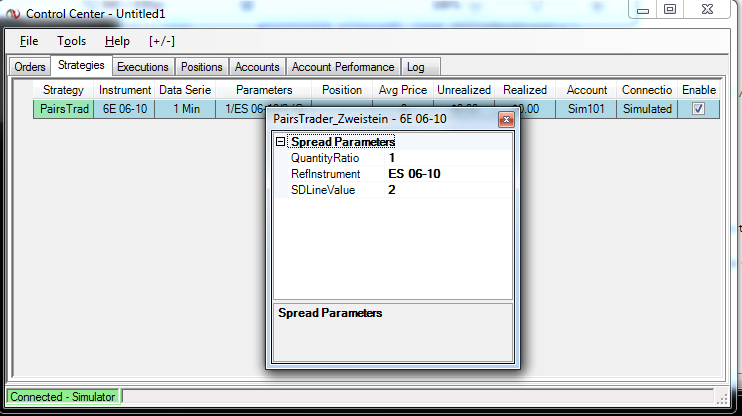

For real-time testing (also under Market replay) I prefere to keep a strategy running and change
the parameters on the fly ( As per StrategyParametersEditor on my site).
I added this feature into a compiled version of Pairs_Zweistein and I invite you to try it out
and to give me some feedback on it. It is a zip file and you do File->Utilities->import
NinjaScript-> Pairs_Zweistein.zip
all should work then.

I have some more ideas, among them:
- refInstrument : make it of type Instrument so that the user must always enter a valid
instrument.
- run optimization on input parameters (maybe type change of parameters necessary)
- Compare traded instrument to a basket of reference (hedged) instruments.
- use limit orders for entries (more important for thinly traded stocks)
