Executions no longer visible on chart

[MindfulTrader]

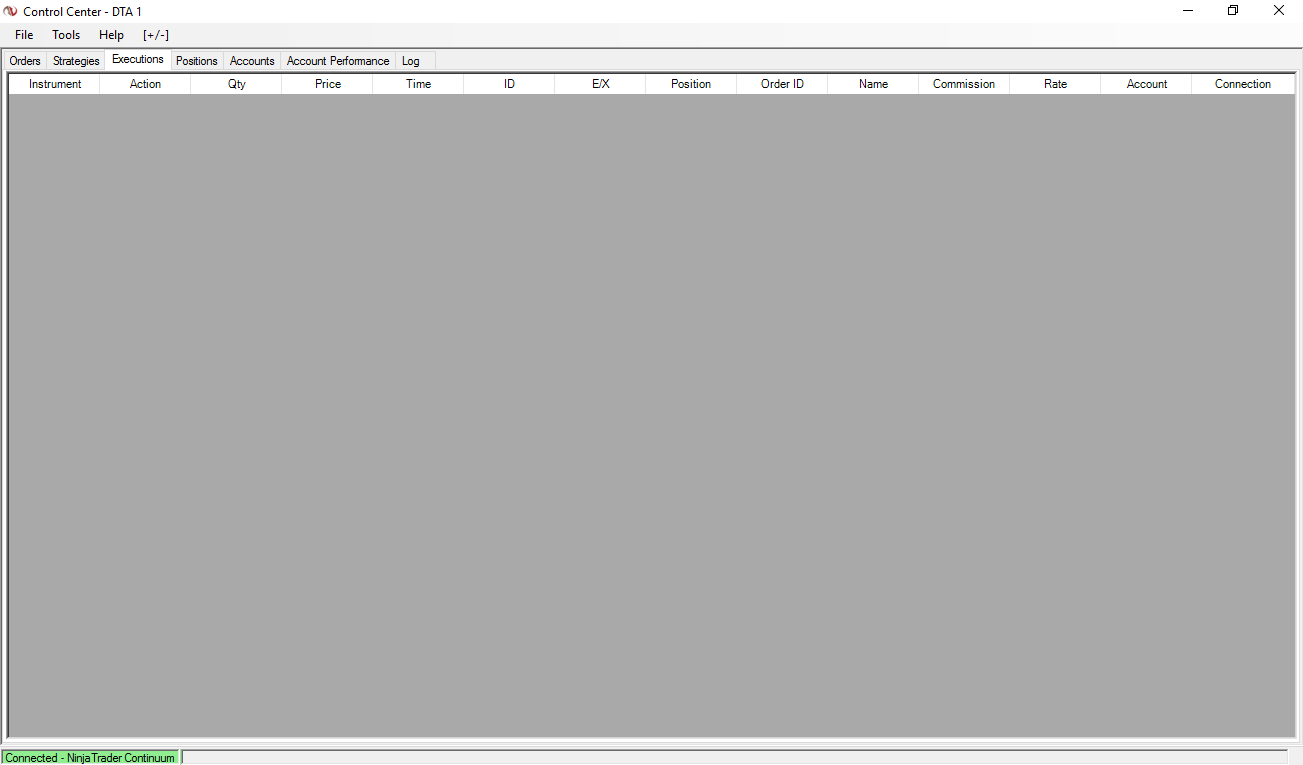

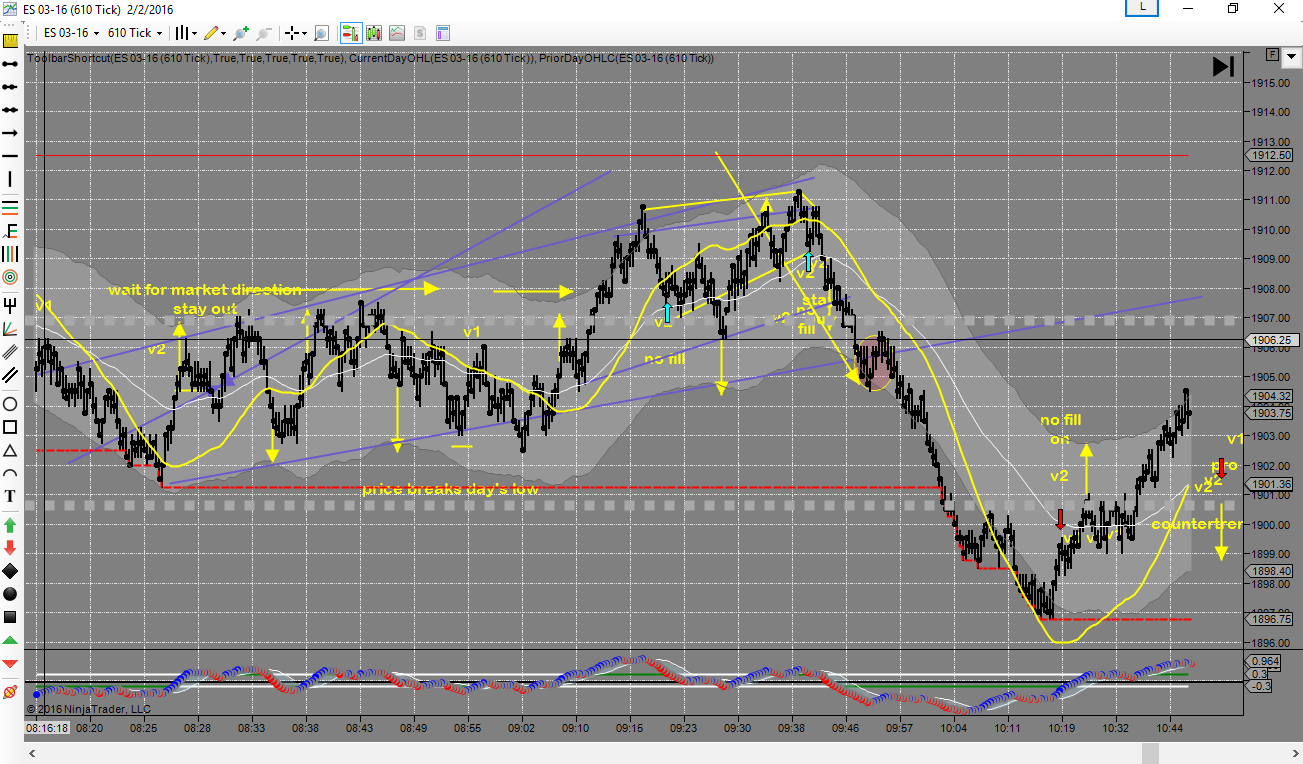

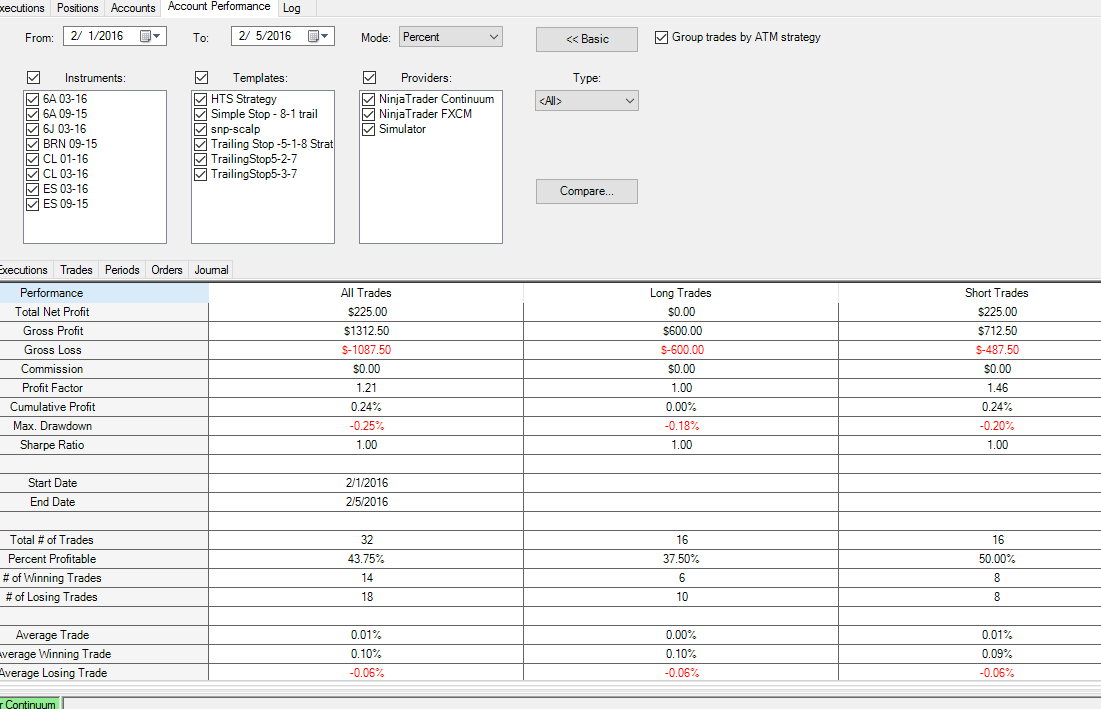

I traded all week on a single chart, and, on Friday, when I went to review the chart, I could not see any of my executions (Figure 1), and they do not show up in the Execution tab of the Control Center (Figure 2). However, if one looks at the account performance (Figure 3), table in the Control Center, it's obvious that trading activity occurred during the selected time period.

How can I reconfigure the chart to enable viewing the executions?

[NinjaTrader_ZacharyG]

Hello MindfulTrader,

Thank you for writing in.

The Executions tab will show the current day's executions, not past executions.

Please follow the instructions below to modify the plotting of trade executions:

• Right click in your chart and select the menu 'Data Series...'
• Find the 'Plot executions' parameter for each data series and change to the desired value
  DoNotPlot - Do not display historical orders on the chart
  MarkersOnly - Show historical order with markers, no text
  TextAndMarker - Show historical order with markers and text
• Press the 'OK' button

I have provided a link below to our Help Guide that goes over how to edit data series parameters.

http://www.ninjatrader.com/support/helpGuides/nt7/working_with_price_data.htm
