Hello Ninjatrader,

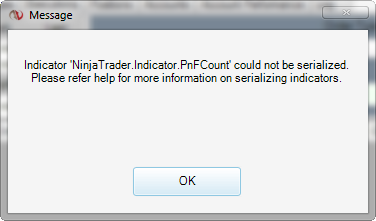

I am having a heak of a time trying to fix a serialization issue:
One thing worth mentioning that the code does not plot anything but does draw text on each Point and Figure bar. I know most common serialization issues comes from color but am stumped on how to fix it.
I have researched this: http://www.ninjatrader.com/support/f...ead.php?t=4977
Here is the code causing me issues..
Code:
I am having a heak of a time trying to fix a serialization issue:
One thing worth mentioning that the code does not plot anything but does draw text on each Point and Figure bar. I know most common serialization issues comes from color but am stumped on how to fix it.
I have researched this: http://www.ninjatrader.com/support/f...ead.php?t=4977
Here is the code causing me issues..
Code:
Code:
#region Using declarations
using System;
using System.ComponentModel;
using System.Diagnostics;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Xml.Serialization;
using NinjaTrader.Cbi;
using NinjaTrader.Data;
using NinjaTrader.Gui.Chart;
#endregion
// This namespace holds all indicators and is required. Do not change it.
namespace NinjaTrader.Indicator
{
/// <summary>
/// Enter the description of your new custom indicator here
/// </summary>
[Description("Enter the description of your new custom indicator here")]
public class PnFCount : Indicator
{
#region Variables
private int BoxSize = 7;
public DataSeries count;
#endregion
/// <summary>
/// This method is used to configure the indicator and is called once before any bar data is loaded.
/// </summary>
protected override void Initialize()
{
Overlay = true;
count = new DataSeries(this);
CalculateOnBarClose = false;
}
/// <summary>
/// Called on each bar update event (incoming tick)
/// </summary>
protected override void OnBarUpdate()
{
if(CurrentBar <= 4)return;
count[0] = Math.Round((((High[0] - Low[0])/TickSize)/BoxSize)+1,0);
if (FirstTickOfBar)
{
Print("High: "+High[1]+" Low: "+Low[1]);
}
if(Open[0] < Close[0])
{
DrawText("count"+CurrentBar.ToString(),count[0].ToString(),0,Close[0]+(BoxSize*TickSize),Color.DimGray);
}
else
{
DrawText("count"+CurrentBar.ToString(),count[0].ToString(),0,Close[0]-(BoxSize*TickSize),Color.DimGray);
}
}
#region Properties
[Description("Numbers of bars used for calculations")]
[GridCategory("Parameters")]
public int Box_Size
{
get { return BoxSize; }
set { BoxSize = Math.Max(1, value); }
}
#endregion
}
}
#region NinjaScript generated code. Neither change nor remove.
// This namespace holds all indicators and is required. Do not change it.
namespace NinjaTrader.Indicator
{
public partial class Indicator : IndicatorBase
{
private PnFCount[] cachePnFCount = null;
private static PnFCount checkPnFCount = new PnFCount();
/// <summary>
/// Enter the description of your new custom indicator here
/// </summary>
/// <returns></returns>
public PnFCount PnFCount(int box_Size)
{
return PnFCount(Input, box_Size);
}
/// <summary>
/// Enter the description of your new custom indicator here
/// </summary>
/// <returns></returns>
public PnFCount PnFCount(Data.IDataSeries input, int box_Size)
{
if (cachePnFCount != null)
for (int idx = 0; idx < cachePnFCount.Length; idx++)
if (cachePnFCount[idx].Box_Size == box_Size && cachePnFCount[idx].EqualsInput(input))
return cachePnFCount[idx];
lock (checkPnFCount)
{
checkPnFCount.Box_Size = box_Size;
box_Size = checkPnFCount.Box_Size;
if (cachePnFCount != null)
for (int idx = 0; idx < cachePnFCount.Length; idx++)
if (cachePnFCount[idx].Box_Size == box_Size && cachePnFCount[idx].EqualsInput(input))
return cachePnFCount[idx];
PnFCount indicator = new PnFCount();
indicator.BarsRequired = BarsRequired;
indicator.CalculateOnBarClose = CalculateOnBarClose;
#if NT7
indicator.ForceMaximumBarsLookBack256 = ForceMaximumBarsLookBack256;
indicator.MaximumBarsLookBack = MaximumBarsLookBack;
#endif
indicator.Input = input;
indicator.Box_Size = box_Size;
Indicators.Add(indicator);
indicator.SetUp();
PnFCount[] tmp = new PnFCount[cachePnFCount == null ? 1 : cachePnFCount.Length + 1];
if (cachePnFCount != null)
cachePnFCount.CopyTo(tmp, 0);
tmp[tmp.Length - 1] = indicator;
cachePnFCount = tmp;
return indicator;
}
}
}
}
// This namespace holds all market analyzer column definitions and is required. Do not change it.
namespace NinjaTrader.MarketAnalyzer
{
public partial class Column : ColumnBase
{
/// <summary>
/// Enter the description of your new custom indicator here
/// </summary>
/// <returns></returns>
[Gui.Design.WizardCondition("Indicator")]
public Indicator.PnFCount PnFCount(int box_Size)
{
return _indicator.PnFCount(Input, box_Size);
}
/// <summary>
/// Enter the description of your new custom indicator here
/// </summary>
/// <returns></returns>
public Indicator.PnFCount PnFCount(Data.IDataSeries input, int box_Size)
{
return _indicator.PnFCount(input, box_Size);
}
}
}
// This namespace holds all strategies and is required. Do not change it.
namespace NinjaTrader.Strategy
{
public partial class Strategy : StrategyBase
{
/// <summary>
/// Enter the description of your new custom indicator here
/// </summary>
/// <returns></returns>
[Gui.Design.WizardCondition("Indicator")]
public Indicator.PnFCount PnFCount(int box_Size)
{
return _indicator.PnFCount(Input, box_Size);
}
/// <summary>
/// Enter the description of your new custom indicator here
/// </summary>
/// <returns></returns>
public Indicator.PnFCount PnFCount(Data.IDataSeries input, int box_Size)
{
if (InInitialize && input == null)
throw new ArgumentException("You only can access an indicator with the default input/bar series from within the 'Initialize()' method");
return _indicator.PnFCount(input, box_Size);
}
}
}
#endregion
