willium vix fix indicator

[sumana.m]

HI

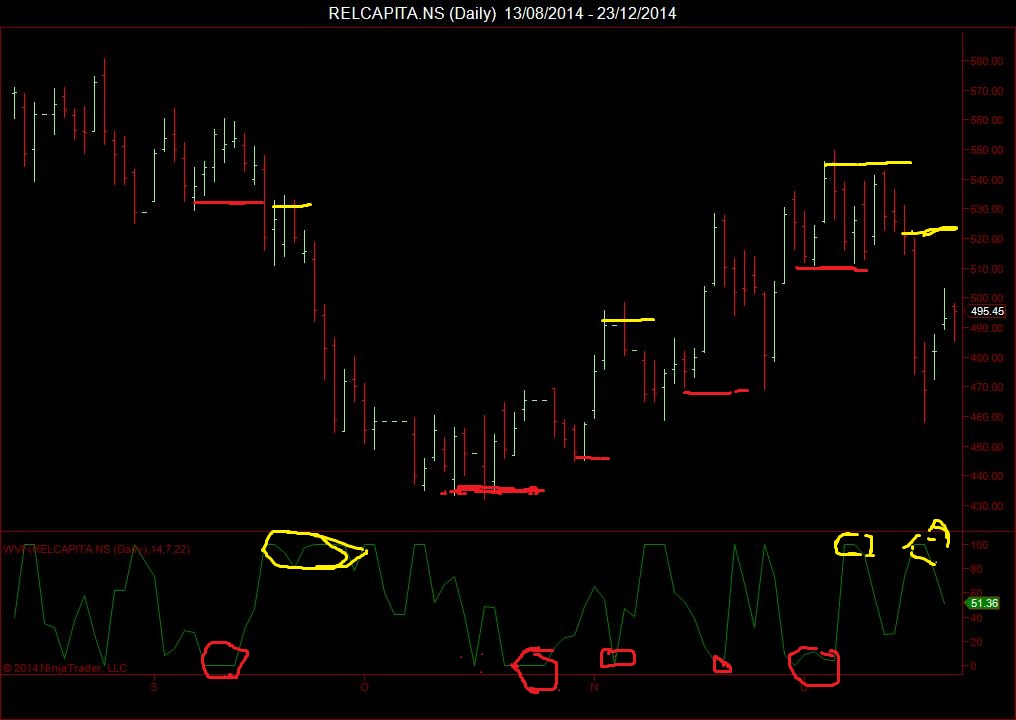

yes.script is working fine.But not able to mark only the image i posted here.

[NinjaTrader_Jesse]

Hello,

This would be because you have the indicator in Panel 2 and need to specify that the indicator needs to draw on the PricePanel rather than the Indicator Panel.

Please add the following to your Initialize method.

protected override void Initialize()
{
DrawOnPricePanel = true;
}

http://www.ninjatrader.com/support/helpGuides/nt7/drawonpricepanel.htm?zoom_highlightsub=DrawOnPricePanel

Please let me know if I may be of additional assistance.

[sumana.m]

Hi

Thanks for the help and support.
i shall come if i made any modification with it.

[koganam]

hi

that forloop should start checking from the 1st bar of the chart.any substitute macro defined in ninja ?

got error error calling onbar update method on log.

#region Using declarations
using System;
using System.ComponentModel;
using System.Diagnostics;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Xml.Serialization;
using NinjaTrader.Cbi;
using NinjaTrader.Data;
using NinjaTrader.Gui.Chart;
#endregion

// This namespace holds all indicators and is required. Do not change it.
namespace NinjaTrader.Indicator
{
    /// <summary>
    /// Willium Vix Fix -- Of tuple
    /// </summary>
    [Description("Willium Vix Fix -- Of tuple")]
    public class WVF : Indicator
    {
        #region Variables
        // Wizard generated variables
            private int wVF_Period = 22; // Default setting for WVF_Period
            private int stochD_Period = 14; // Default setting for StochD_Period
            private int stochK_Period=7;
            private int CustSmoothing=3;
            private DataSeries        CurVar_DS;
            private DataSeries        CurVar_StochK;
        // User defined variables (add any user defined variables below)
        #endregion

        /// <summary>
        /// This method is used to configure the indicator and is called once before any bar data is loaded.
        /// </summary>
        protected override void Initialize()
        {
            Add(new Plot(Color.FromKnownColor(KnownColor.Orange), PlotStyle.Line, "WVFplot0"));
            Add(new Plot(Color.FromKnownColor(KnownColor.Green), PlotStyle.Line, "StockDplot"));
            Overlay                = false;
            CurVar_DS = new DataSeries(this);
            CurVar_StochK=new DataSeries(this);
        }

        /// <summary>
        /// Called on each bar update event (incoming tick)
        /// </summary>
        protected override void OnBarUpdate()
        {
            // Use this method for calculating your indicator values. Assign a value to each
            // plot below by replacing 'Close[0]' with your own formula.
            //CurRSI_DS.Set(RSI(periodRSI,0)[0]);

            double LLV = MIN(Close, wVF_Period)[0];
            double HHV = MAX(Close, wVF_Period)[0];
            //WVF = (HHV (Close,22) - Low)/(HHV(Close,22))*100;
            CurVar_DS.Set(100*((HHV-Low[0])/HHV));

            //WVFplot0.Set(CurVar_DS[0]);
            //StoK.Set(SMA(StoRSI_DS, periodK)[0]);
            CurVar_StochK.Set(StochasticsFast(CurVar_DS,stochD_Period,stochK_Period/*,CustSmoothing*/).K[0]);
            //CurVar_StochK.Set(Stochastics(CurVar_DS,stochD_Period,2).D[0]);
            StockDplot.Set(CurVar_StochK[0]);

            for(int i = 0; i< 10; i++)
            {
            DrawLine("myLine" + CurrentBar + i, 2, Low[0], 0, Low[0], Color.Red);
            }
        }

        #region Properties
        [Browsable(false)]    // this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]        // this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public DataSeries WVFplot0
        {
            get { return Values[0]; }
        }

        [Browsable(false)]    // this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]        // this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public DataSeries StockDplot
        {
            get { return Values[1]; }
        }

        [Description("WVF works with two value 22 and 26")]
        [GridCategory("Parameters")]
        public int WVF_Period
        {
            get { return wVF_Period; }
            set { wVF_Period = Math.Max(22, value); }
        }

        [Description("")]
        [GridCategory("Parameters")]
        public int StochD_Period
        {
            get { return stochD_Period; }
            set { stochD_Period = Math.Max(1, value); }
        }

        [Description("")]
        [GridCategory("Parameters")]
        public int StochK_Period
        {
            get { return stochK_Period; }
            set { stochK_Period = Math.Max(1, value); }
        }


        #endregion

    }
}

#region NinjaScript generated code. Neither change nor remove.
// This namespace holds all indicators and is required. Do not change it.
namespace NinjaTrader.Indicator
{
    public partial class Indicator : IndicatorBase
    {
        private WVF[] cacheWVF = null;

        private static WVF checkWVF = new WVF();

        /// <summary>
        /// Willium Vix Fix -- Of tuple
        /// </summary>
        /// <returns></returns>
        public WVF WVF(int stochD_Period, int stochK_Period, int wVF_Period)
        {
            return WVF(Input, stochD_Period, stochK_Period, wVF_Period);
        }

        /// <summary>
        /// Willium Vix Fix -- Of tuple
        /// </summary>
        /// <returns></returns>
        public WVF WVF(Data.IDataSeries input, int stochD_Period, int stochK_Period, int wVF_Period)
        {
            if (cacheWVF != null)
                for (int idx = 0; idx < cacheWVF.Length; idx++)
                    if (cacheWVF[idx].StochD_Period == stochD_Period && cacheWVF[idx].StochK_Period == stochK_Period && cacheWVF[idx].WVF_Period == wVF_Period && cacheWVF[idx].EqualsInput(input))
                        return cacheWVF[idx];

            lock (checkWVF)
            {
                checkWVF.StochD_Period = stochD_Period;
                stochD_Period = checkWVF.StochD_Period;
                checkWVF.StochK_Period = stochK_Period;
                stochK_Period = checkWVF.StochK_Period;
                checkWVF.WVF_Period = wVF_Period;
                wVF_Period = checkWVF.WVF_Period;

                if (cacheWVF != null)
                    for (int idx = 0; idx < cacheWVF.Length; idx++)
                        if (cacheWVF[idx].StochD_Period == stochD_Period && cacheWVF[idx].StochK_Period == stochK_Period && cacheWVF[idx].WVF_Period == wVF_Period && cacheWVF[idx].EqualsInput(input))
                            return cacheWVF[idx];

                WVF indicator = new WVF();
                indicator.BarsRequired = BarsRequired;
                indicator.CalculateOnBarClose = CalculateOnBarClose;
#if NT7
                indicator.ForceMaximumBarsLookBack256 = ForceMaximumBarsLookBack256;
                indicator.MaximumBarsLookBack = MaximumBarsLookBack;
#endif
                indicator.Input = input;
                indicator.StochD_Period = stochD_Period;
                indicator.StochK_Period = stochK_Period;
                indicator.WVF_Period = wVF_Period;
                Indicators.Add(indicator);
                indicator.SetUp();

                WVF[] tmp = new WVF[cacheWVF == null ? 1 : cacheWVF.Length + 1];
                if (cacheWVF != null)
                    cacheWVF.CopyTo(tmp, 0);
                tmp[tmp.Length - 1] = indicator;
                cacheWVF = tmp;
                return indicator;
            }
        }
    }
}

// This namespace holds all market analyzer column definitions and is required. Do not change it.
namespace NinjaTrader.MarketAnalyzer
{
    public partial class Column : ColumnBase
    {
        /// <summary>
        /// Willium Vix Fix -- Of tuple
        /// </summary>
        /// <returns></returns>
        [Gui.Design.WizardCondition("Indicator")]
        public Indicator.WVF WVF(int stochD_Period, int stochK_Period, int wVF_Period)
        {
            return _indicator.WVF(Input, stochD_Period, stochK_Period, wVF_Period);
        }

        /// <summary>
        /// Willium Vix Fix -- Of tuple
        /// </summary>
        /// <returns></returns>
        public Indicator.WVF WVF(Data.IDataSeries input, int stochD_Period, int stochK_Period, int wVF_Period)
        {
            return _indicator.WVF(input, stochD_Period, stochK_Period, wVF_Period);
        }
    }
}

// This namespace holds all strategies and is required. Do not change it.
namespace NinjaTrader.Strategy
{
    public partial class Strategy : StrategyBase
    {
        /// <summary>
        /// Willium Vix Fix -- Of tuple
        /// </summary>
        /// <returns></returns>
        [Gui.Design.WizardCondition("Indicator")]
        public Indicator.WVF WVF(int stochD_Period, int stochK_Period, int wVF_Period)
        {
            return _indicator.WVF(Input, stochD_Period, stochK_Period, wVF_Period);
        }

        /// <summary>
        /// Willium Vix Fix -- Of tuple
        /// </summary>
        /// <returns></returns>
        public Indicator.WVF WVF(Data.IDataSeries input, int stochD_Period, int stochK_Period, int wVF_Period)
        {
            if (InInitialize && input == null)
                throw new ArgumentException("You only can access an indicator with the default input/bar series from within the 'Initialize()' method");

            return _indicator.WVF(input, stochD_Period, stochK_Period, wVF_Period);
        }
    }
}
#endregion

What are the details of the error?

[sumana.m]

Hi @koganam

Thanks for the participating in this discussion.
There is no syntactical error/logical just looking to filter out the trades get the marking in proper area. DrawOnBarPanel = true won't make any difference for now till in my end.

2nd part of the code could be getting last 30 bar's high and lows. (trying to work on it)
