Same Data Feed but different Bars/Bricks

[Uregon]

Good day,

I have 2 computers

on both run XAU/USD with the FXCM Datafeed on 100 Renko

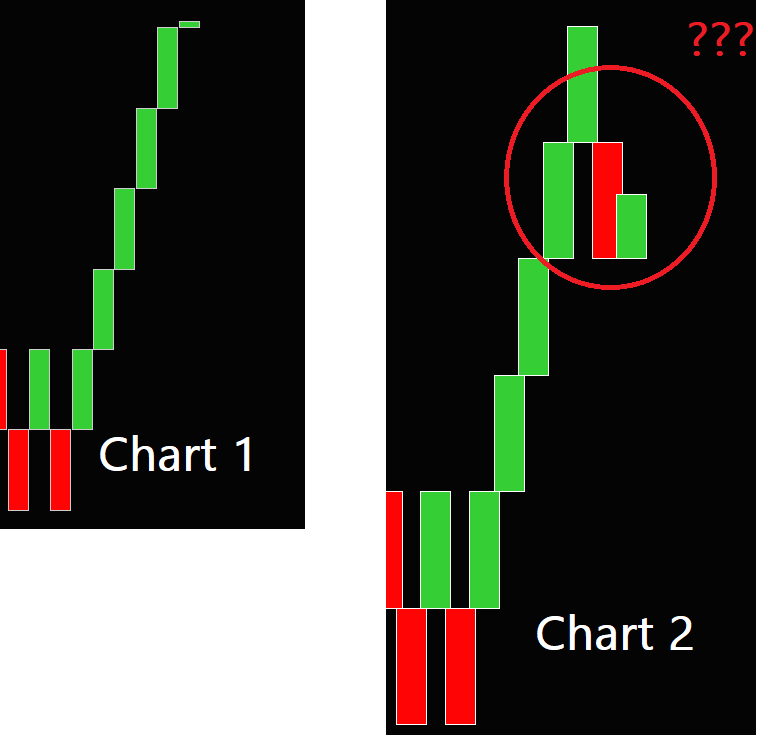

But both look different , why? how can I fix ?

[NinjaTrader_Clayton]

Hello Uregon,

Thank you for your message.

It’s not uncommon for charts, especially Tick-based charts, to appear slightly different after reloading historical data.

• When a chart is first loaded, it uses historical data up until the current time.
• From that point onward, real-time data is used to update the chart.
• However, when you reload, the real-time data is replaced by historical data, which can lead to subtle differences due to how the two data types are filtered and sent to the platform.

For a more detailed explanation of why this occurs, you can view our article here: [Link to Article]

To help ensure consistency between charts, I recommend syncing your PC’s clock with an official time server. Here’s how:

1. Shut down NinjaTrader.
2. Right-click the clock in the bottom-right corner of your desktop and select “Adjust date and time.”
3. For Windows 10, go to 'Date, Time, and Regional Formatting' > 'Additional date, time, and regional settings' > 'Set the time and date' > 'Internet Time' tab. Set the server to time.nist.gov and click “Update.”
4. For Windows 11, go to 'Sync Now' under Additional Settings. Enable your PC to set the time and time zone automatically if not already enabled.
5. Reopen NinjaTrader and right-click on the chart to "Reload All Historical Data."

Additionally, to align charts as closely as possible, ensure the following settings are the same across all windows:

• Instrument and contract
• Chart interval
• Days to load
• Trading hours template
• "Break EOD" is checked

Once these settings are consistent, right-click to reload the historical data. For time-based charts, this should help them line up, and tick-based charts should also be very close.

If you’re comparing charts from different data providers or platforms, slight differences are expected.

Please feel free to reach out if you need any further assistance.
