how to draw text on chart

[kmrsg7]

Dear Team,

i have two questions

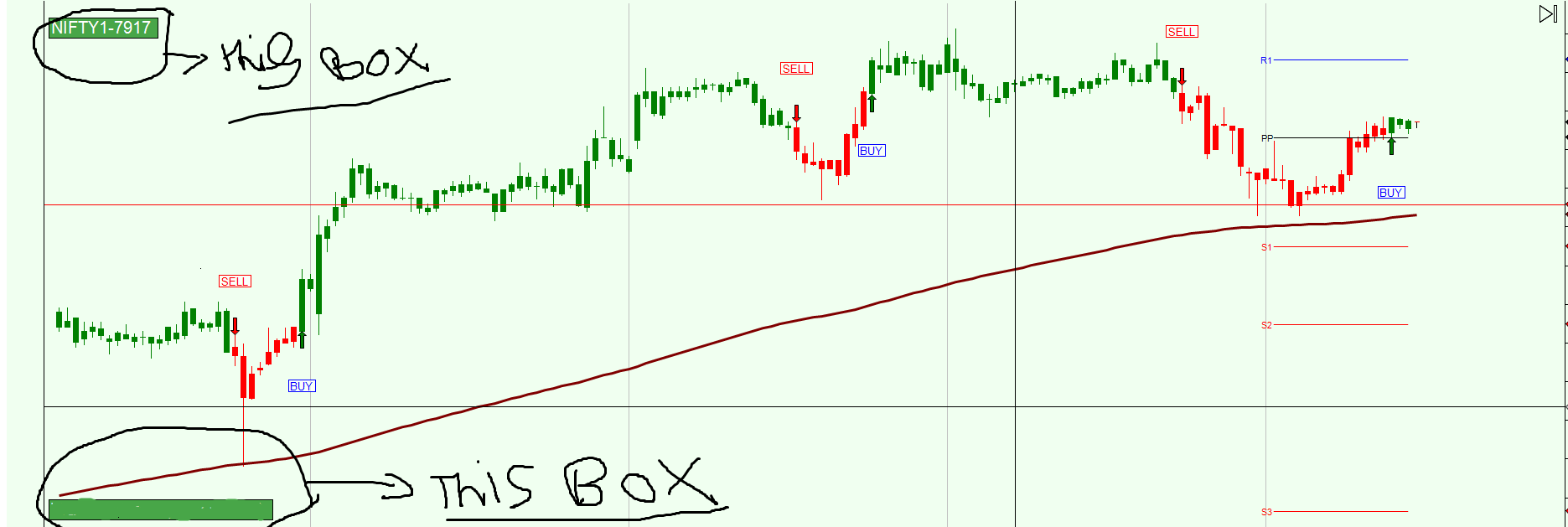

1.) I need the box as shown in reference image added.

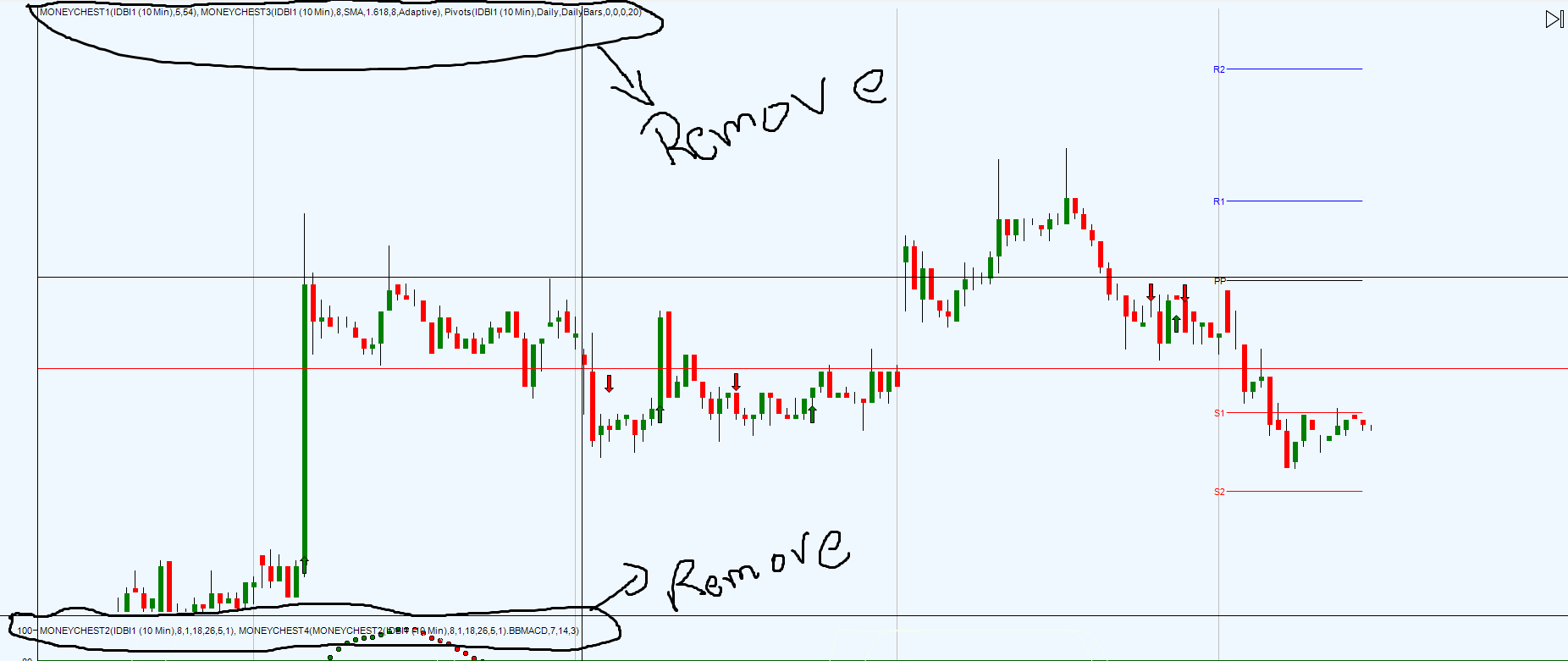

2) I need to remove the details of the indicators on the chart. reference images added

[NinjaTrader_PaulH]

Hello kmrsg7,

Thanks for your post.

The boxes shown were added by an indicator. If the indicator does not provide options in the indicator panel to change the text box location then you would need to alter the ninjascript code to relocate the boxes. Based on their location I am guessing that the Ninjascript method DrawTerxtFixed() was used, here is the helpguide to that method: http://ninjatrader.com/support/helpG...wtextfixed.htm

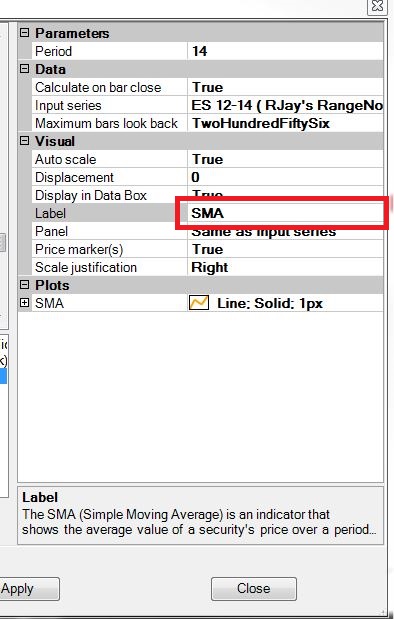

The text on the chart from the indicators can be suppressed. There are two choices, one clears all text, the other leaves just the indicator name: In the indicator panel, left click on the indicator in the lower left panel of interest, next find the row "Label" on the right side. (See attached picture for location) Leaving the Label field blank will remove the label from being displayed on the chart. Enclosing a label in quotations ("MyEMA" for example) will display what's within the quotations and exclude the system added trailing series information.
