Plotting histogram

[2Look4me]

I'm trying to plot a simple histogram, the difference of two moving averages.

Diff.Set(MA2[0] - MA3[0]);

if (Diff[0] > Diff[1] ) {
BullBar.Set(Diff[0]);
}
else if (Diff[0] < Diff[1]){
BearBar.Set(Diff[0]);
}

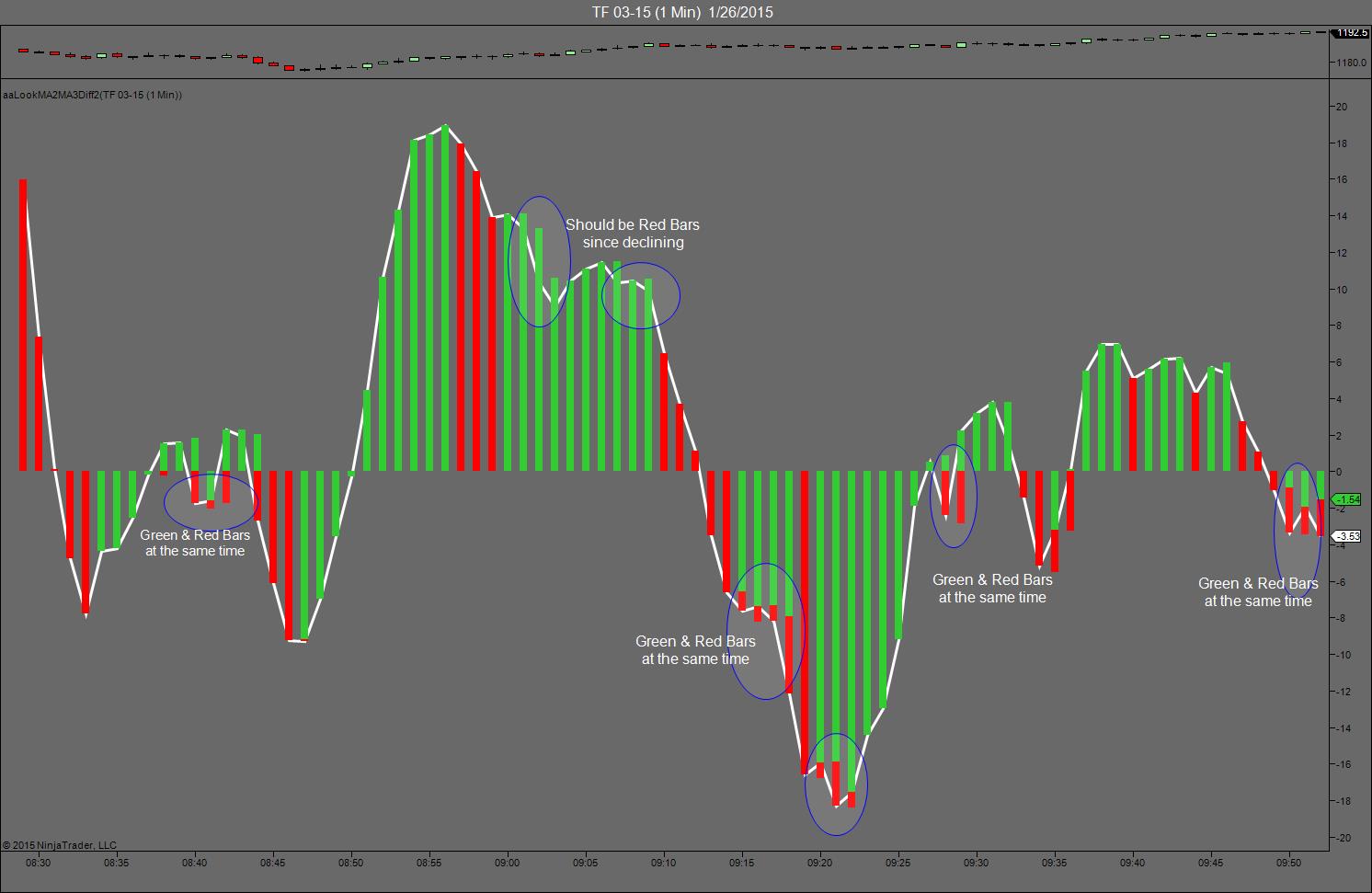

I need some help figuring out why I'm getting these problems (see attachment):
* Green & Red bars are plotted together
* Declining Red Bars and Rising Green Bars are not plotted consistently
* Once I refresh the chart, all these issues are gone until it reappears with new plots

Thanks in advance.

[NinjaTrader_PatrickH]

Hello 2Look4me,

Thank you for your post.

Try setting the opposite plot to zero:

Diff.Set(MA2[0] - MA3[0]);

if (Diff[0] > Diff[1] ) {
BullBar.Set(Diff[0]);
BearBar.Set(0);
}
else if (Diff[0] < Diff[1]){
BullBar.Set(0);
BearBar.Set(Diff[0]);
}

[2Look4me]

Thanks Patrick, I worked on that for hours, but it didn't cross my mind.

[Harry]

You just need a single plot and no additional DataSeries.

private Color upColor = Color.Lime;
private Color downColor = Color.Red;
Diff.Set(MA2[0] - MA3[0]);
if(Diff[0] > Diff[1])
   PlotColors[0][0] = upColor;
else if (Diff[0] < DIff[1])
   PlotColors[0][0] = downColor;
else
   PlotColors[0][0] = PlotColors[0][1];
