How to return value for indicator?

[cowcool]

I am developing my first DMI cross indicator , basically what it is supposed to do is to return value of 1 when DI Plus cross above di Minus and return value of -1 when Di Minus cross above Di Plus .

The weird thing is the indicator don't return +1 or -1 or even DIPlus, DIMinus or ADX value, it returns value that I have no idea at all of what it is ..

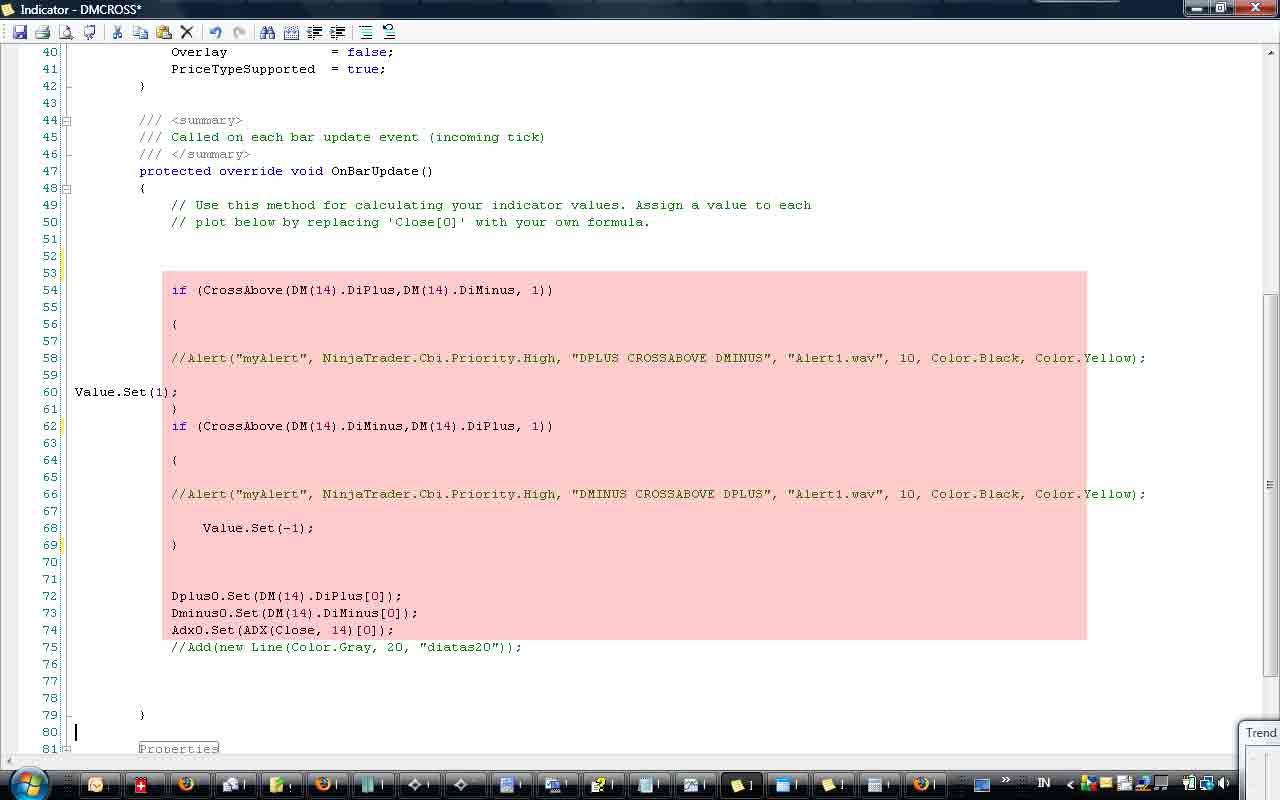

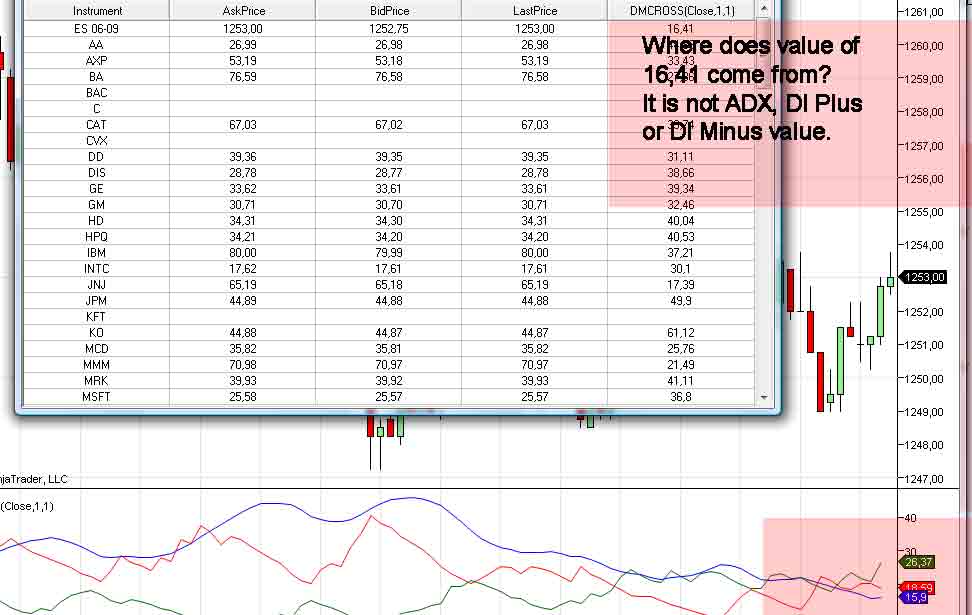

Here are some screen shots .... of my code and the value returned . I am pulling out my hair.. help ....

[NinjaTrader_Bertrand]

cowcool, please make sure the CalculateOnBarClose settings for your chart and Market Analyzer loaded indicators match - http://www.ninjatrader-support.com/H...BarClose1.html

Then recheck the values you get.

Another good practice is to work Print() statements in your code to check the calculated indicator / variable values - http://www.ninjatrader-support2.com/...ead.php?t=3418

Also, if you're new to coding in NinjaScript, those tutorials will be a good start - http://www.ninjatrader-support.com/H...verview18.html

[cowcool]

Done, Still experiencing the same result, what is command to return value for an indicator? I need this value to get showed on market analyzer ,

it is supposed to be Value.Set , correct?

cowcool, please make sure the CalculateOnBarClose settings for your chart and Market Analyzer loaded indicators match - http://www.ninjatrader-support.com/H...BarClose1.html

Then recheck the values you get.

Another good practice is to work Print() statements in your code to check the calculated indicator / variable values - http://www.ninjatrader-support2.com/...ead.php?t=3418

Also, if you're new to coding in NinjaScript, those tutorials will be a good start - http://www.ninjatrader-support.com/H...verview18.html

[NinjaTrader_Bertrand]

Yes, the Value or Values[0] is the primary indicator value dataseries - http://www.ninjatrader-support.com/H...AndValues.html

How many bars lookback to you use in the Market Analyzer?

http://www.ninjatrader-support.com/HelpGuideV6/Properties5.html

[cowcool]

14 bars ...


I even entered Value.Set(1) right after protected override void OnBarUpdate() but I still don't see value of 1 in market analyzer ...




protected override void OnBarUpdate()
{
// Use this method for calculating your indicator values. Assign a value to each
// plot below by replacing 'Close[0]' with your own formula.


Value.Set(1);

[NinjaTrader_Bertrand]

Please use a larger setting in the Market Analyzer lookback, so the values can align properly. This works for me displaying the value of 1 on the chart as well as in the Market Analyzer -


protected override void OnBarUpdate()
{
Value.Set(1);
}

Please post the full code you use so we can take a look.

[cowcool]

I found it, The indicator returns the ADX value . May I know why it returns ADX value . Thx

    protected override void Initialize()
        {

            CalculateOnBarClose = true;
            Add(new Plot(Color.FromKnownColor(KnownColor.DarkGreen), PlotStyle.Line, "Dplus0"));
            Add(new Plot(Color.FromKnownColor(KnownColor.Red), PlotStyle.Line, "Dminus0"));
            Add(new Plot(Color.FromKnownColor(KnownColor.Blue), PlotStyle.Line, "Adx0"));

            Add(new Line(Color.FromKnownColor(KnownColor.Black), 0, "Above20"));
            CalculateOnBarClose    = true;
            Overlay                = false;
            PriceTypeSupported    = true;
        }

        /// <summary>
        /// Called on each bar update event (incoming tick)
        /// </summary>
        protected override void OnBarUpdate()
        {
            // Use this method for calculating your indicator values. Assign a value to each
            // plot below by replacing 'Close[0]' with your own formula.


Value.Set(1);

            //Print(DM(14).DiPlus[0]);

            if (DM(14).DiPlus[0] > DM(14).DiMinus[0])


{

            //Alert("myAlert", NinjaTrader.Cbi.Priority.High, "DPLUS CROSSABOVE DMINUS", "Alert1.wav", 10, Color.Black, Color.Yellow);

Value.Set(1);
            }
            if (CrossAbove(DM(14).DiMinus,DM(14).DiPlus, 1))

            {

            //Alert("myAlert", NinjaTrader.Cbi.Priority.High, "DMINUS CROSSABOVE DPLUS", "Alert1.wav", 10, Color.Black, Color.Yellow);

                Value.Set(-1);
            }


            Dplus0.Set(DM(14).DiPlus[0]);
            Dminus0.Set(DM(14).DiMinus[0]);
            Adx0.Set(ADX(Close, 14)[0]);
            //Add(new Line(Color.Gray, 20, "diatas20"))

[NinjaTrader_Bertrand]

Because this is one of the three plots you have in your code...you can select which plot to display when loading the indicator in your Market Analyzer page. You need to check to which Values those Plots are 'linked; in the 'Properties' section in your code, I think you're into a conflict there because you assign two different values to Values[0], the primary indicator value.

[cowcool]

Thx pal ... here is the code , how to find the linked plot ?

Please note ADEX is not ADX , it's a parameter I created on wizard

#region Properties
        [Browsable(false)]    // this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]        // this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public DataSeries Dplus0
        {
            get { return Values[0]; }
        }

        [Browsable(false)]    // this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]        // this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public DataSeries Dminus0
        {
            get { return Values[1]; }
        }

        [Browsable(false)]    // this line prevents the data series from being displayed in the indicator properties dialog, do not remove
        [XmlIgnore()]        // this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
        public DataSeries Adx0
        {
            get { return Values[2]; }
        }

        [Description("")]
        [Category("Parameters")]
        public int ADEX
        {
            get { return aDEX; }
            set { aDEX = Math.Max(1, value); }
        }

        [Description("")]
        [Category("Parameters")]
        public int PERIOD
        {
            get { return pERIOD; }
            set { pERIOD = Math.Max(1, value); }
        }
        #endregion
    }
}

Because this is one of the three plots you have in your code...you can select which plot to display when loading the indicator in your Market Analyzer page. You need to check to which Values those Plots are 'linked; in the 'Properties' section in your code, I think you're into a conflict there because you assign two different values to Values[0], the primary indicator value.

[NinjaTrader_Bertrand]

You can see the Dplus0 being 'linked' to the Value or Values[0] dataseries

public DataSeries Dplus0
        {
            get { return Values[0]; }
        }

I would perhaps just start with a simple version of your indicator doing one plot for your DI+ / DI- crossover condition.
