Offset of zero line for bar oscilator

[user1986]

Hello,

I am creating an oscilator based on other oscilator. I want to overlay a bar plot on top of the original line oscilator, so that it shows a status (the bars possible values are either 0,1,-1).

Since the oscilator ranges 0-100 with signals generated from crosses around 50, I want the 0 value of the bars to match the 50 value of the line plot. Is this possible?

Is there any other option to do this?

[NinjaTrader_Jesse]

Hello,

If these are both being plotted from the same indicator, the axis used would be shared for the plots. Unfortunately there would not be a way to offset the value of a plot just visually as the visual is a direct representation of the data.

I believe you would need to instead use 0, 50 and 100 for the values of the indicator that is currently -1, 0, 1.

If these are two separate indicators, you may be able to overlay them in the same panel to achieve a similar effect.

I look forward to being of further assistance.

[user1986]

Thanks Jesee,

The issue of using 0,50,100 instead of -1,0,1 is that it will not look simetrical around the centerline. I was trying to get the bars up and down like the MACD, with an overlaying line indicator.

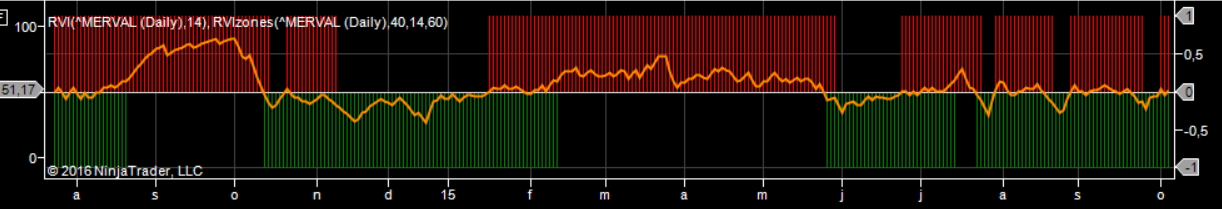

I am attaching a pic of what I am trying to accomplish... but that is done with 2 indicators put one on top of the other and the scales are not connected in this way. The bars are actually two values , one that can be 0 or 1 and another one 0 or -1.

Could this be done by shading the area in some way behind the line oscilator?

[NinjaTrader_AlanP]

Hello User1986,

To accomplish what you have displayed in your attachment you could build a strategy which plots two other indicators in the same panel, setting the Scale Justification to Left for 1 indicator and to the right for the other indicator. Since the mid-point of both indicators would fall in the middle, 0 should match 50.

I’ve demonstrated an example below using a Simple Moving Average but you’d replace SMA with the names and parameters of your indicators.

else if (State == State.Configure)
{
AddChartIndicator(SMA(10));
SMA(10).Panel=2;
SMA(10).ScaleJustification = ScaleJustification.Left;
AddChartIndicator(SMA(20));
SMA(20).Panel=2;
SMA(20).ScaleJustification = ScaleJustification.Right ;
}

You could use Custom Plotting to draw the plot you want. You can find information on custom plotting under Tools > Edit NinjaScript > Indicator > CustomPlotSample.

Please let us know if you have any questions.
