Outline Color DrawArrowUp and DrawTriangleUp or down

[cnecorp]

How do I change the outline color of the arrows and triangles generated by DrawArrowUp, DrawArrowDown and the DrawTriangle equivalents in code.

The methods only allow me to control the color of the object but when it draws on the chart it has a blue outline (i.e if I use transparent I still see a blue outline arrow)

Thanks

[NinjaTrader_AdamP]

Cnecorp,

Unfortunately this is currently not supported with the arrows. With the triangle, please try the following :

DrawTriangle(string tag, bool autoScale, int anchor1BarsAgo, double anchor1Y, int anchor2BarsAgo, double anchor2Y, int anchor3BarsAgo, double anchor3Y, Color color, Color areaColor, int areaOpacity)

http://www.ninjatrader.com/support/helpGuides/nt7/index.html?drawtriangle.htm

Please let me know if I may assist further.

[cnecorp]

Hi Adam

Suspect I did not explain it properly, the method you pointed me to did not help,
tried it already.

I am not trying to put an outline on the triangle painted by the DrawTriangleUp/Down Method. Rather, I am trying to get rid of it.

The marker drawn is automatically outlined blue, questions are:

1. Is this the default?
2. Can I change it e.g. to transparent?

Thanks for your help.

[NinjaTrader_AdamP]

cnecorp,

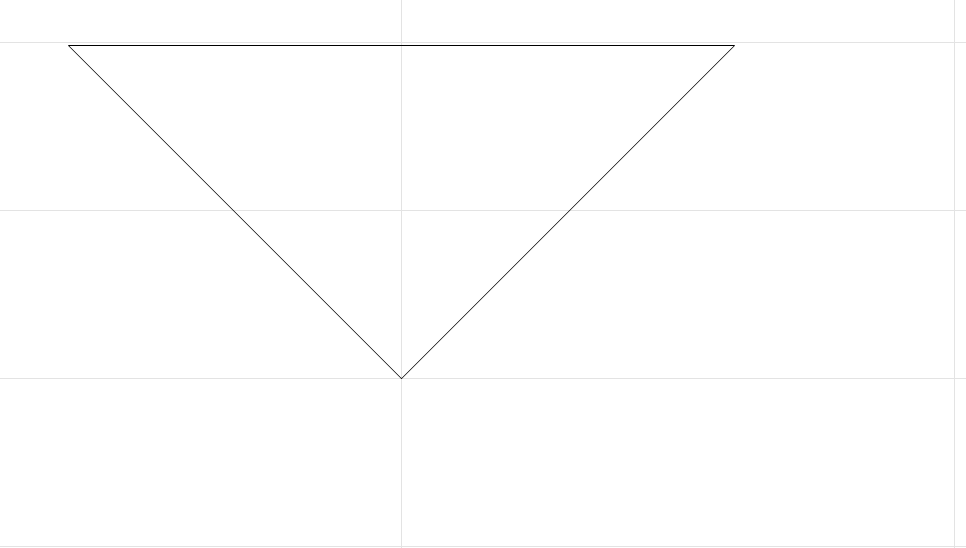

The draw triangle up and draw triangle down methods call DrawTriangle(), which has the ability to set both the fill color and the outline color. What I am seeing is the attached when I set to transparent color using DrawTriangleDown().

Do you perhaps have a screen shot, or can you take one, of the behavior you are wanting to change?

[cnecorp]

Suspect this is going to be a "Feature".

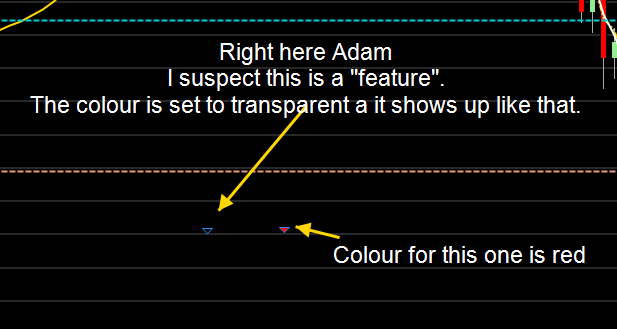

Attached is the screen capture of what is on the screen,
Outline only is the one with colour set to transparent
the other colour set to red

Thanks

[NinjaTrader_AdamP]

cnecorp,

This is a default, there is no way to change it in DrawTriangleUp or DrawTriangleDown. You can however use DrawTriangle() to do this, and specify your own triangle objects that are the same size, then change the colors to whatever you want.

Please let me know if I may assist further.
