DrawRectangle

[m. takachi]

Hi,
I tried to do the following and realized it only worked for DrawRegion function (plotted historically) but not for DrawRectangle and DrawLine function (only current high/low was plotted) .What if I'd lke to plot the high and low by using DrawRectangle and DrawLine? Advice needed. Thanks!

if (Bars == null)
return;
if (!Data.BarsType.GetInstance(Bars.Period.Id).IsIntr aday )
return;
if (Bars.Period.Id == PeriodType.Minute && Bars.Period.Value > minutes/2)
return;

if(!isLoaded && !isInit)
{
isInit = true;
hourlyBars= Data.Bars.GetBars(Bars.Instrument, new Period(PeriodType.Minute, minutes, MarketDataType.Last), Bars.From, Bars.To, (Session) Bars.Session.Clone(), Data.Bars.SplitAdjust,
Data.Bars.DividendAdjust);
existsHistHourlyData = (hourlyBars.Count <= 1) ? false : true;
isInit = false;
isLoaded = true;
}

IBar hourlyBar;
if (CurrentBar == 0) return;
if (existsHistHourlyData)
{

DateTime intradayBarTime01 = Time[0].AddMinutes(-minutes);
hourlyBar = hourlyBars.Get(hourlyBars.GetBar(intradayBarTime01 ));
h01.Set (hourlyBar.High);
l01.Set (hourlyBar.Low);

DrawRegion ("a", CurrentBar, 0, h01, l01, Color.Transparent, Color.PowderBlue , 5);

DrawRectangle("b", false, CurrentBar, h01[0], 0, l01[0], Color.Lime, Color.Transparent, 0);

DrawLine ("c", false, CurrentBar, h01[0], 0, h01[0], Color.Khaki, DashStyle.Dot, 5);

}

[NinjaTrader_Brett]

Hello,

Please check your parameters for DrawLine() I can see off hand that these are off it looks like.

http://www.ninjatrader.com/support/helpGuides/nt7/index.html

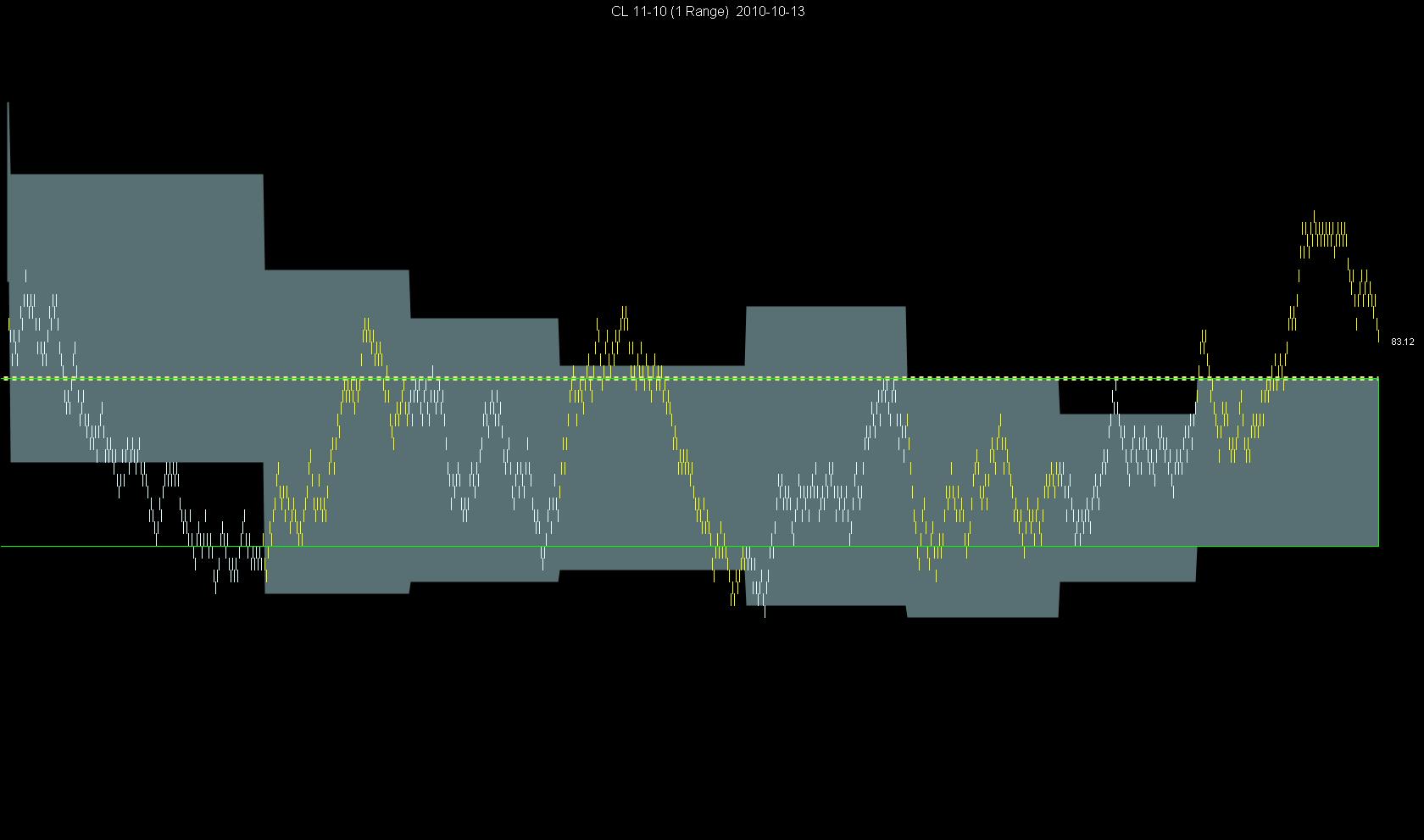

For example parameter number 3 is set to CurrentBar. This would start this drawing at this bar. You can see there is a green line at the ind of your screenshot horizonal. This is the left and right side of the box as it is drawing on the bar only.

Let me know if I can be of further assistance.
