    Cumulative Delta OnEachTick

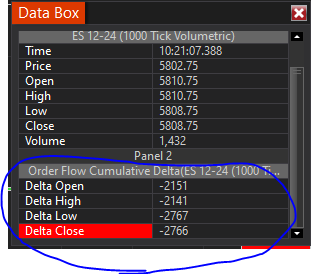

    When you use the ninjatrader Order Flow Cumulative Delta indicator, you get a bar chart that shows the open, close, high, & low values of the cumulative data. See below pic

    Click image for larger version

Name:	image.png
Views:	71
Size:	17.4 KB
ID:	1320431

    If I want to access the current cumulative delta on each tick as part of my strategy, how would I go about doing that? I tried using barsType.Volumes[CurrentBar].CumulativeDelta and set my strategy to Calculate.OnEachTick but, when i print the Cumulative Delta, it only prints on close of the bar instead of on each Tick. I am looking to get the current cumulative delta value on each tick along with previous bar's cumulative delta (high, low, open, and close values)

    HTML Code:
    #region Using declarations
    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.ComponentModel.DataAnnotations;
    using System.Linq;
    using System.Text;
    using System.Threading.Tasks;
    using System.Windows;
    using System.Windows.Input;
    using System.Windows.Media;
    using System.Xml.Serialization;
    using NinjaTrader.Cbi;
    using NinjaTrader.Gui;
    using NinjaTrader.Gui.Chart;
    using NinjaTrader.Gui.SuperDom;
    using NinjaTrader.Gui.Tools;
    using NinjaTrader.Data;
    using NinjaTrader.NinjaScript;
    using NinjaTrader.Core.FloatingPoint;
    using NinjaTrader.NinjaScript.Indicators;
    using NinjaTrader.NinjaScript.DrawingTools;
    #endregion

    //This namespace holds Strategies in this folder and is required. Do not change it.
    namespace NinjaTrader.NinjaScript.Strategies
    {
        public class CumulativeDeltaStrat : Strategy
        {
            private double CurrentCumDelta;

            protected override void OnStateChange()
            {
                if (State == State.SetDefaults)
                {
                    Description                                    = @"Enter the description for your new custom Strategy here.";
                    Name                                        = "CumulativeDeltaStrat";
                    Calculate                                    = Calculate.OnEachTick;
                    EntriesPerDirection                            = 1;
                    EntryHandling                                = EntryHandling.AllEntries;
                    IsExitOnSessionCloseStrategy                = true;
                    ExitOnSessionCloseSeconds                    = 30;
                    IsFillLimitOnTouch                            = false;
                    MaximumBarsLookBack                            = MaximumBarsLookBack.TwoHundredFiftySix;
                    OrderFillResolution                            = OrderFillResolution.Standard;
                    Slippage                                    = 0;
                    StartBehavior                                = StartBehavior.WaitUntilFlat;
                    TimeInForce                                    = TimeInForce.Gtc;
                    TraceOrders                                    = false;
                    RealtimeErrorHandling                        = RealtimeErrorHandling.StopCancelClose;
                    StopTargetHandling                            = StopTargetHandling.PerEntryExecution;
                    BarsRequiredToTrade                            = 20;
                    // Disable this property for performance gains in Strategy Analyzer optimizations
                    // See the Help Guide for additional information
                    IsInstantiatedOnEachOptimizationIteration    = true;
                }
                else if (State == State.Configure)
                {
                }
            }

            protected override void OnBarUpdate()
            {
                if(CurrentBar < BarsRequiredToTrade)
                    return;

                NinjaTrader.NinjaScript.BarsTypes.VolumetricBarsType barsType = Bars.BarsSeries.BarsType as
                   NinjaTrader.NinjaScript.BarsTypes.VolumetricBarsType;

                CurrentCumDelta = barsType.Volumes[CurrentBar].CumulativeDelta;
                Print(Time[0].ToString() + "Cum Delte: " + CurrentCumDelta);


            }
        }
    }

    ​

    #2
    Use Calculate on FirstTickOfBar for Bar Cumulative Delta.

    Comment


      #3
      Hello algospoke,

      The Order Flow Cumulative Delta requires adding a 1 tick series, and updating the indicator each time the 1 tick series updates.

      The help guide provides sample code of how to use this indicator.
      Chelsea B.NinjaTrader Customer Service
