custom indicator values in Analyzer differ

[solondon]

Hi

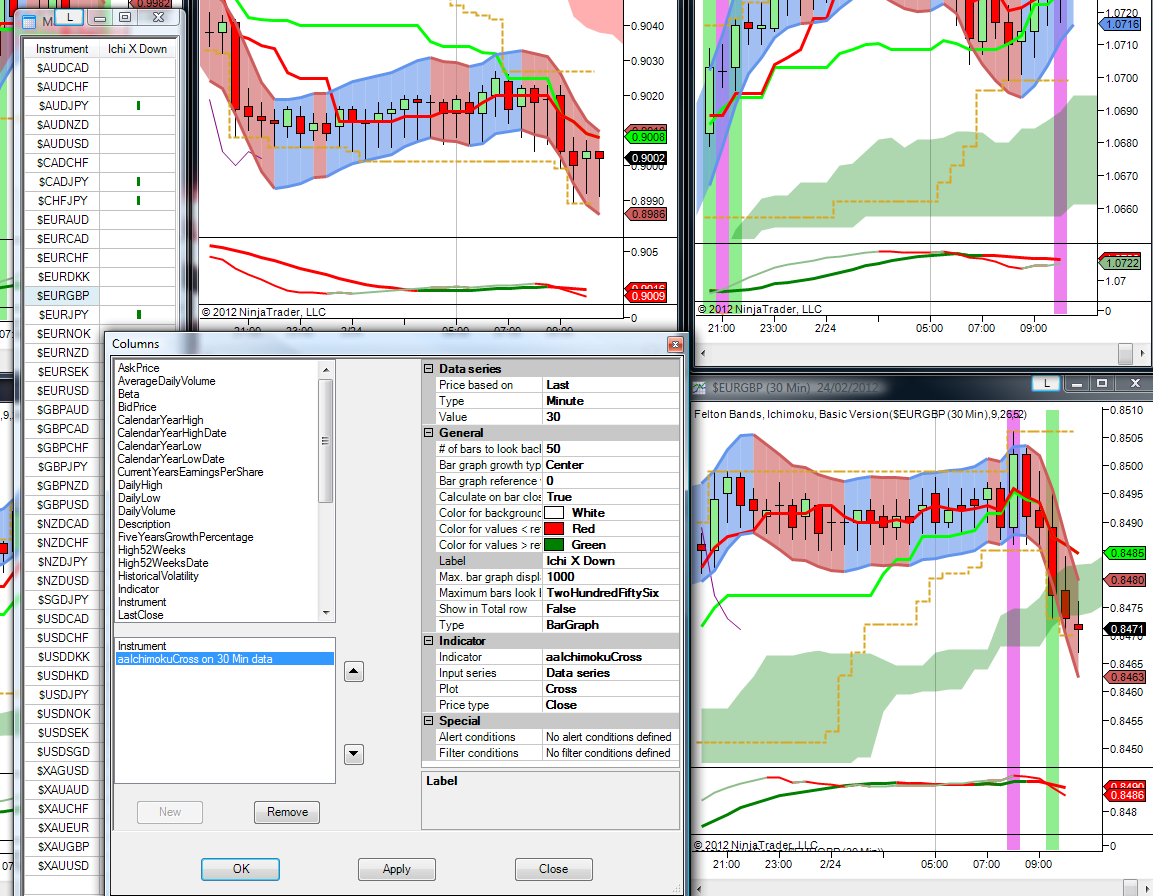

my custom indicator cross over values either dont show or show incorrectly in analyzer for the same time frame, hope you can help. Image of EURGBP shows the cross overs from indicator and column definition yet no signals in analyzer on the right. the code is simply

#region Using declarations
using System;
using System.ComponentModel;
using System.Diagnostics;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Xml.Serialization;
using NinjaTrader.Cbi;
using NinjaTrader.Data;
using NinjaTrader.Gui.Chart;
#endregion

// This namespace holds all indicators and is required. Do not change it.
namespace NinjaTrader.Indicator
{
/// <summary>
/// Ichimoku Crosses
/// </summary>
[Description("Ichimoku Crosses")]
public class aaIchimokuCross : Indicator
{
#region Variables
// Wizard generated variables
// User defined variables (add any user defined variables below)


#endregion

/// <summary>
/// This method is used to configure the indicator and is called once before any bar data is loaded.
/// </summary>
protected override void Initialize()
{
Overlay = false;
DisplayInDataBox = true;
Add(new Plot(Color.FromKnownColor(KnownColor.Violet), PlotStyle.Line, "Cross"));
}

/// <summary>
/// Called on each bar update event (incoming tick)
/// </summary>
protected override void OnBarUpdate()
{
// Condition set 1
if (CrossAbove(IchimokuBasic(9, 26, 52).TenkanSen, IchimokuBasic(9, 26, 52).KijunSen, 1))
{
BackColorAll = Color.LightGreen;
Cross.Set(1);
// DrawTriangleUp("My triangle up" + CurrentBar, false, 0, 0, Color.Lime);
}

// Condition set 2
if (CrossBelow(IchimokuBasic(9, 26, 52).TenkanSen, IchimokuBasic(9, 26, 52).KijunSen, 1))
{
BackColorAll = Color.Violet;
// DrawArrowDown("My down arrow" + CurrentBar, false, 0, 0, Color.Red);
Cross.Set(-1);
}
}

#region Properties

[Browsable(false)] // this line prevents the data series from being displayed in the indicator properties dialog, do not remove
[XmlIgnore()] // this line ensures that the indicator can be saved/recovered as part of a chart template, do not remove
public DataSeries Cross
{
get { return Values[0]; }
}

#endregion
}
}

the indicator plots correctly on the chart

Thanks in advance
Juan

[NinjaTrader_Bertrand]

Juan, can you please ensure the session templates are identical for the Chart / Market Analyzer and also please try with a higher bars back setting, for the chart you likely have more than 50 bars loaded, yet this is what you do on the MarketAnalyzer.

Also, please check the CalculateOnBarClose setting is the same for chart vs Market Analyzer.

[solondon]

Hi Bertrand

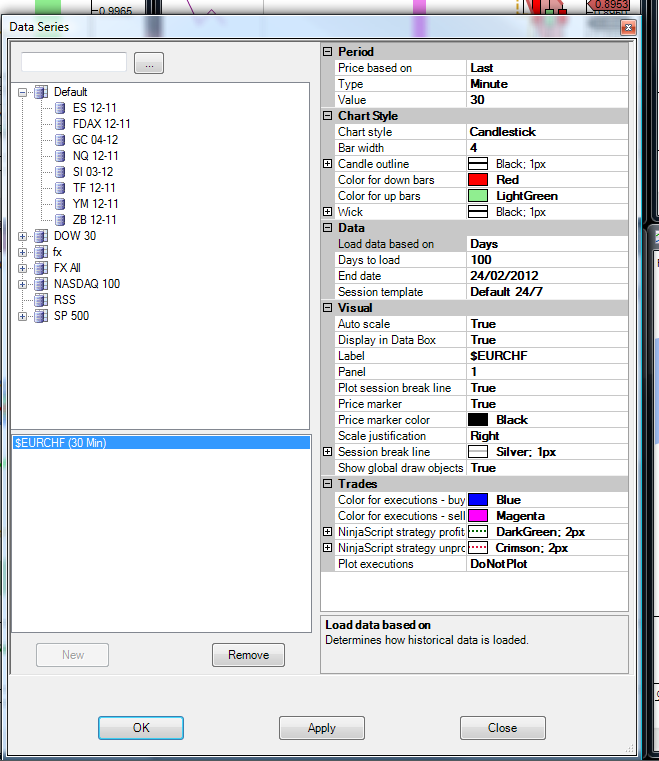

I cant see a Session template in the column definition section, the indicator is Default 24/7 . Enlarging the lookback period doesnt show the latest signals either which is what i would expect if ninja looks from the last bar backwards which is what i would expect, if you can confirm this is how it works?. attached screenshot from data series for EURUSD. The calculate on bar close is set to false on both. Any further ideas?

many thanks
Juan

[NinjaTrader_Bertrand]

Yes, the session template can be set in the MA as well, but not per column but for the full MA, so right click in the MA sheet and set it as needed in it's properties and then recheck. The larger lookback would be needed, it would work from the left most bar to the current one and not the other way - so you would still see current signals on the current most bar being evaluated with CalculateOnBarClose = true.

[solondon]

hi

have set the ma to 980 bars lookback default 24/7 session template, my chart displays 10 days in 30 min increments. still doesnt work shows none for some instruments and incorrect entries for others. Cant beleive a simple cross over can be this complicated, any other thoughts?

thanks
juan

[NinjaTrader_Bertrand]

Hi Juan, if you for example compare the indicator values directly for the MA vs Chart - let's say for a SMA would those match up as you expect?

If possible, you can email me as well directly under support at ninjatrader dot com and attach the setup that you use, I will then give this a run to compare on our end.
